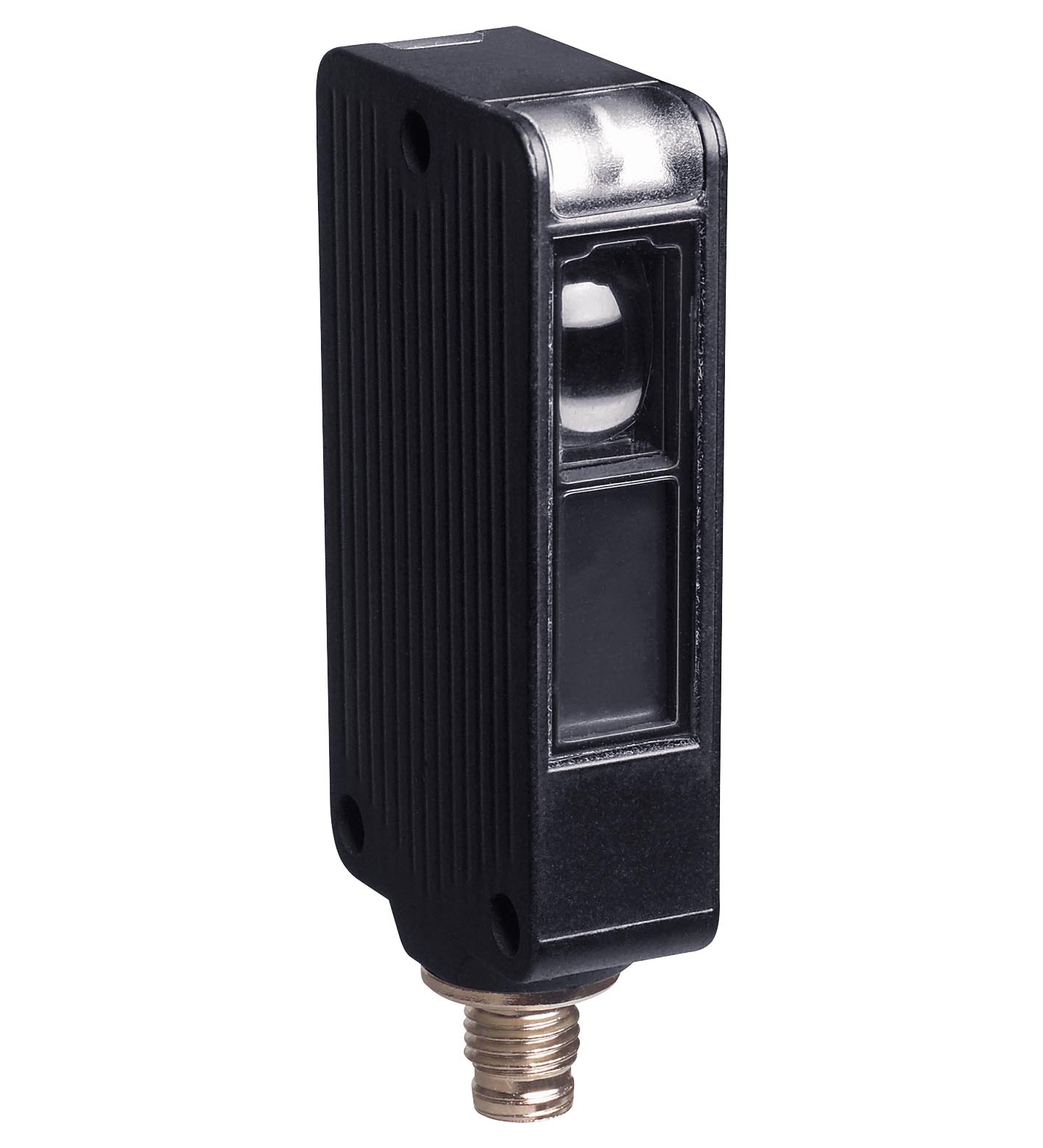

MLV41-54-G/25/95/136

Retroreflective sensor. Robust retroreflective sensor for glass detection, compact housing design, 5.2 m detection range, red light, light on, 2 push-pull outputs, M8 plug, Rugged series in corrosion-...

Retroreflective sensor. Robust retroreflective sensor for glass detection, compact housing design, 5.2 m detection range, red light, light on, 2 push-pull outputs, M8 plug, Rugged series in corrosion-resistant metal housing, Reliable recognition of reflective objects and clear glass, Two machines in one: clear object detection or reflection operating mode with long range, Teach-in switch for setting the contrast detection levels, Automatic adjustment in case of soiling in contrast detection mode. Effective detection range: 0 ... 4 m in TEACH mode 0 ... 5.2 m at switch position "N". Reflector distance: 0 ... 4 m in TEACH mode 0 ... 5.2 m at switch position "N". Threshold detection range: 6.5 m. Reference target: H85-2 reflector. Light source: LED. Light type: modulated visible red light , 660 nm. Polarization filter: yes. Angle deviation: max. ± 1°. Diameter of the light spot: approx. 100 mm at detection range 4 m. Opening angle: 1.5 °. Ambient light limit: 40000 Lux. MTTFd: 900 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: 2 LEDs yellow for switching state, operating reserve, Teach-In and contrast detection mode. Control elements: 5-step switch for setting the contrast detection levels.. Contrast detection levels: 10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials adjustable due to Teach-In switch. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: max. 35 mA. Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure). CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Degree of protection: IP65. Connection: M8 x 1 connector, 4-pin. Material: . HousingAluminum , Delta-Seal coatedOptical faceglass paneConnectormetal: . Housing: Aluminum , Delta-Seal coated. Optical face: glass pane. Connector: metal. Mass: 50 g. Dimensions: . Height56.5 mmWidth31 mmDepth13.6 mm: . Height: 56.5 mm. Width: 31 mm. Depth: 13.6 mm

Brand	Pepperl Fuchs
Lifecycle status	active
