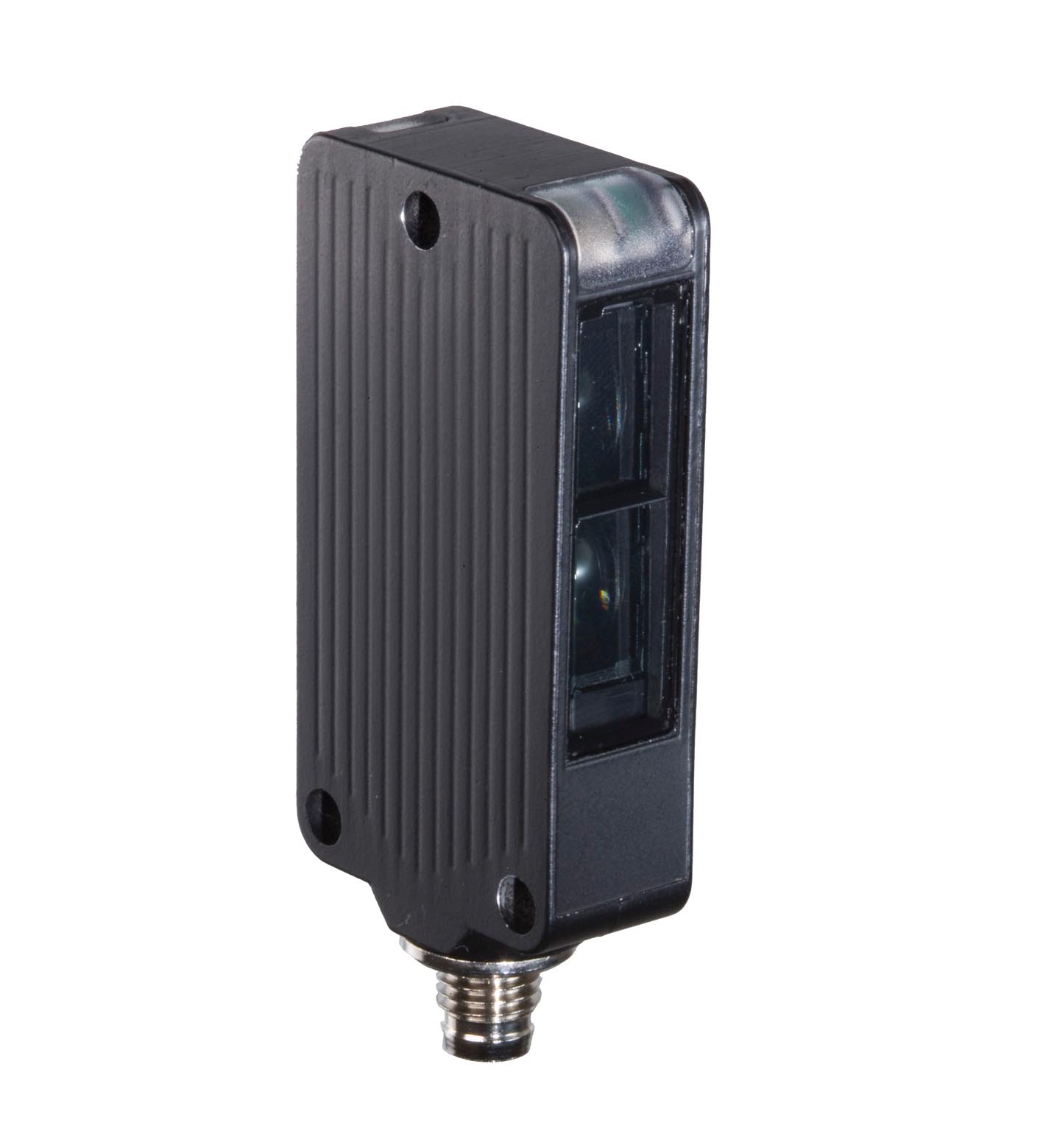

MLV41-55-IO/98/103

Retroreflective sensor. Robust retroreflective sensor with polarization filter, compact housing design, IO-Link interface, 7 m detection range, red light, dark on, PNP output, M8 plug, Rugged series i...

Retroreflective sensor. Robust retroreflective sensor with polarization filter, compact housing design, IO-Link interface, 7 m detection range, red light, dark on, PNP output, M8 plug, Rugged series in corrosion-resistant metal housing, IO-Link interface for service and process data, Extremely high switching frequency, Clear and functional display concept for the operating modes, Resistant against noise: reliable operation under all conditions. Effective detection range: 0 ... 7 m. Reflector distance: 0.1 ... 8 m. Threshold detection range: 10 m. Reference target: H85-2 reflector. Light source: LED. Light type: modulated visible red light , 625 nm. Polarization filter: yes. Angle deviation: max. ± 1.5 °. Diameter of the light spot: approx. 300 mm at detection range 8.5 m. Opening angle: 1.5 °. Optical face: frontal. Ambient light limit: 20000 Lux. MTTFd: 844 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) , IO link communication: green LED goes out briefly (1 Hz). Function indicator: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve. Control elements: none. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: max. 30 mA. Interface type: IO-Link. Protocol: IO-Link V1.0. Mode: COM2 (38.4 kBit/s). Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure). CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Degree of protection: IP65. Connection: M8 x 1 connector, 3-pin. Material: . HousingAluminum , Delta-Seal coatedOptical faceglass paneConnectormetal: . Housing: Aluminum , Delta-Seal coated. Optical face: glass pane. Connector: metal. Mass: 50 g. Dimensions: . Height56.5 mmWidth31 mmDepth13.6 mm: . Height: 56.5 mm. Width: 31 mm. Depth: 13.6 mm

Brand	Pepperl Fuchs
Lifecycle status	active
