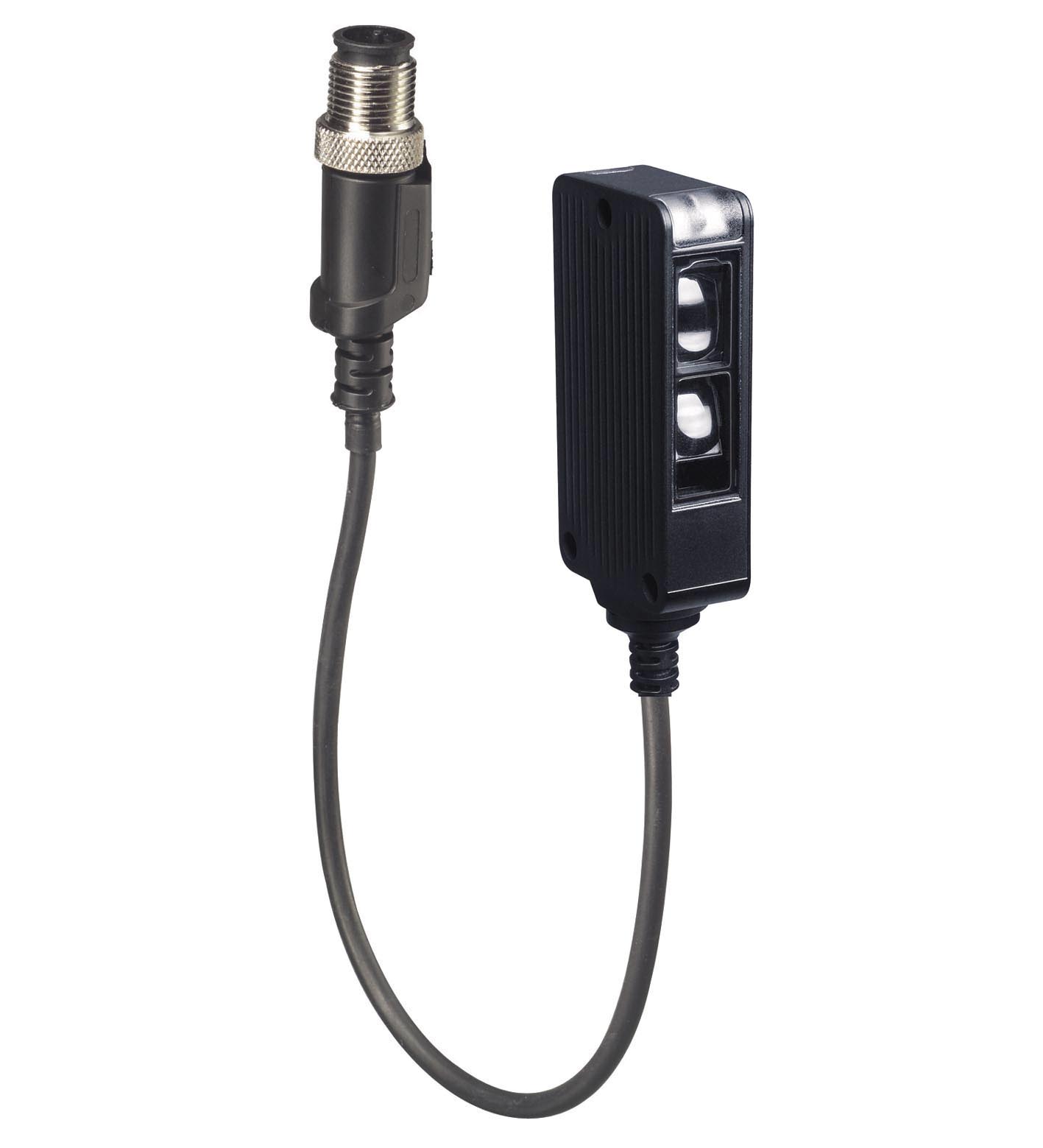

MLV41-8-H-RT-5036

Background suppression sensor. Background suppression sensor, Reliable detection of all surfaces, independent of color and structure, Minimal black-white difference, Precise background suppression, E...

Background suppression sensor. Background suppression sensor, Reliable detection of all surfaces, independent of color and structure, Minimal black-white difference, Precise background suppression, Extremely high switching frequency, Clearly visible function indicators. Detection range: 30 ... 320 mm fixed setting. Background suppression: + 10 % of the upper limit of the detection range. Light source: LED. Light type: modulated visible red light , 660 nm. Black-white difference (6 %/90 %): < 15 % at 320 mm. Diameter of the light spot: approx. 8 mm at sensor range 320 mm. Opening angle: 1.5 °. Ambient light limit: 40000 Lux. MTTFd: 1260 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: 2 LEDs yellowON: object inside the scanning rangeOFF: object outside the scanning range. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: max. 25 mA. Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. Protection class: II, rated voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 , functional insulation acc. to DIN EN 50178. UL approval: cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure). CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Degree of protection: IP65. Connection: fixed cable 300 mm with M12 connector, 4-pin. Material: . HousingAluminum , Delta-Seal coatedOptical faceglass pane: . Housing: Aluminum , Delta-Seal coated. Optical face: glass pane. Mass: 100 g. Dimensions: . Height56.5 mmWidth31 mmDepth13.6 mm: . Height: 56.5 mm. Width: 31 mm. Depth: 13.6 mm

Brand	Pepperl Fuchs
Lifecycle status	active
