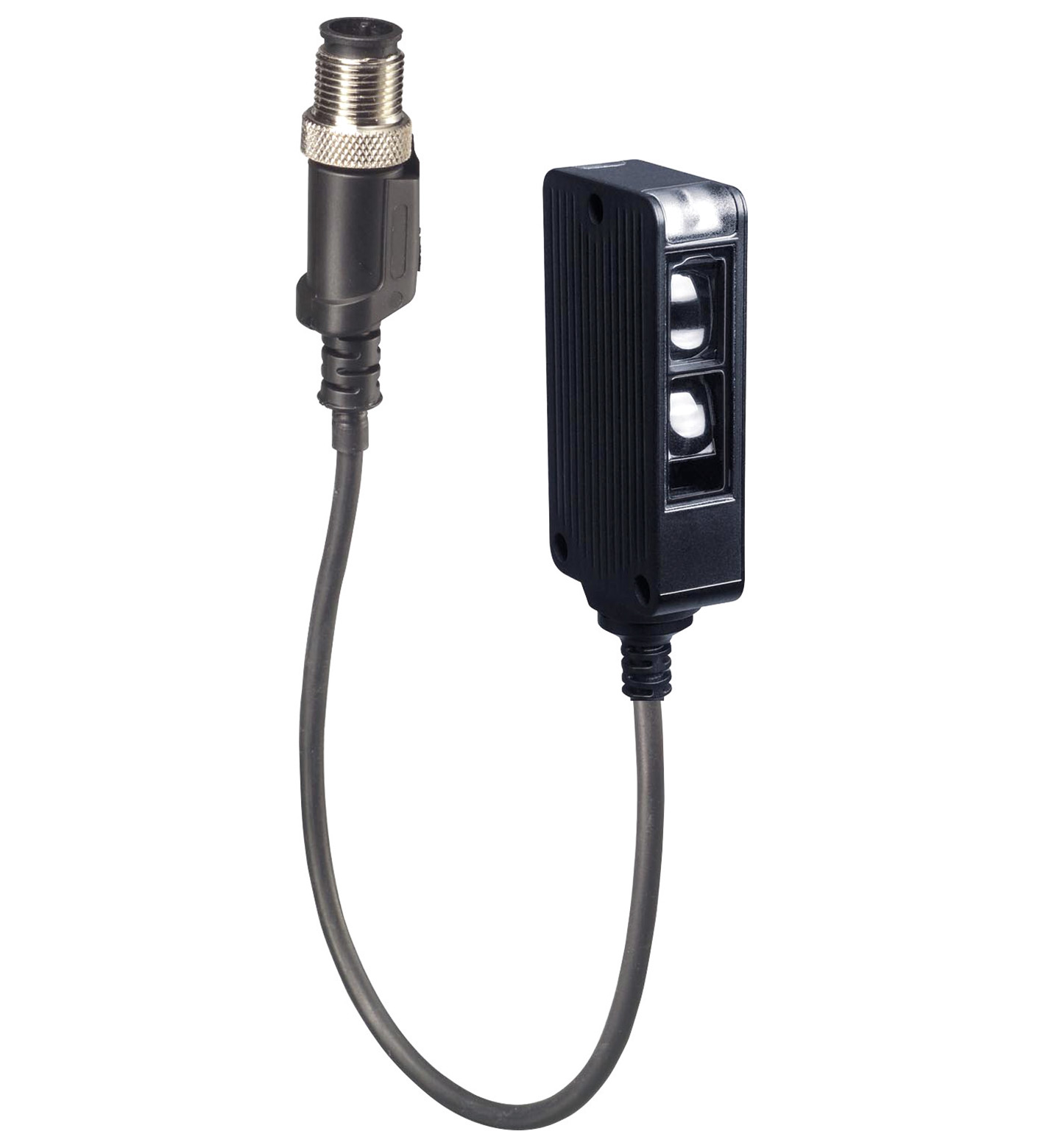

MLV41-8-H-RT-8827

Background suppression sensor. Triangulation sensor with background suppression, Safe object detection due to background suppression, Precise background suppression, Extremely high switching frequency...

Background suppression sensor. Triangulation sensor with background suppression, Safe object detection due to background suppression, Precise background suppression, Extremely high switching frequency, Clearly visible function indicators, Short circuit and low voltage indicator. Detection range: fixed setting ; 40 ... 345 mm ; -25 mm Tolerance. Background suppression: + 10 % of the upper limit of the detection range. Light source: LED. Light type: modulated visible red light , 660 nm. Black-white difference (6 %/90 %): < 25 % at 320 mm. Diameter of the light spot: approx. 8 mm at sensor range 320 mm. Opening angle: 1.5 °. Ambient light limit: 40000 Lux. MTTFd: 1260 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: 2 LEDs yellowON: object inside the scanning rangeOFF: object outside the scanning range. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: max. 25 mA. Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. Protection class: II, rated voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 , functional insulation acc. to DIN EN 50178. UL approval: cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure). CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Degree of protection: IP65. Connection: fixed cable 300 mm with M12 connector, 4-pin. Material: . HousingAluminum , Delta-Seal coatedOptical faceglass pane: . Housing: Aluminum , Delta-Seal coated. Optical face: glass pane. Mass: 100 g. Dimensions: . Height56.5 mmWidth31 mmDepth13.6 mm: . Height: 56.5 mm. Width: 31 mm. Depth: 13.6 mm

Brand	Pepperl Fuchs
Lifecycle status	active
