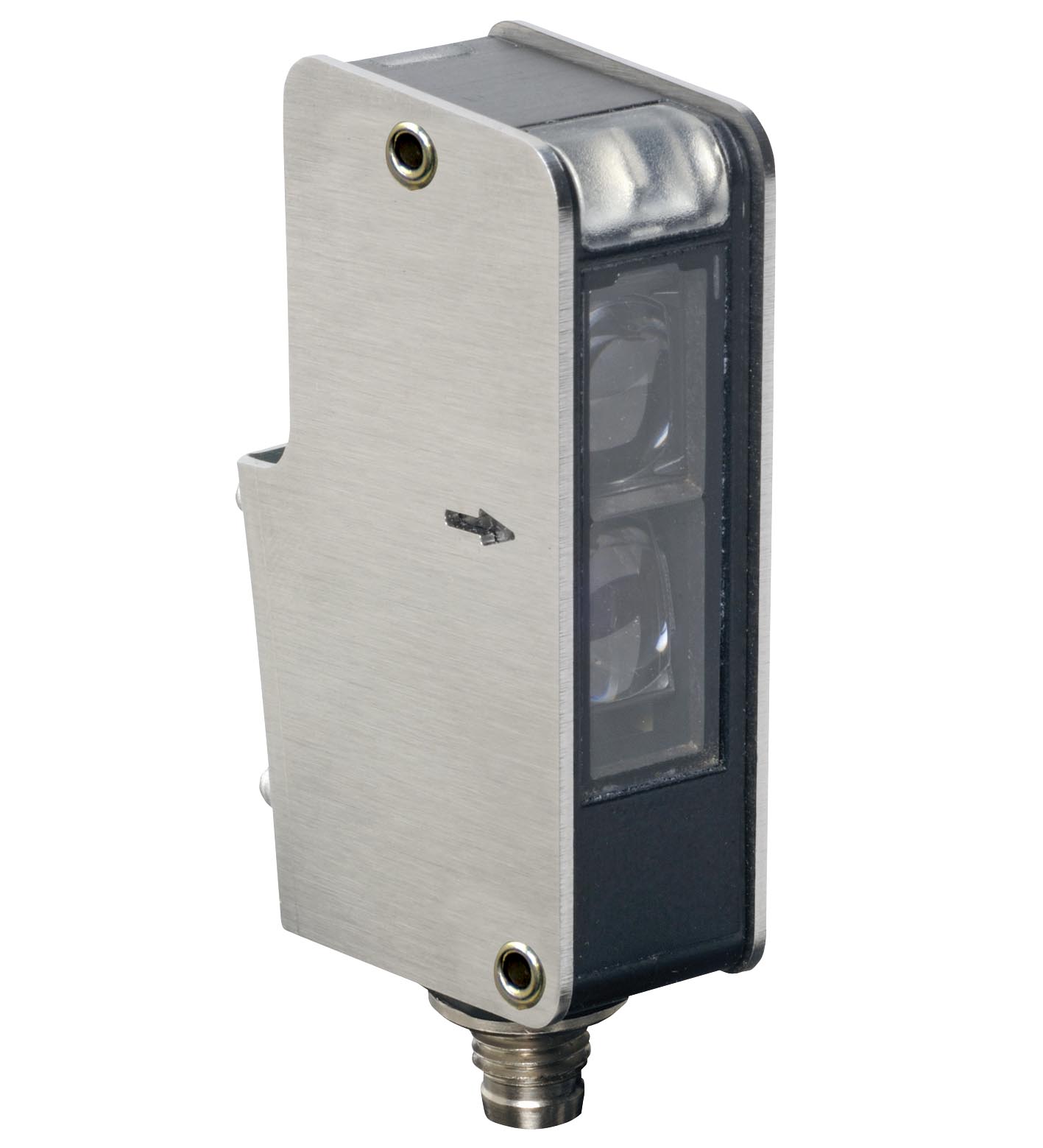

MLV41-8-HV-60-IR-5360
Background suppression sensor. Background suppression sensor, Special device for paper web break control and printing machinery, Sensing range 20 mm ... 60 mm, Light scanner with foreground suppressi...
Background suppression sensor. Background suppression sensor, Special device for paper web break control and printing machinery, Sensing range 20 mm ... 60 mm, Light scanner with foreground suppression 0 mm ... 15 mm and background suppression beyond 70 mm, Minimal black-white difference, Sturdy aluminum housing. Foreground suppression: 0 ... 15 mm. Detection range: on black (6 %): 20 ... 60 mm fixed setting. Detection range min.: 20 ... 60 mm. Detection range max.: 16 ... 70 mm. Background suppression: starts from 70 mm. Light source: IRED. Light type: modulated infrared light , 880 nm. Polarization filter: no. Black-white difference (6 %/90 %): < 1 % at 60 mm. Diameter of the light spot: max. 6 mm at a distance of 70 mm. Opening angle: approx. 4 °. Ambient light limit: 50000 Lux. MTTFd: 1260 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: 2 LEDs yellowON: object inside the scanning rangeOFF: object outside the scanning range. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: max. 25 mA. Control input: - When the input is open: Sensor operates- the output is reset on a positive edge- the output is set at high level when an object is located in the detection range- there is no sensor function at low level, the output signal is stored until the next positive edge. Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 250 Hz. Response time: 2 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure). CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 70 °C (32 ... 158 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Degree of protection: IP65. Connection: M8 x 1 connector, 4-pin. Material: . HousingAluminum , Delta-Seal coatedOptical faceglass paneConnectormetal: . Housing: Aluminum , Delta-Seal coated. Optical face: glass pane. Connector: metal. Mass: 50 g. Dimensions: . Height56.5 mmWidth31 mmDepth13.6 mm: . Height: 56.5 mm. Width: 31 mm. Depth: 13.6 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
