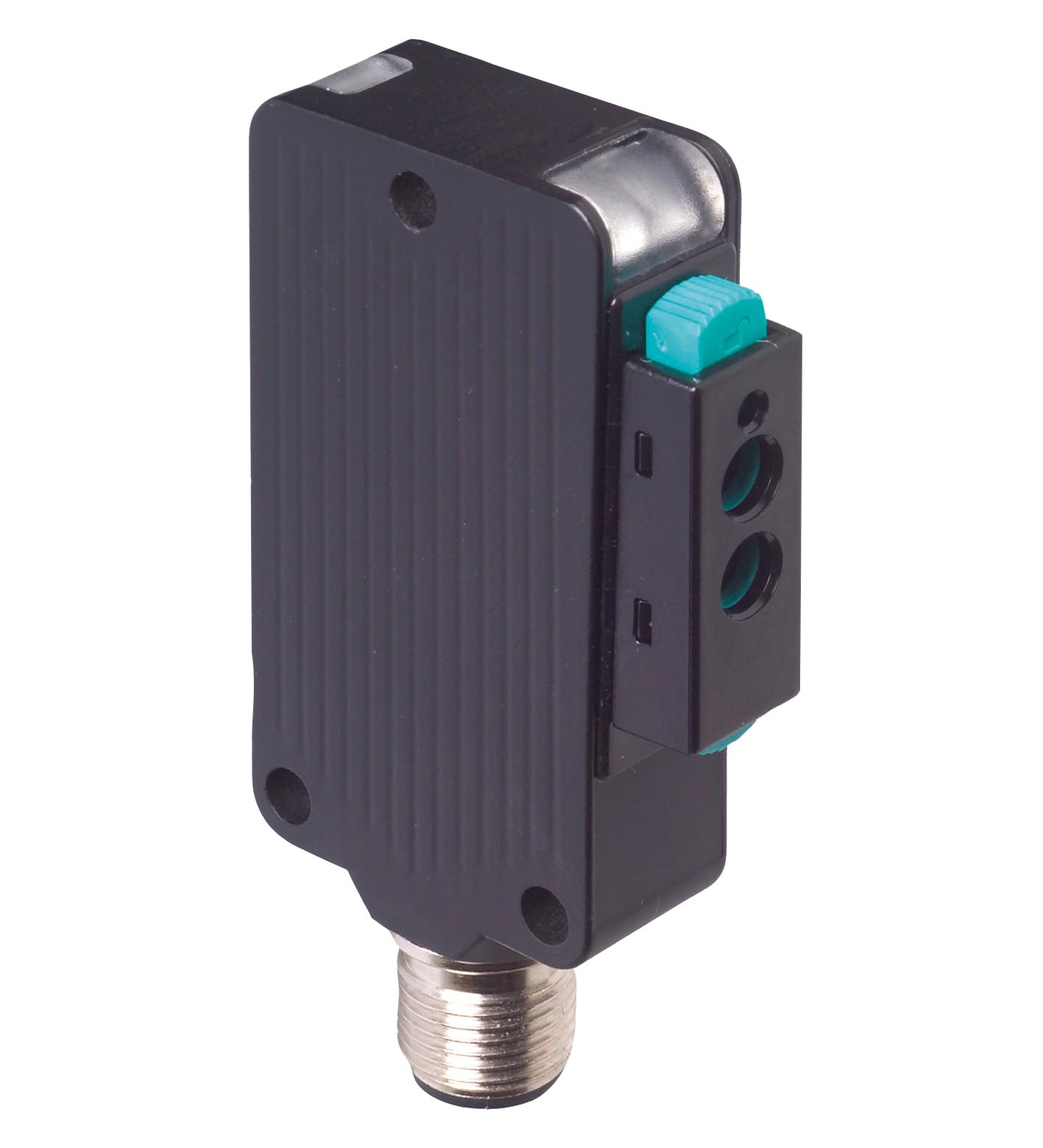

MLV41-LL-RT/92/136
Fiber optic sensor. Robust fiber optic sensor for glass fiber optics, red light, push-pull output, M12 plug, Robust fiber optic sensor for reliable operation under all conditions, Adjustable continuo...
Fiber optic sensor. Robust fiber optic sensor for glass fiber optics, red light, push-pull output, M12 plug, Robust fiber optic sensor for reliable operation under all conditions, Adjustable continuous sensitivity, Easy fiber optic installation with quick-action clamping lock, Aluminum housing with high-quality Delta Seal coating. Sensor range: on black (6 %): up to 36 mm on Kodak white, reflection factor 90% up to 120 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable. Adjustment range: 0 ... 120 mm on Kodak white, reflection factor 90%. Reference target: 100 mm x 100 mm on Kodak white, reflection factor 90%. Light source: LED. Light type: modulated visible red light , 660 nm. MTTFd: 770 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: LED yellow, lights up with receiver lit ; flashes when falling short of the operating reserve. Control elements: Sensitivity adjuster, light/dark switch. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: max. 40 mA. Switching type: light/dark on switchable The switching modes specified in the "Electrical Connection" section apply to L/D switches in the "D" position (dark switch). Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. Protection class: II, rated voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 functional insulation acc. to DIN EN 50178. UL approval: cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure). CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Fiber optic adapter: 04. Degree of protection: IP65. Connection: 4-pin, M12 x 1 connector. Material: . HousingAluminum , Delta-Seal coatedOptical faceFiber optic connectionConnectormetal: . Housing: Aluminum , Delta-Seal coated. Optical face: Fiber optic connection. Connector: metal. Mass: 50 g. Dimensions: . Height56.5 mmWidth31 mmDepth13.6 mm: . Height: 56.5 mm. Width: 31 mm. Depth: 13.6 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
