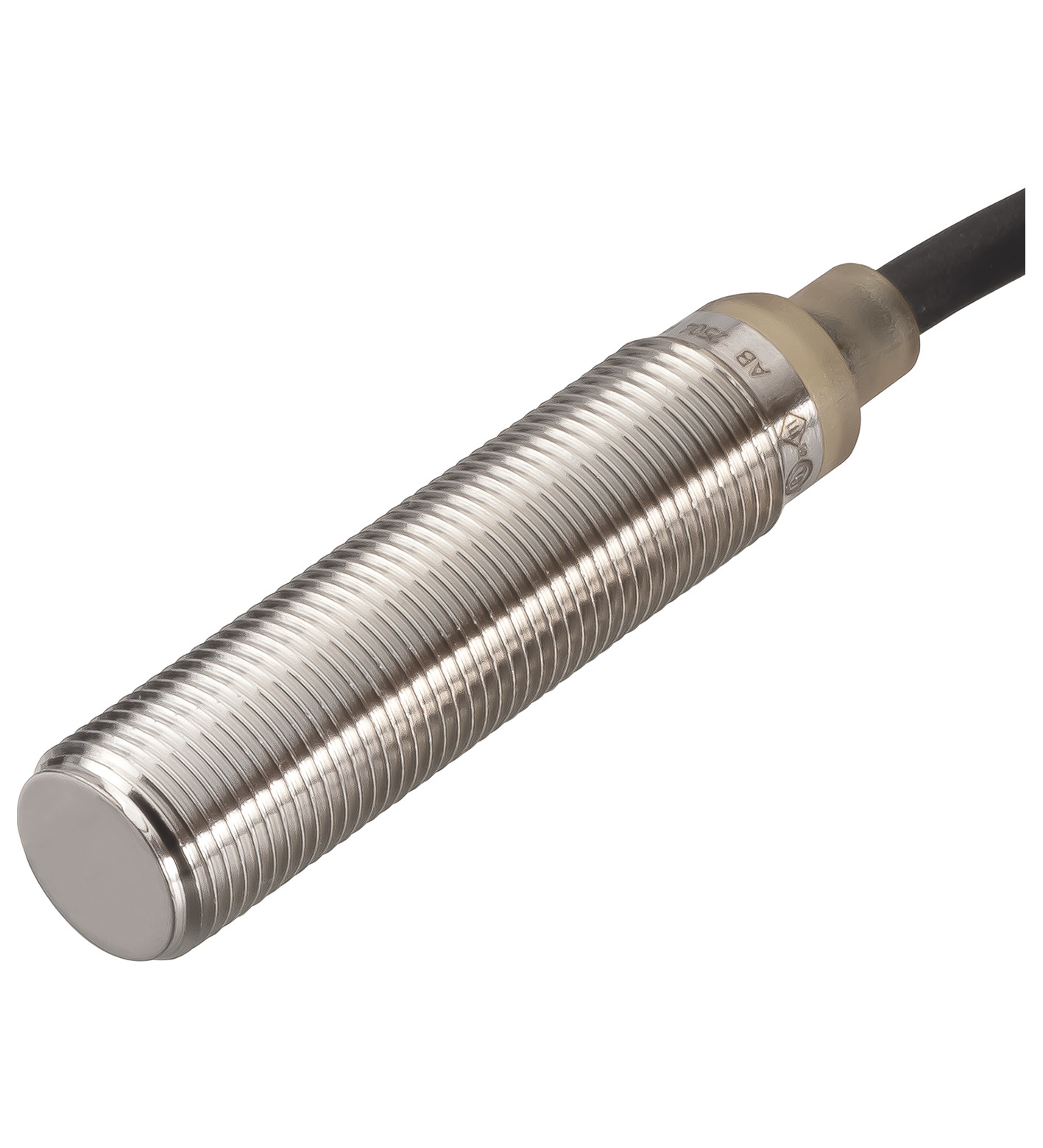

MMB60-12GH50-E2

Magnetic field sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush in non-magnetic metal, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction typ...

Magnetic field sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush in non-magnetic metal, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Threading: with, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 60 mm. Installation: flush in non-magnetic metal. Output polarity: DC. Actuating element: Magnet DM 60-31-15. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 5000 Hz. Hysteresis: 1 ... 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Operating current: ≤ 200 mA. Off-state current: max. 0.5 mA. No-load supply current: ≤ 10 mA. Usage category: DC-12 , DC-13. Time delay before availability: < 50 ms. Switching state indicator: LED, yellow. MTTFd: 2890 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Protection class: III. Rated insulation voltageUi60 VRated impulse withstand voltageUimp1000 V (1.2/50 µs, 500 Ω, 0.5 J): Ui. Rated insulation voltage: 60 V. Rated impulse withstand voltage: 1000 V (1.2/50 µs, 500 Ω, 0.5 J). UL approval: . Ordinary LocationcULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosureMaximum permissible ambient temperaturemax. 70 °C (max. 158 °F): . Ordinary Location: cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure. Maximum permissible ambient temperature: max. 70 °C (max. 158 °F). CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 75 °C (-13 ... 167 °F). Storage temperature: -25 ... 75 °C (-13 ... 167 °F). Pollution degree: 3. Connection type: cable. Housing material: Stainless steel 1.4404 / AISI 316L. Degree of protection: IP67. Cable: . Cable diameter4 mmMaterialPUR Cable bushing: PEINumber of cores3Core cross section0.34 mm2LengthL2 m: . Cable diameter: 4 mm. Material: PUR Cable bushing: PEI. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm. Tightening torque: ≤ 15 Nm. Scope of delivery: Supplied with 2 nuts , brass

Brand	Pepperl Fuchs
Lifecycle status	active
