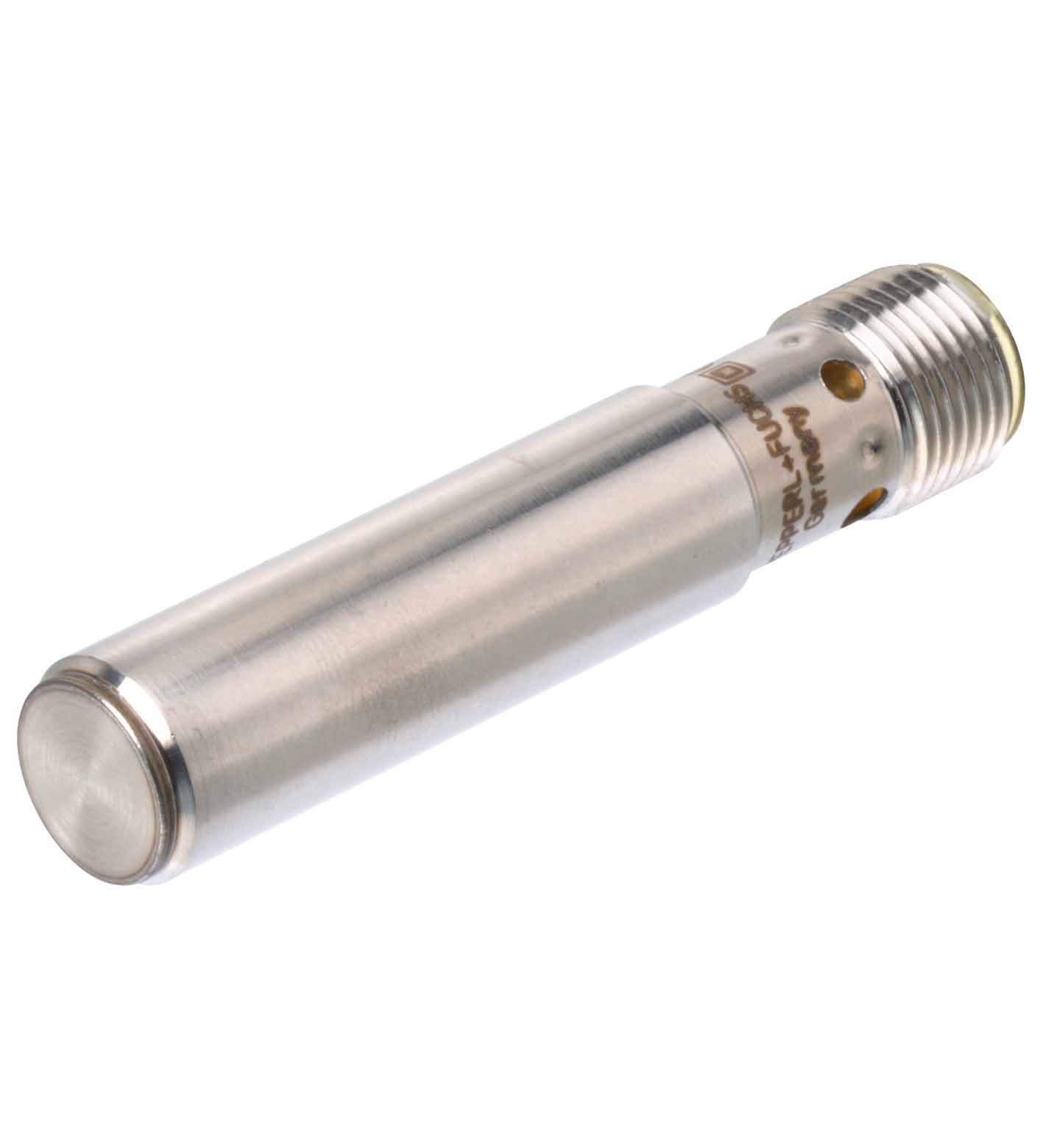

MMB60-12H50-E2-V1

Magnetic field sensor. metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Series: Cylindrical type, Threading: without...

Magnetic field sensor. metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Series: Cylindrical type, Threading: without, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: stainless steel V4A, Degree of protection: IP65 / IP68 / IP69K /. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 60 mm. Installation: flush. Output polarity: DC. Actuating element: magnetic. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 5000 Hz. Hysteresis: 1 ... 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V DC. Operating current: ≤ 100 mA. Current consumption: < 10 mA. Operation indicator: 4-way LEDSwitching state indicator: yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 100 °C (32 ... 212 °F). Connection type: Connector plug. Housing material: stainless steel V4A. Sensing face: stainless steel V4A. Degree of protection: IP65 / IP68 / IP69K /. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Length60 mmDiameter12 mm: . Length: 60 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
