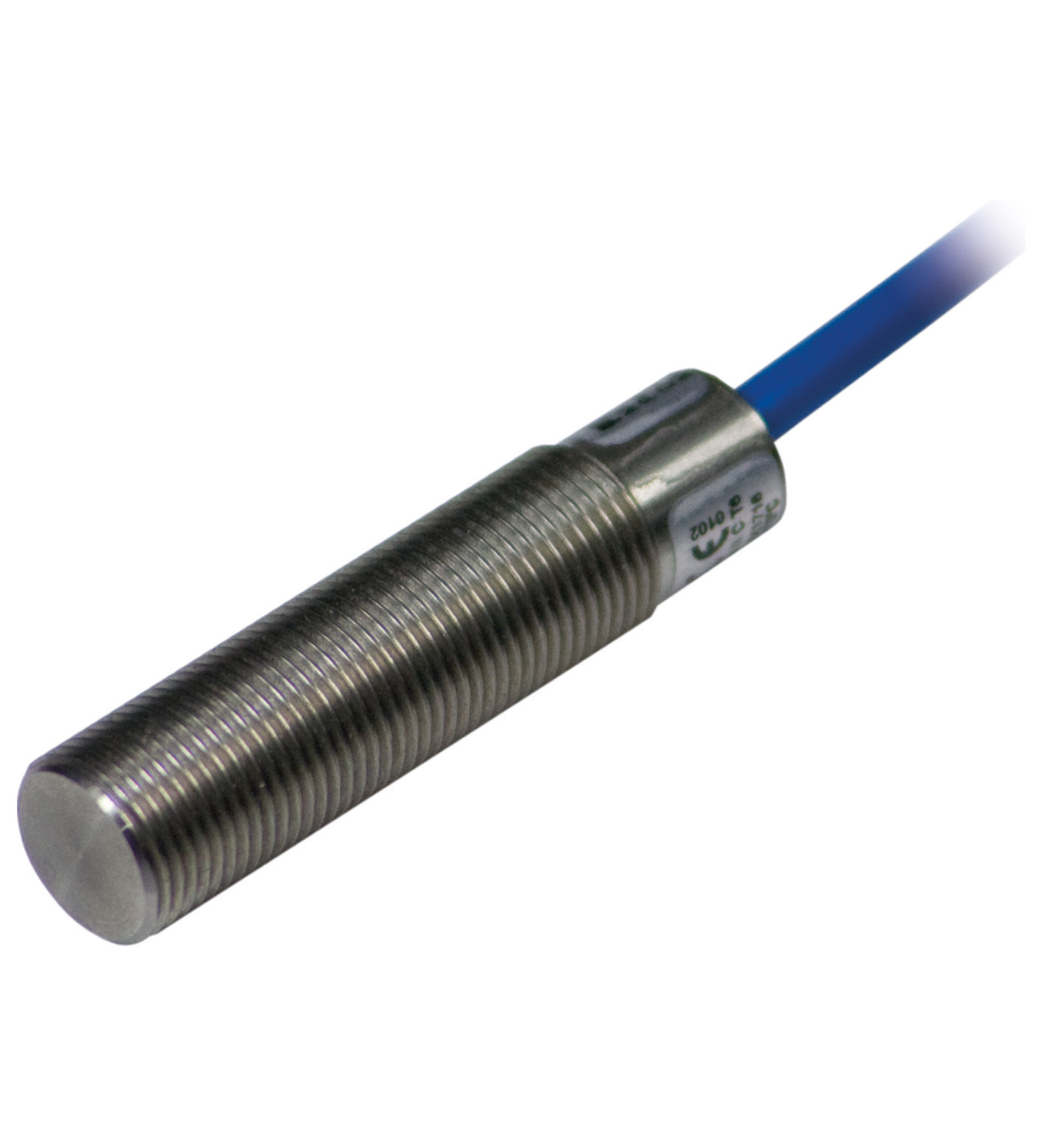

MMB70-12GH50-1N

Magnetic field sensor. Switching function: Normally open (NO), Output type: NAMUR, Installation: flush in non-magnetic metal, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thr...

Magnetic field sensor. Switching function: Normally open (NO), Output type: NAMUR, Installation: flush in non-magnetic metal, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Type of voltage: DC, Equipment protection level Ga: IECEx TUN 20.0007, Equipment protection level Da: IECEx TUN 20.0007, Equipment protection level Ga: TÜV 20 ATEX 241336, Equipment protection level Da: TÜV 20 ATEX 241336, Connection type: cable, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP67. Switching function: Normally open (NO). Output type: NAMUR. Rated operating distance: 5 ... 70 mm. Installation: flush in non-magnetic metal. Output type: 2-wire. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Switching frequency: 0 ... 1000 Hz. Current consumption: . Magnet detected≥ 2.3 mAMagnet not detected≤ 1 mA: . Magnet detected: ≥ 2.3 mA. Magnet not detected: ≤ 1 mA. Switching state indicator: LED, yellow. MTTFd: 2828 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . NAMUREN 60947-5-6:2000StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012: . NAMUR: EN 60947-5-6:2000. Standards: EN 60947-5-2:2007 EN 60947-5-2/A1:2012. IECEx approval: . Equipment protection level GaIECEx TUN 20.0007Equipment protection level DaIECEx TUN 20.0007: . Equipment protection level Ga: IECEx TUN 20.0007. Equipment protection level Da: IECEx TUN 20.0007. ATEX approval: . Equipment protection level GaTÜV 20 ATEX 241336Equipment protection level DaTÜV 20 ATEX 241336: . Equipment protection level Ga: TÜV 20 ATEX 241336. Equipment protection level Da: TÜV 20 ATEX 241336. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4404 / AISI 316L. Sensing face: Stainless steel 1.4404 / AISI 316L. Degree of protection: IP67. Cable: . Wire end ferrulesyesMaterialPVCColorblueNumber of cores2Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Material: PVC. Color: blue. Number of cores: 2. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
