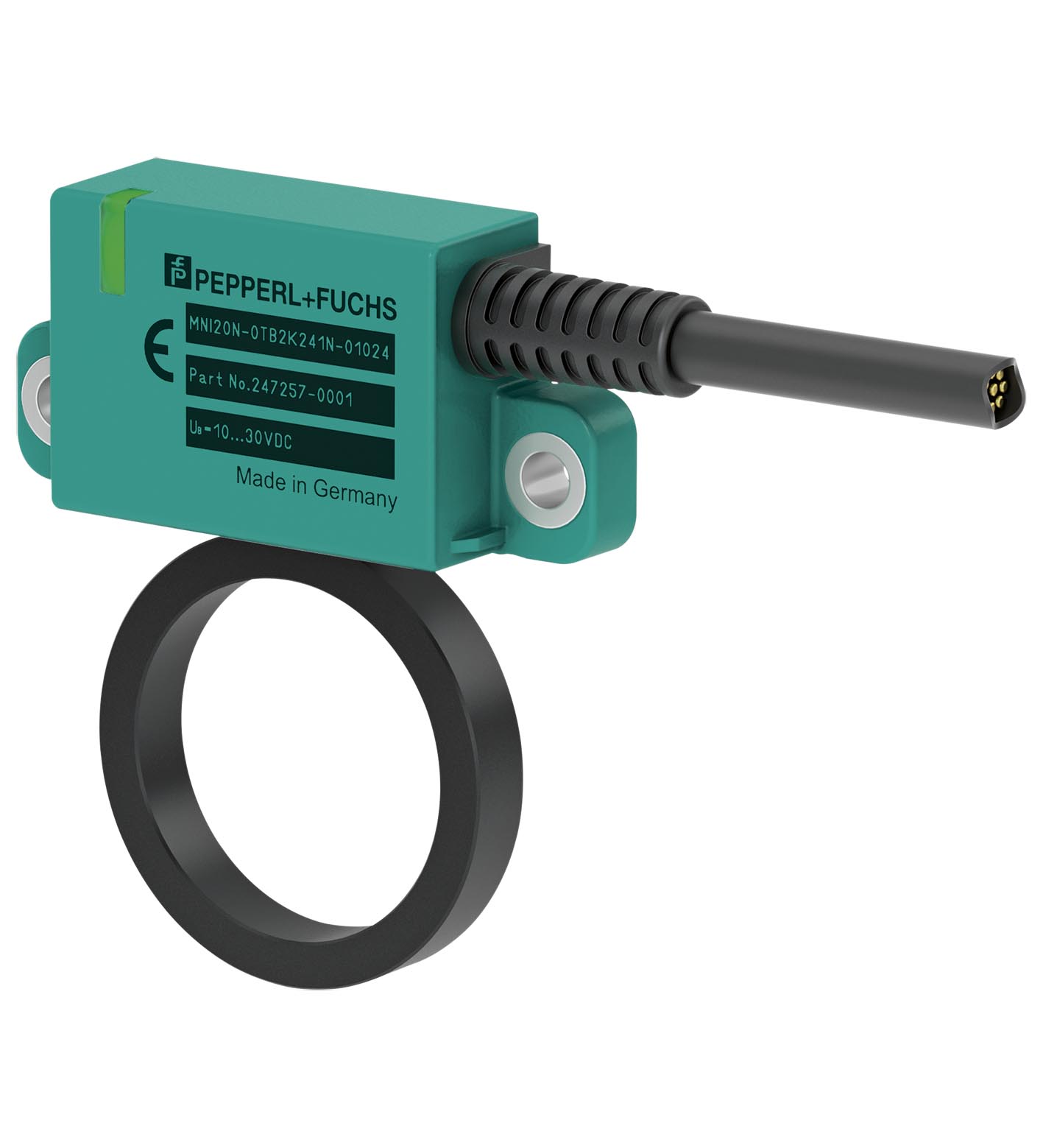

MNI20N

Incremental rotary encoder. Magnetic, non Contact, Cost-effective, bearing-free rotary encoder for rotational speed measurement, Simple installation, Operating display verifies function, High degree o...

Incremental rotary encoder. Magnetic, non Contact, Cost-effective, bearing-free rotary encoder for rotational speed measurement, Simple installation, Operating display verifies function, High degree of protection (IP67), Robust and flexible magnetic rings, Enclosure type: Rectangular type, Type of shaft: non-contact, Interface: push-pull, incremental or RS-422, incremental, Detection type: magnetic sampling, Output type: push-pull, incremental or RS-422, incremental. Detection type: magnetic sampling. Pulse count: max. 5000. UL File Number: E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product.. MTTFd: 1093 a. Diagnostic Coverage (DC): 0 %. LED green: Operating display. Operating voltage: 10 ... 30 V DC 5 V DC for RS-422. No-load supply current: max. 55 mA. Output type: push-pull, incremental or RS-422, incremental. Voltage drop: < 2.5 V. Load current: max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof). Output frequency: max. 800 kHz. Cable: ∅4,7 mm, 4 x 2 x 0,128 mm2 connection with plug M12, 8-pin, L = 0.3 m. Degree of protection: DIN EN 60529, IP67. Climatic testing: DIN EN 60068-2-30. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 200 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 40 g, 10 ... 2000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. adapters providing field wiring on request. Maximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Operating temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Material: . HousingPACablePURMagnetic ringPA , Plastic-coated ferrite: . Housing: PA. Cable: PUR. Magnetic ring: PA , Plastic-coated ferrite. Mass: approx. 190 g. Rotational speed: max. 20000 min -1. Dimensions: . Width22.4 mmLength32 mm: . Width: 22.4 mm. Length: 32 mm

Brand	Pepperl Fuchs
Lifecycle status	active
