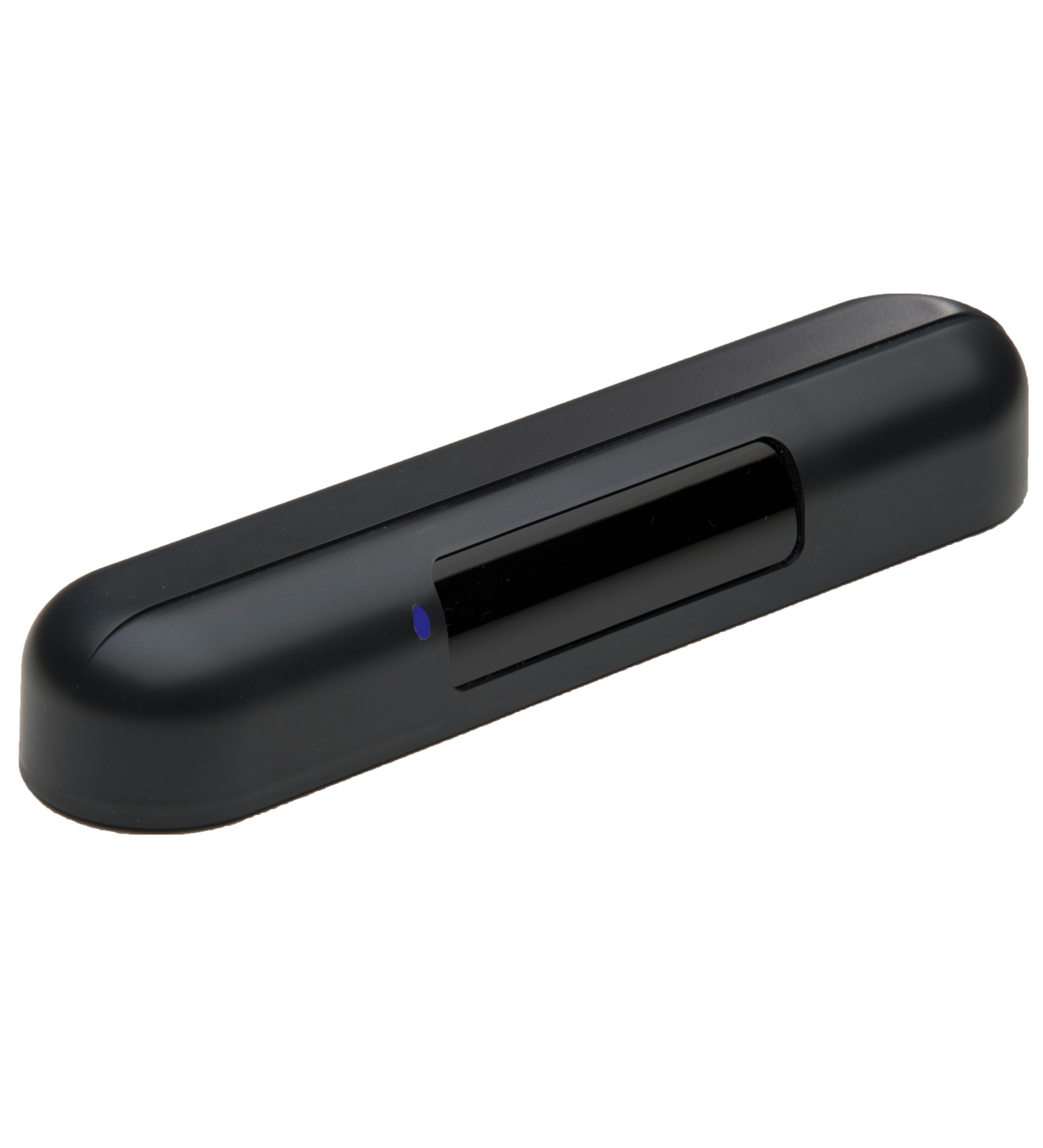

Combined sensor. Combined sensor for opening and securing automatic sliding doors, Radar opening impulse, Closing edge safety mechanism with diffuse sensor, Safety mechanism in accordance with EN 1600...
Combined sensor. Combined sensor for opening and securing automatic sliding doors, Radar opening impulse, Closing edge safety mechanism with diffuse sensor, Safety mechanism in accordance with EN 16005, Extra-large, adjustable protection field in front of the door, Function: Open and secure, Sensor principle: Area scanner, Operating voltage: 12 ... 24 V DC / 12 ... 24 V AC +/- 10%, 50 - 60 Hz, Switching type: light/dark on selectable programmable, Output type: Radar, relay. Detection field: AIR, adjustable , total field: 2400 mm x 1000 mm (WxD) for a mounting height of 2200 mm. Detection field: Radar sensor 2500 mm x 4000 mm (d x w) at installation height of 2200 mm and 45° angle. Detection range max.: 0 ... 3200 mm. Light source: 3 Series. Light type: modulated infrared light. Setting angle: -8 ... 4 °. Operating frequency: 24.15 ... 24.25 GHz K-Band , Radar sensor. Transmitter radiated power (EIRP): < 20 dBm. Performance level (PL): PL d. Category: Cat. 2. MTTFd: 339.83 a. Diagnostic Coverage (DC): 81.52 %. Function indicator: LED green/blue/red/orange. Control elements: DIP switch. Control elements: sensitivity adjustment. Parameterization indicator: LED flashes when in adjustment mode Fast orange. Operating voltage: 12 ... 24 V DC / 12 ... 24 V AC +/- 10%, 50 - 60 Hz. No-load supply current: ≤ 80 mA at 24 V DC ≤ 150 mA at 12 V:. Power consumption: 2.5 VA. Activation current: at 24 V DC 6 mA. Test input: active with +UB. Output type: Infrared, optocoupler. Switching voltage: 48 V DC. Switching current: 300 mA resistive load. De-energized delay: 0.5 s. Switching type: light/dark on selectable programmable. Response time: 100 ms up to 200 ms. Output type: Radar, relay. Switching voltage: 48 V DC. Switching current: 100 mA resistive load. De-energized delay: 1.5 s. Switching type: NO/NC programmable. Response time: 100 ms up to 200 ms. Functional safety: ISO 13849-1. Product standard: EN 12978. CE conformity: 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed.. FCC approval: No - Use in North America is not permitted.. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: max. 80 %. Mounting height: max. 3200 mm. Degree of protection: IP54 (when mounted). Connection: plug 8-pin , Connecting cable included with delivery. Material: . HousingABS: . Housing: ABS. Mass: approx. 260 g. Dimensions: (W x H x D) 265 mm 60 mm 43 mm. Height60 mmWidth265 mmDepth43 mm: . Height: 60 mm. Width: 265 mm. Depth: 43 mm. Note: Please refer to the package insert for information on how to mount and install the sensor correctly.. Scope of delivery: sensor , cable , 2 screws , Mounting aid , Instruction leaflet. Series: MotionScan
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
