MPT32HD

Photoelectric base modul, Accessories. Photoelectric Sensors; MP Series Modular, Harsh duty, Withstands 1200 psi washdown. Marking: CE. Operating voltage: 10 ... 30 V DC. Operating current: 250 mA max...

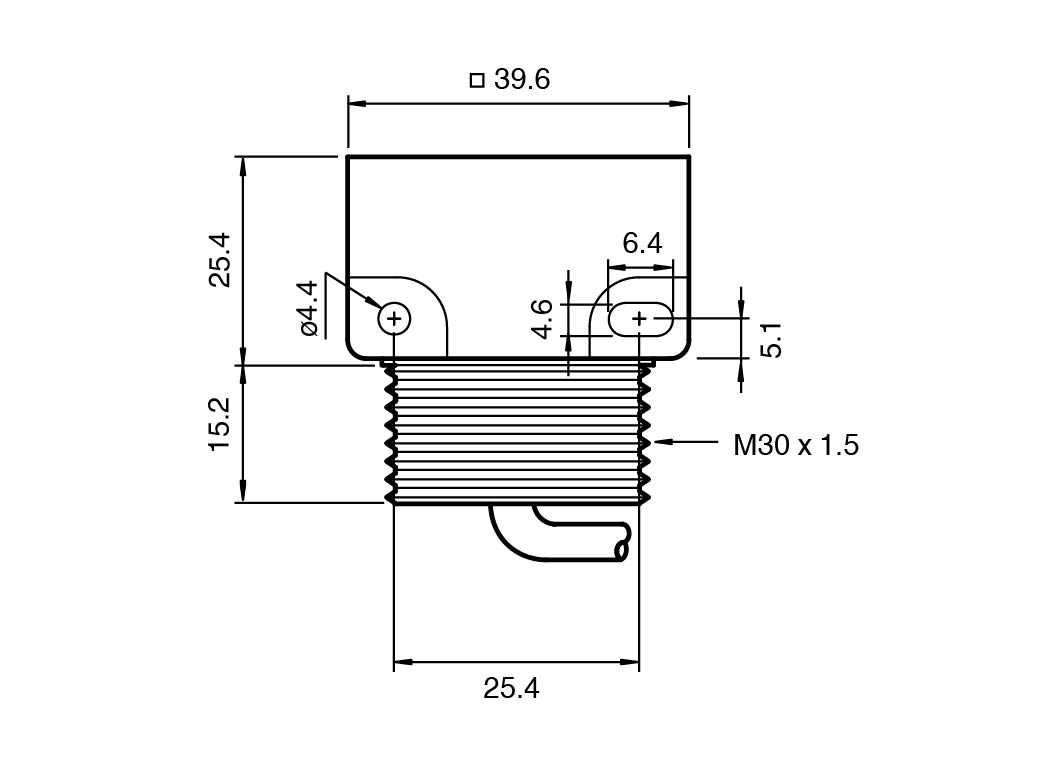

Photoelectric base modul, Accessories. Photoelectric Sensors; MP Series Modular, Harsh duty, Withstands 1200 psi washdown. Marking: CE. Operating voltage: 10 ... 30 V DC. Operating current: 250 mA max. Voltage drop: ≤ 1 V DC. Current consumption: ≤ 25 mA. Response time: ≤ 10 µs. Output type: DC. Output type: 1 PNP. Standards: EN 60947-5-2. Approvals: CE, cULus. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -55 ... 85 °C (-67 ... 185 °F). Relative humidity: 95% RH (non-condensing). Shock resistance: 50G. Vibration resistance: 10G, 10 ... 500 Hz. Degree of protection: IP69K. Connection: 2-meter PVC cable. Material: . HousingGlass-filled Polysulfone: . Housing: Glass-filled Polysulfone. Dimensions: . Height55 mmWidth39.6 mmDepth39.6 mm: . Height: 55 mm. Width: 39.6 mm. Depth: 39.6 mm

Brand	Pepperl Fuchs
Lifecycle status	active
