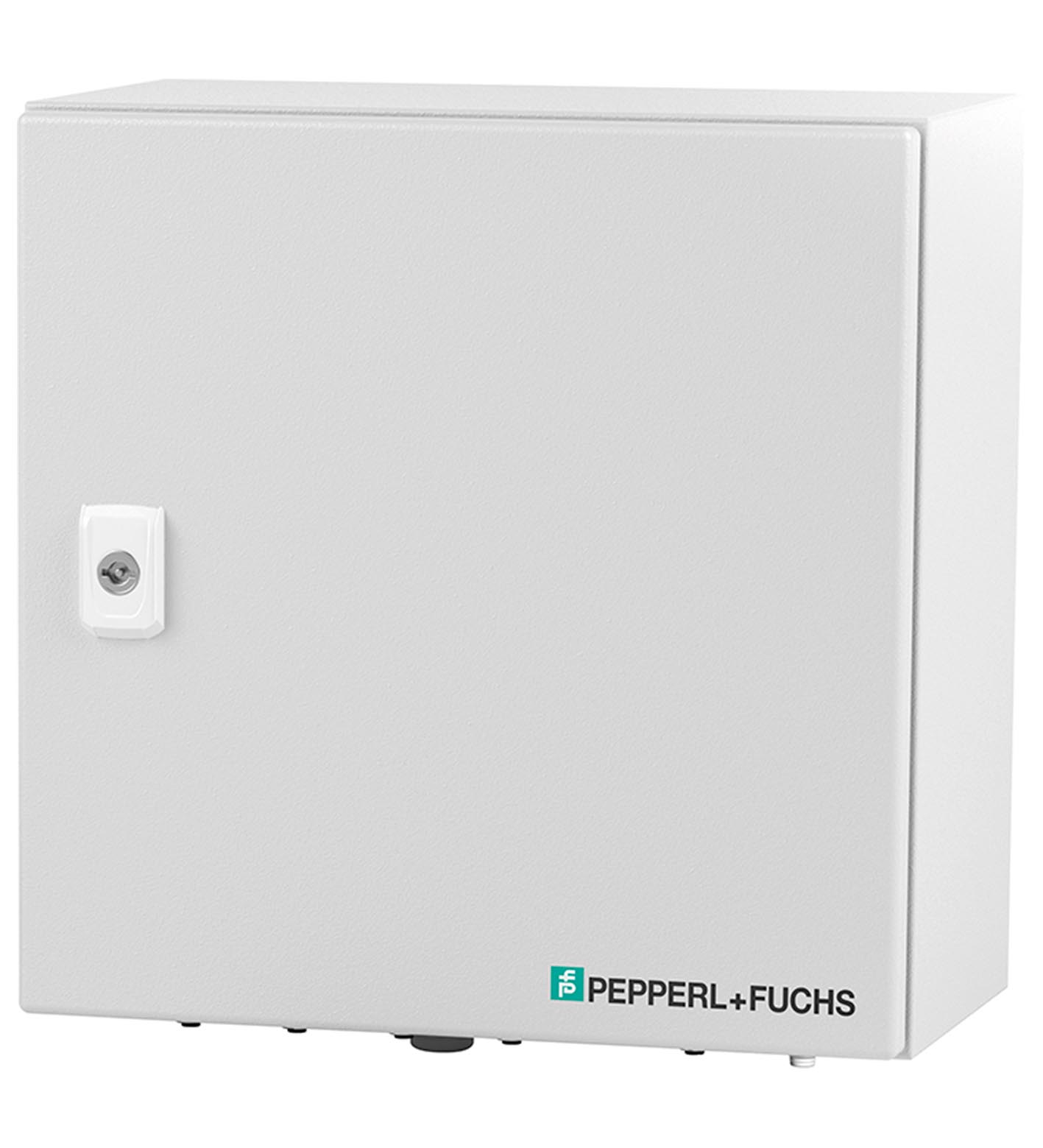

MSEU-F601-Volume3D-001

Multi Scan Control Interface. Part of the Volume3D Smart System, Industrial-grade PC for 24/7 operation, Long-term support with product availability for more than 5 years, Sturdy housing, suitable for...

Multi Scan Control Interface. Part of the Volume3D Smart System, Industrial-grade PC for 24/7 operation, Long-term support with product availability for more than 5 years, Sturdy housing, suitable for rough industrial use, Pre-installed Volume3D software. Processor: Intel® Apollo Lake N4200 series. RAM: 4 GB DDR3L. Mass storage: 32 GB eMMC MLC. Power supply: Input voltage: 16 ... 28 V DC Output voltage: 16 ... 28 V DC Input current: max. 3.8 A - 2.2 A. Interface type: Voltage input: M12 plug, A-coded, 4-pinVoltage output: M12 socket, A-coded, 4-pinNetwork connection: M12 socket, D-coded, 4-pin, shielded via screw connectionShielded earth: Connection terminal Encoder connection: M12 socket, A-coded, 8-pin. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 55032:2015, AC:2016 EN 55035:2017: . Directive 2014/30/EU: EN 61326-1:2013 EN 55032:2015, AC:2016 EN 55035:2017. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012-09: . Directive 2011/65/EU (RoHS): EN 50581:2012-09. Operating system: Linux Debian 10. Operating temperature: -20 ... 45 °C (-4 ... 113 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: ≤ 95 % at 40 °C (non-condensing acc. to EN 60068-2-78). Degree of protection: IP66. Mass: 12.4 kg. Dimensions: 380 mm x 380 mm x 210 mm. Mounting: wall mounting. Note: Passive cooling, no rotating parts. Power supply not included.. System information:

Brand	Pepperl Fuchs
Lifecycle status	active
