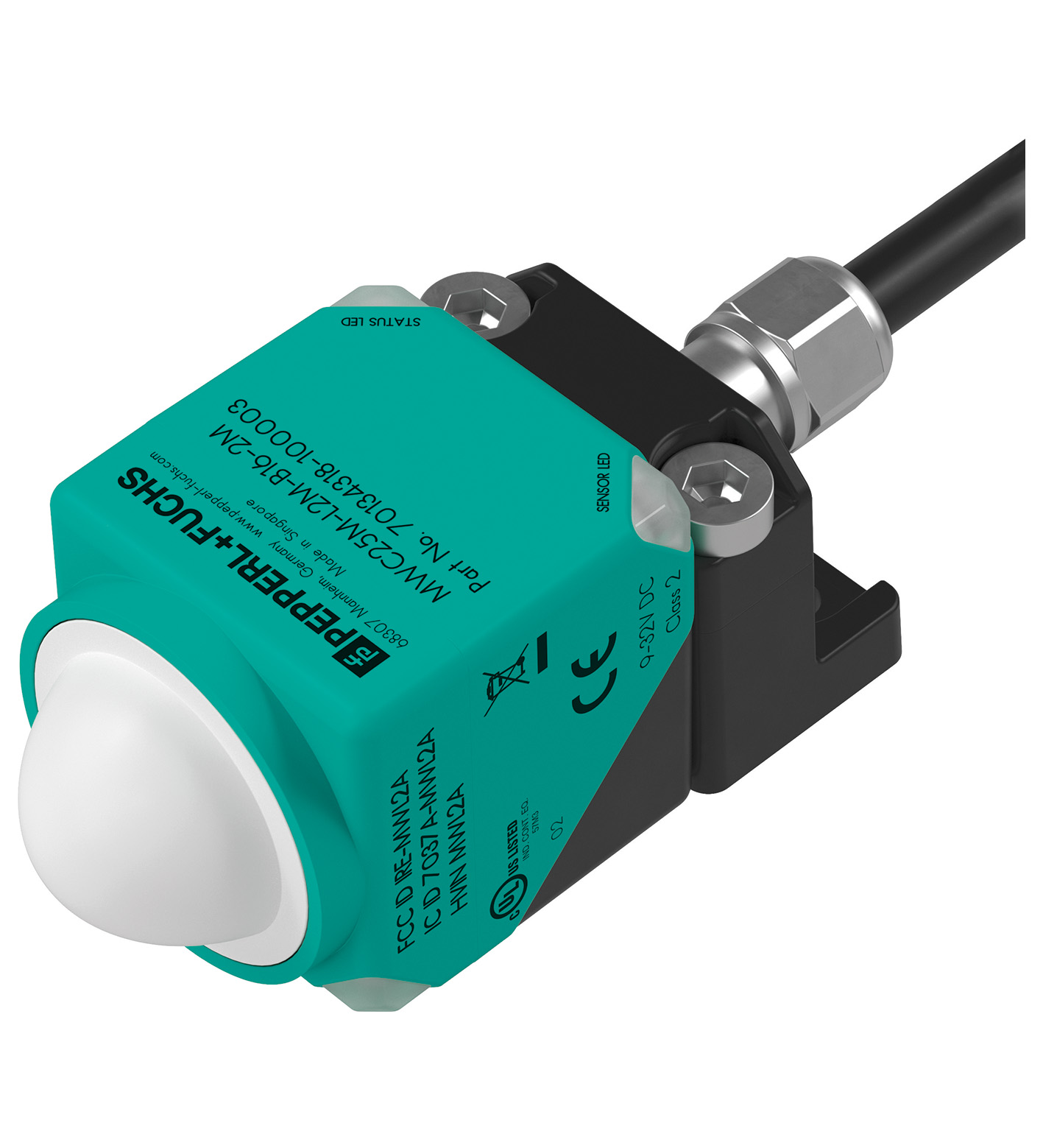

MWC25M-L2M-B16-0,3M-APS5P

Radar sensor. Radar sensor for distance and velocity measuring up to 25 m sensing range, with AMP connector, CANopen interface, Sensing range up to 25 m, Degree of protection IP68 / IP69, Interface ty...

Radar sensor. Radar sensor for distance and velocity measuring up to 25 m sensing range, with AMP connector, CANopen interface, Sensing range up to 25 m, Degree of protection IP68 / IP69, Interface type: CANopen, Connection type: fixed cable with plug, Connection assembly: AMP connector Superseal 282107-1 <BR>AMP contact Superseal 282109-1. Measuring technology: FMCW. Measured variable: distance velocity. Measuring range: . Distance0.5 ... 25 mVelocity0.1 ... 80 m/s: . Distance: 0.5 ... 25 m. Velocity: 0.1 ... 80 m/s. Dead band: 0 ... 0.5 m. Standard target plate: corner reflector 100 mm edge length. Working frequency: 122.25 ... 123 GHz. Opening angle: < 12 ° (see characteristic curve). Transmitter radiated power (EIRP): < +20 dBm. Sampling rate: 1 ... 200 Hz , programmable. Linearity error: < ± 0.1 % of full-scale value (linearity error incl. temperature drift). Repeat accuracy: 1 mm. Resolution: distance 1 mm velocity 0.01 m/s. Time delay before availability: ≤ 400 ms. Performance level (PL): up to PL c. MTTFd: 310 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): up to 60 % , see functional safety manual. LED yellow: object within measuring range. LED red/green: CANopen status display. Operating voltage: 9 ... 32 V. No-load supply current: ≤ 100 mA. Power consumption: typ. 0.4 W , max. 1 W. Interface type: CANopen. Process data: distance velocity signal quality cycle counter. Node ID: 1 ... 127 , programmable. Transfer rate: 125 kBit/s , 250 kBit/s , 500 kBit/s , 800 kBit/s , 1 MBit/s , programmable. Termination: external. Standard conformity: . StandardsEN 301489-1 EN 301489-3 EN 305550-1 EN 62368-1 EN 62311: . Standards: EN 301489-1 EN 301489-3 EN 305550-1 EN 62368-1 EN 62311. UL approval: UL Recognized , General purpose , Class 2 power source. FCC approval: CFR Title 47, Part 15 FCC ID: IRE-MWL2A. ISED approval: IC ID: 7037A-MWL2A HVIN/PMN: MWL2A. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Degree of protection: IP68 / IP69. Material: . HousingPA-GF35 powder coated metal mounting flangeRadomePTFE: . Housing: PA-GF35 powder coated metal mounting flange. Radome: PTFE. Connector: . Number of pins5Connection assemblyAMP connector Superseal 282107-1 AMP contact Superseal 282109-1: . Number of pins: 5. Connection assembly: AMP connector Superseal 282107-1 AMP contact Superseal 282109-1. Cable: . Cable diameter7.25 mm ± 0.2 mmBending radiusstatic min. 37.3 mm , dynamic min. 74.7 mmMaterialPURColorblackNumber of cores5Core cross section0.8 mm2LengthL345 mm ± 5 mm: . Cable diameter: 7.25 mm ± 0.2 mm. Bending radius: static min. 37.3 mm , dynamic min. 74.7 mm. Material: PUR. Color: black. Number of cores: 5. Core cross section: 0.8 mm2. Length: 345 mm ± 5 mm. Mass: 238 g. Dimensions: . Height40 mmWidth40 mmLength83.3 mm: . Height: 40 mm. Width: 40 mm. Length: 83.3 mm. Default setting: measured value "distance", measured value "velocity", signal quality, counter-2 (object 0x4000). Sampling rate: 50 Hz (object 0x4000). Node ID: 16. Transfer rate: 250 kBit/s

Brand	Pepperl Fuchs
Lifecycle status	active
