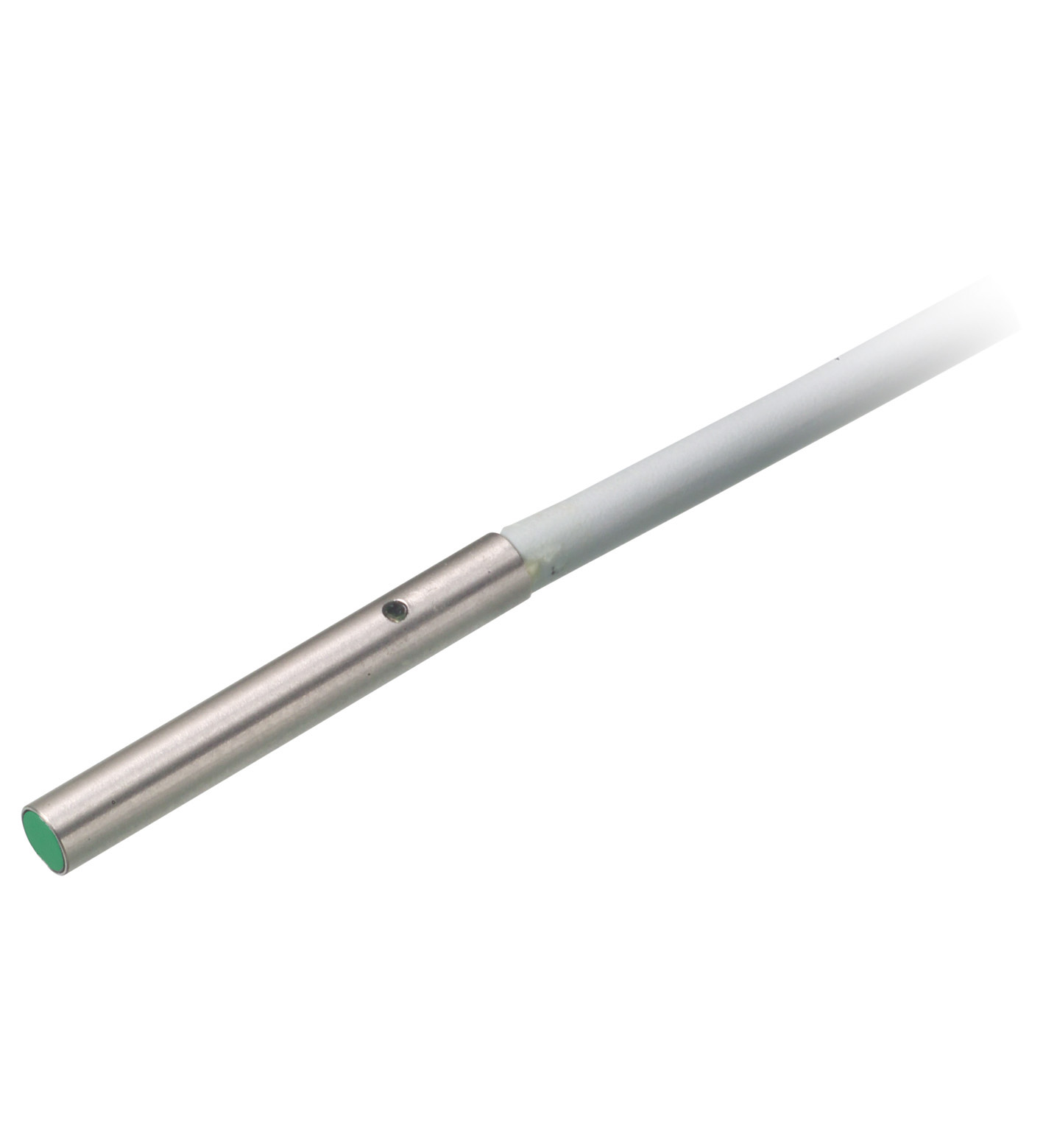

NBB0,6-3M22-E2

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical typ...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 0.6 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 0.486 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.29. Reduction factor r304: 0.76. Reduction factor rBrass: 0.46. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 1400 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 0.1 mA typ. at 25 °C. No-load supply current: ≤ 10 mA. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PC. Degree of protection: IP67. Cable: . Cable diameter2.6 mm ± 0.1 mmBending radius> 10 x cable diameterMaterialPURColorgreyNumber of cores3Core cross section0.055 mm2LengthL2 m: . Cable diameter: 2.6 mm ± 0.1 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: grey. Number of cores: 3. Core cross section: 0.055 mm2. Length: 2 m. Dimensions: . Length22 mmDiameter3 mm: . Length: 22 mm. Diameter: 3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
