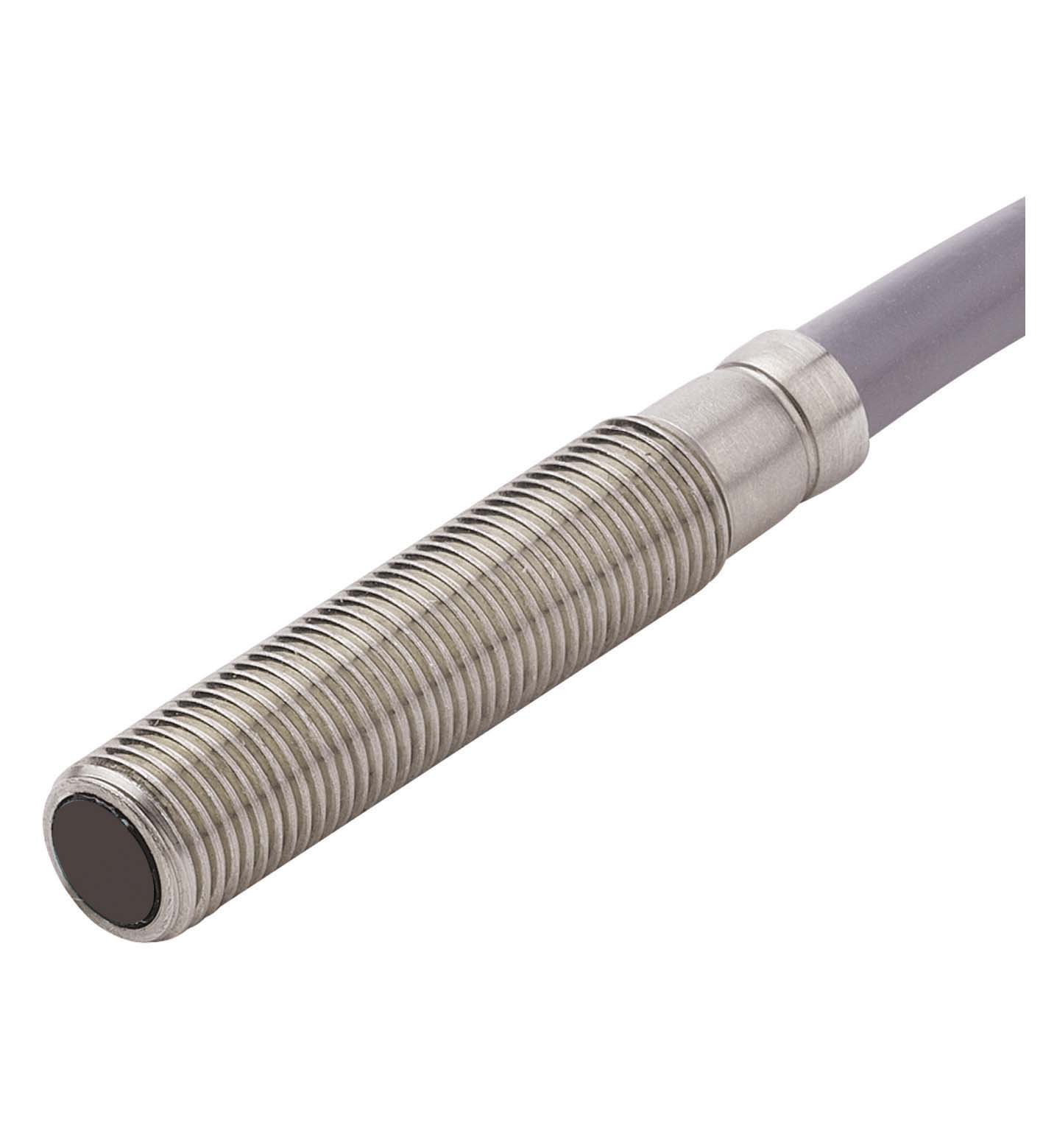

NBB0,6-5GS20-E2

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M5, Construction type: Cylindrical, thread, Seri...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M5, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable PUR 3 x 0.14 mm² , 2 m, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP68. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 0.6 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 0.486 mm. Reduction factor rAl: 0.2. Reduction factor rCu: 0.15. Reduction factor r304: 0.6. Reduction factor rBrass: 0.25. Output type: 3-wire. Installation conditions: . A0 mmB0 mmC2 mmF5 mm: . A: 0 mm. B: 0 mm. C: 2 mm. F: 5 mm. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 5000 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.1 mA. No-load supply current: ≤ 10 mA. Operating pressure: 20 bar (290.1 psi). Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable PUR 3 x 0.14 mm2 , 2 m. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Sapphire. Degree of protection: IP68. Mass: 35 g. Dimensions: . Length25 mmDiameter5 mm: . Length: 25 mm. Diameter: 5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
