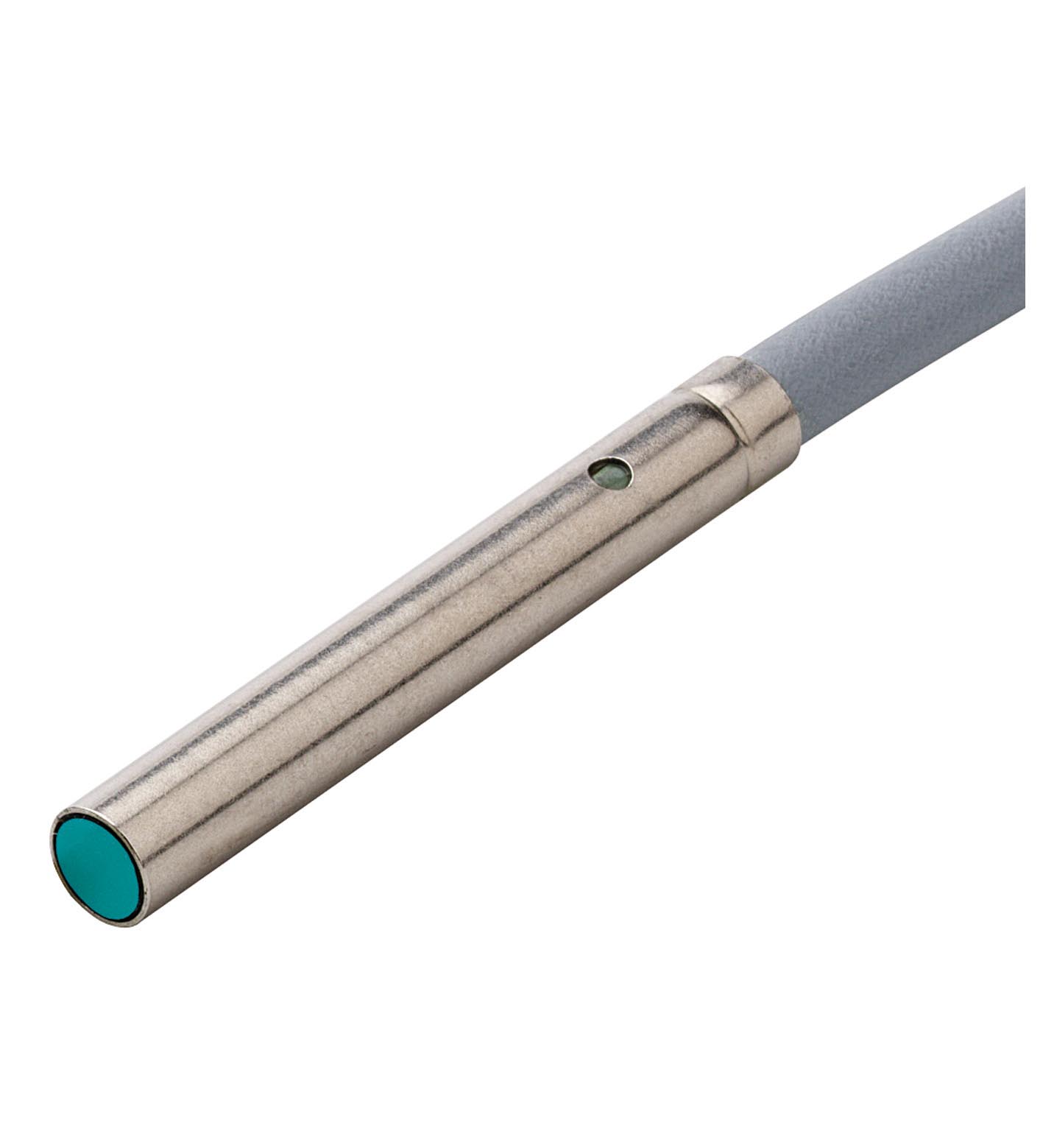

NBB0,8-4M25-E1

Inductive sensor. Switching function: Normally closed (NC), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical t...

Inductive sensor. Switching function: Normally closed (NC), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PVC. Switching function: Normally closed (NC). Output type: NPN. Rated operating distance: 0.8 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 0.648 mm. Reduction factor rAl: 0.45. Reduction factor rCu: 0.4. Reduction factor r304: 0.85. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 3000 Hz. Hysteresis: 5 ... 20 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 0.1 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 12 mA. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3 mm - 0.2 mmBending radius> 12 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 3 mm - 0.2 mm. Bending radius: > 12 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Length25 mmDiameter4 mm: . Length: 25 mm. Diameter: 4 mm

Brand	Pepperl Fuchs
Lifecycle status	active
