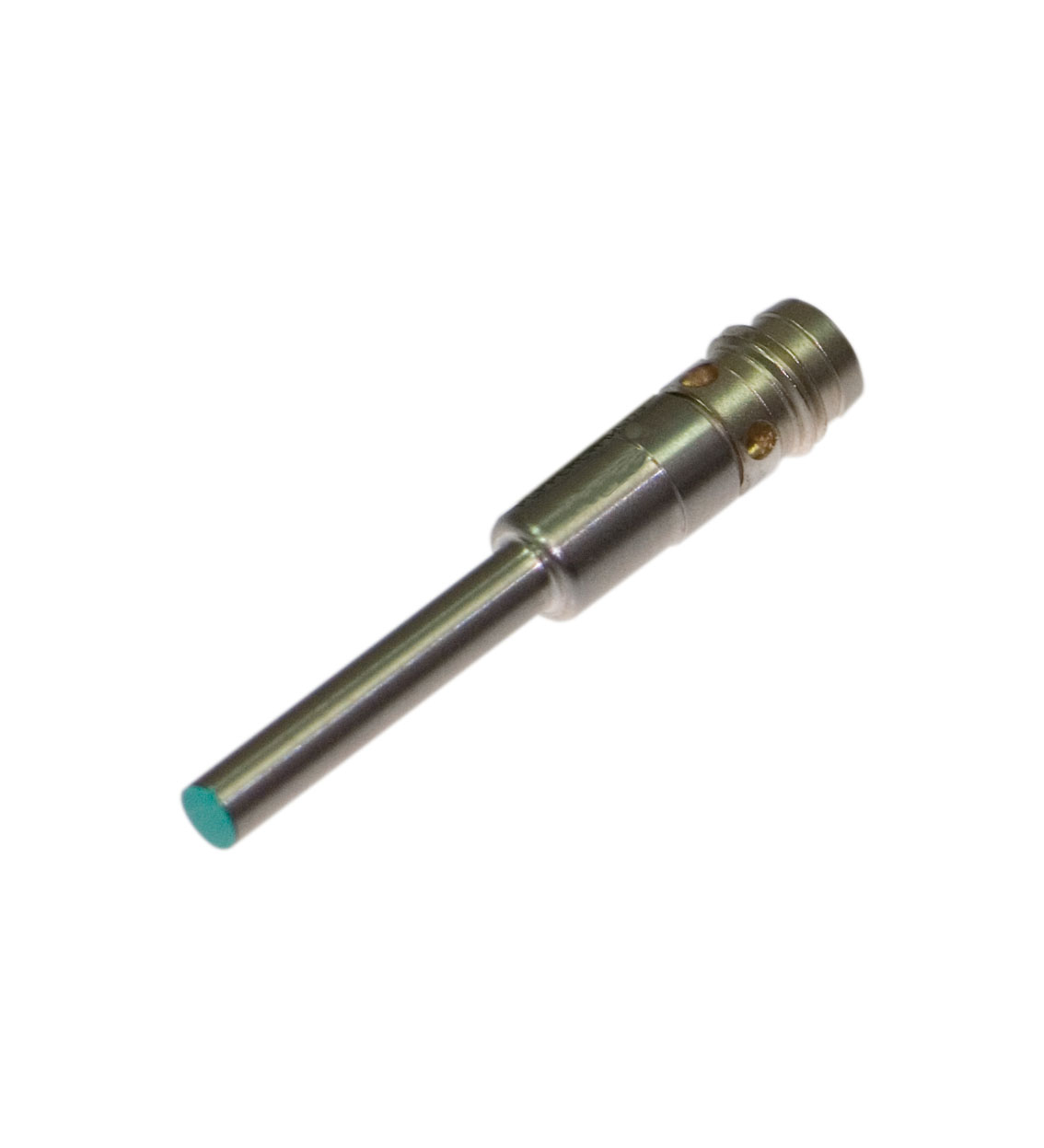

NBB0,8-4M25-E2-V3

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical typ...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M8 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 0.8 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 0.648 mm. Reduction factor rAl: 0.45. Reduction factor rCu: 0.4. Reduction factor r304: 0.85. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 3000 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 0.1 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 12 mA. Switching state indicator: LED, yellow. MTTFd: 1402 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: POM. Degree of protection: IP67. Connector: . ThreadingM8 x 1Number of pins3: . Threading: M8 x 1. Number of pins: 3. Dimensions: . Length45 mmDiameter4 mm: . Length: 45 mm. Diameter: 4 mm

Brand	Pepperl Fuchs
Lifecycle status	active
