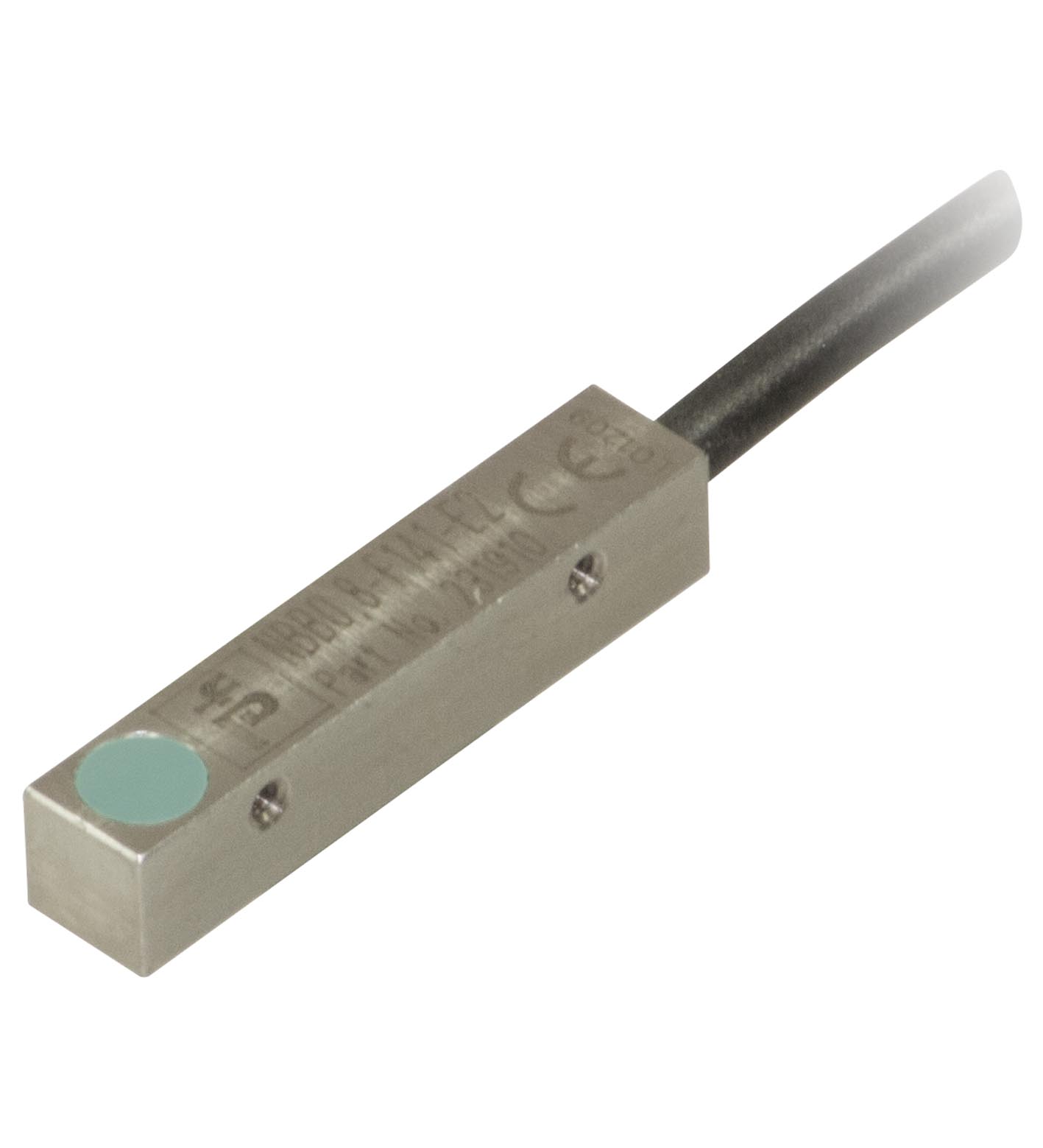

NBB0,8-F141-E2

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Ope...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 0.8 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 0.648 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 5 mm x 5 mm x 1 mm. Reduction factor rAl: 0.6. Reduction factor rCu: 0.45. Reduction factor r304: 0.85. Reduction factor rBrass: 0.6. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 10000 Hz. Hysteresis: 0.01 ... 0.1 mm. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Overload resistance: yes. Wire breakage protection: yes. Inductive overvoltage protection: yes. Surge suppression: yes. Ripple: ≤ 10 %. Voltage drop: ≤ 1.5 V. Repeat accuracy: 0.01 mm. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.1 mA. No-load supply current: ≤ 5 mA. Time delay before availability: ≤ 1 ms. Switching state indicator: LED, yellow. MTTFd: 1354 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: POM. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter2.6 mm ± 0.1 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 2.6 mm ± 0.1 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m. Mass: 40 g. Dimensions: . Height5 mmWidth5 mmLength25 mm: . Height: 5 mm. Width: 5 mm. Length: 25 mm

Brand	Pepperl Fuchs
Lifecycle status	active
