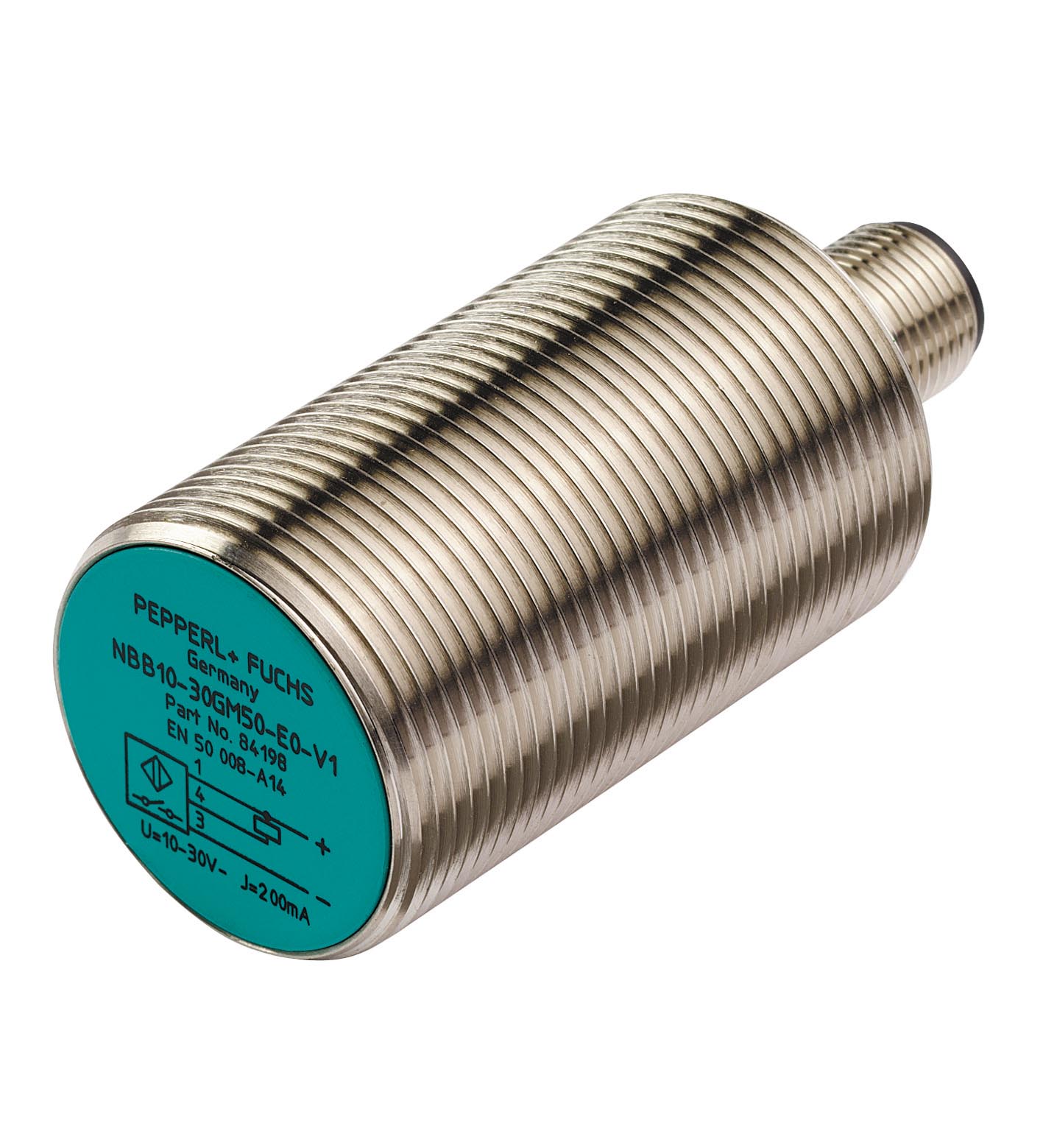

NBB10-30GM50-E2-T-V1

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction ty...

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 10 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 8.1 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 30 mm x 30 mm x 1 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.7. Reduction factor rBrass: 0.4. Output type: 3-wire. Installation conditions: . B25 mmC16 mmF37 mm: . B: 25 mm. C: 16 mm. F: 37 mm. Operating voltage: 10 ... 65 V. Switching frequency: 0 ... 300 Hz. Hysteresis: 0.05 ... 2.2 mm. Reverse polarity protection: yes. Short-circuit protection: yes. Overload resistance: yes. Wire breakage protection: yes. Inductive overvoltage protection: yes. Surge suppression: yes. Ripple: 10 %. Voltage drop: ≤ 2.5 V. Repeat accuracy: 0.3 mm. Operating current: 0 ... 300 mA. Off-state current: ≤ 0.01 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 40 ms. Switching state indicator: Multihole-LED, yellow. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Mass: 115 g. Dimensions: . Length69 mmDiameter30 mm: . Length: 69 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
