Pepperl Fuchs

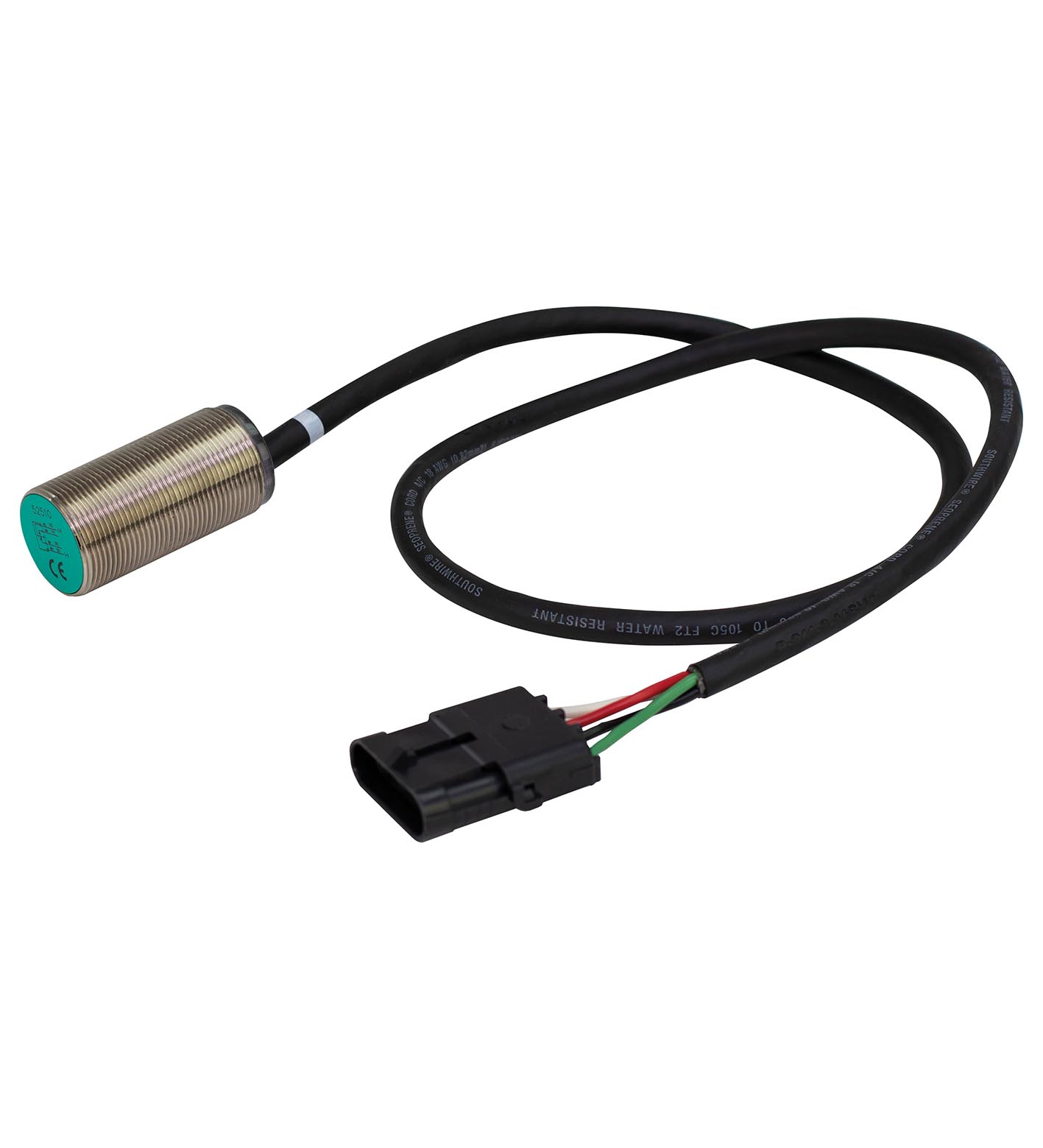

NBB10-30GM60-AAR-1,8M-4PKD

Inductive sensor. Switching function: change-over contact, Output type: relay, Installation: flush, Output polarity: DC, Output type: Relay output, Thread mold: M30, Construction type: Cylindrical, thread, Series: Relay output, Operating voltage: 10 ... 30 V DC <br>, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: brass, nickel-plated, Degree of protection: IP67, Connection assembly: Aptiv housing 12010974 <BR>Aptiv contact 12089040 <BR>Aptiv seal 15324982, Material: TPE. Switching function: change-over contact. Output type: relay. Rated operating distance: 10 mm. Installation: flush. Output polarity: DC. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.85. Output type: Relay output. Mechanical life: No load: 2 x 107 operations Full load: 1 x 105 switching cycles. Operating voltage: 10 ... 30 V DC. Switching frequency: 20 Hz. Hysteresis: approx. 10 %. Reverse polarity protection: yes. Short-circuit protection: no. Operating current: ≤ 50 mA. Switching state indicator: LED, yellow. Switching voltage: max 28 V DC. Switching current: max 6 A DC resistive load. Switching power: max 180 W. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Connection type: fixed cable with plug. Core cross section: 0.75 mm2. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Connector: . Connection assemblyAptiv housing 12010974 Aptiv contact 12089040 Aptiv seal 15324982: . Connection assembly: Aptiv housing 12010974 Aptiv contact 12089040 Aptiv seal 15324982. Cable: . MaterialTPEColorblackNumber of cores4LengthL1.8 m: . Material: TPE. Color: black. Number of cores: 4. Length: 1.8 m. Dimensions: . Length60 mmDiameter30 mm: . Length: 60 mm. Diameter: 30 mm. Mounting: with nuts, M30

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
