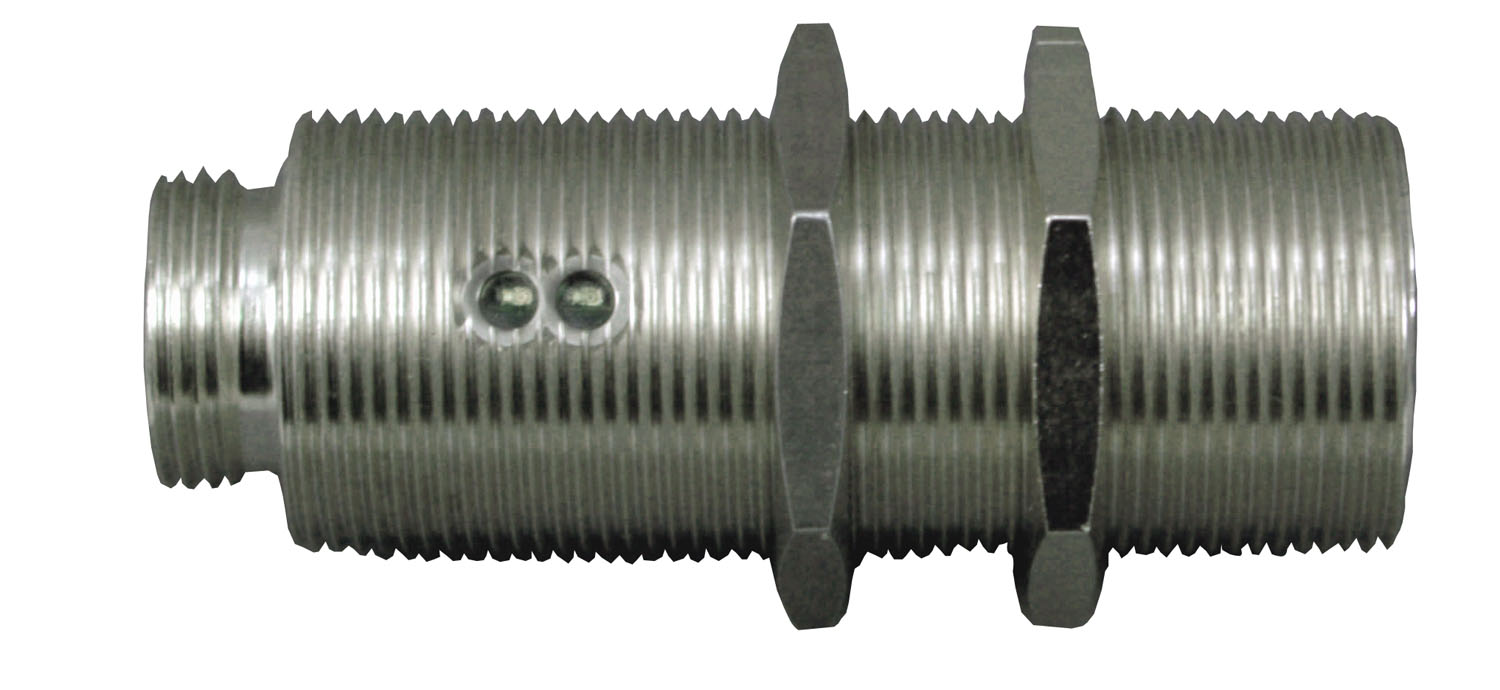

NBB15-30GM50-US-V12

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: AC/DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thr...

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: AC/DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Rated operating voltage: 20 ... 250 V AC/DC, Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP67, Threading: 1/2"-20 UN. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 15 mm. Installation: flush. Output polarity: AC/DC. Reduction factor rAl: 0.5. Reduction factor rCu: 0.45. Reduction factor r304: 0.75. Output type: 3-wire. Switching frequency: 30 Hz. Hysteresis: 3 ... 15 % typ. 5 %. Reverse polarity protection: reverse polarity tolerant. Short-circuit protection: yes. Voltage drop: ≤ 8 V. Rated operating current: 4 ... 500 mA AC/DC. Off-state current: ≤ 0.8 mA. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 1036 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Rated operating voltage: 20 ... 250 V AC/DC. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Enclosure Type Rating: Type 1. CSA approval: cCSAus Listed, General Purpose. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Connector: . Threading1/2"-20 UNNumber of pins3: . Threading: 1/2"-20 UN. Number of pins: 3. Dimensions: . Length60 mmDiameter30 mm: . Length: 60 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
