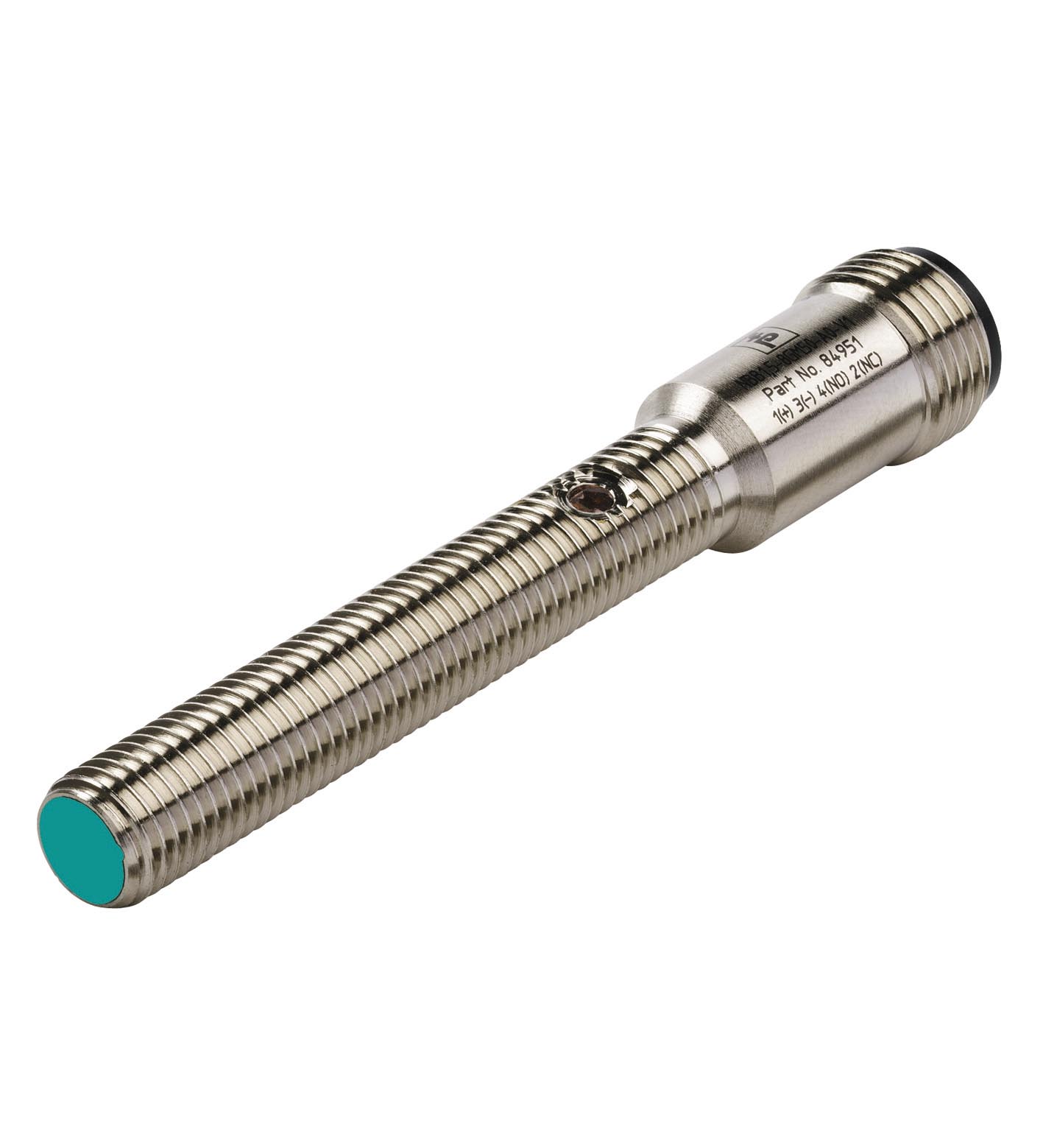

NBB1,5-8GM50-A2-V1

Inductive sensor. Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: C...

Inductive sensor. Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP67, Threading: M12 x 1. Switching function: complementary. Output type: PNP. Rated operating distance: 1.5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.215 mm. Reduction factor rAl: 0.45. Reduction factor rCu: 0.35. Reduction factor r304: 0.75. Output type: 4-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 1500 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 20 mA. Switching state indicator: LED, yellow. MTTFd: 2660 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: LCP. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Length50 mmDiameter8 mm: . Length: 50 mm. Diameter: 8 mm

Brand	Pepperl Fuchs
Lifecycle status	active
