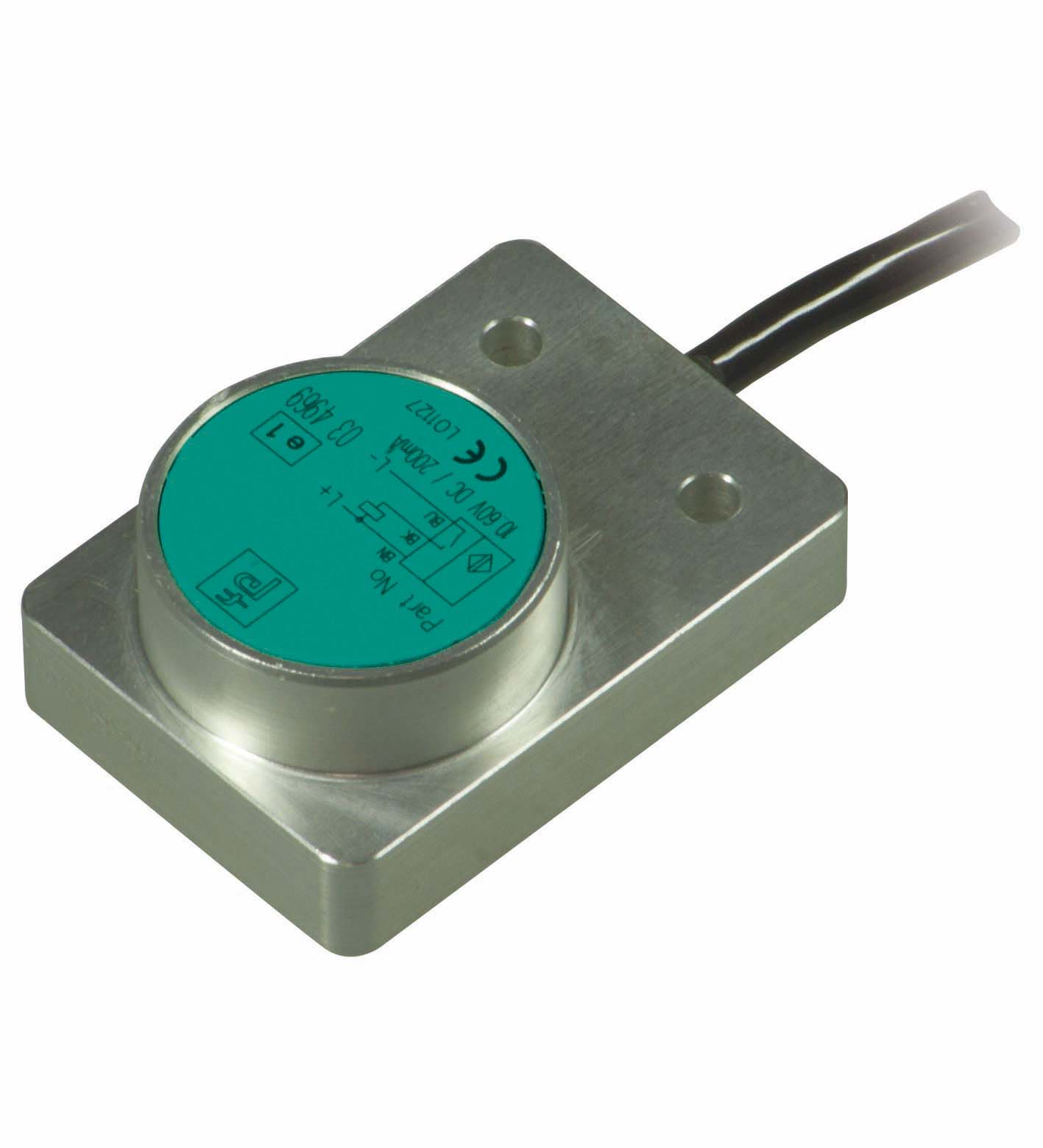

NBB15-F148P10-E2-0,46M-V1

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, S...

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: -F148P, Operating voltage: 10 ... 60 V DC, Type of voltage: DC, Connection type: Cable connector M12 x 1 , 460 mm <BR>from Huber+Suhner RADOX EM 104, Housing material: anodized aluminum, Degree of protection: IP67 / IP69K. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 15 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 12.15 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.45. Reduction factor r304: 0.8. Reduction factor rBrass: 0.55. Output type: 3-wire. Operating voltage: 10 ... 60 V DC. Switching frequency: 0 ... 600 Hz. Hysteresis: 2 ... 20 % ( typ. 3 % ). Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Operating current: 0 ... 200 mA. Off-state current: ≤ 10 µA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 300 ms. Switching state indicator: LED, yellow. MTTFd: 1156 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Cable connector M12 x 1 , 460 mm from Huber+Suhner RADOX EM 104. Core cross section: 0.5 mm2. Housing material: anodized aluminum. Sensing face: PBT. Degree of protection: IP67 / IP69K. Tightening torque, housing screws: ≤ 1.8 Nm. Dimensions: . Height20 mmWidth35 mmLength50 mm: . Height: 20 mm. Width: 35 mm. Length: 50 mm

Brand	Pepperl Fuchs
Lifecycle status	active
