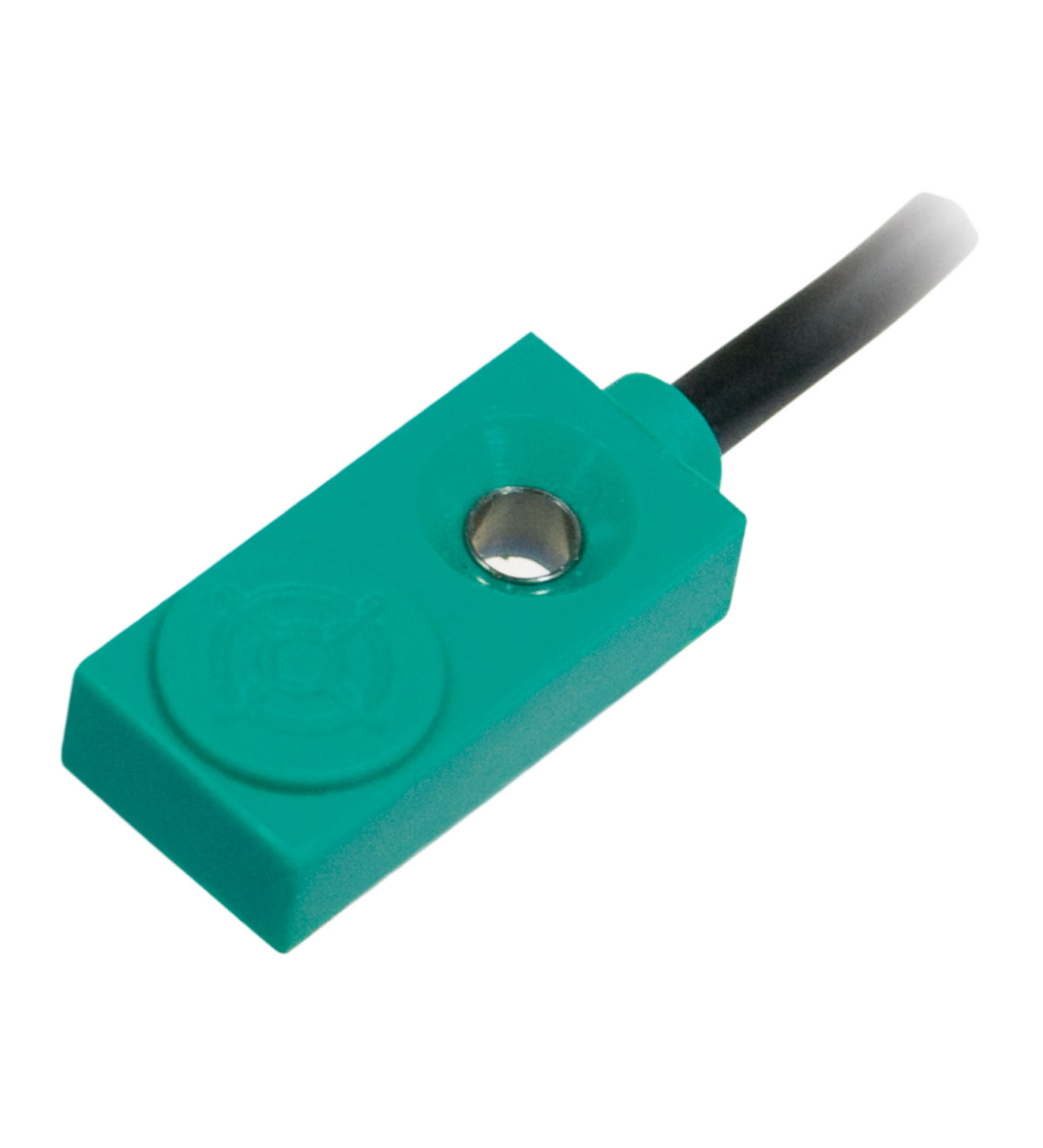

NBB1,5-F79-E2-5M

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Ope...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 5 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PA, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 1.5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.215 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.2. Reduction factor r304: 0.7. Output type: 3-wire. Operating voltage: 5 ... 30 V DC. Switching frequency: 0 ... 1200 Hz. Hysteresis: typ. 5 %. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Operating current: 0 ... 100 mA. Off-state current: ≤ 10 µA. No-load supply current: ≤ 15 mA. Time delay before availability: ≤ 20 ms. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: PA. Sensing face: PA. Degree of protection: IP67. Cable: . Cable diameter2.3 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorblackNumber of cores3Core cross section0.09 mm2LengthL5 m: . Cable diameter: 2.3 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: black. Number of cores: 3. Core cross section: 0.09 mm2. Length: 5 m. Dimensions: . Height4.7 mmWidth8 mmLength16 mm: . Height: 4.7 mm. Width: 8 mm. Length: 16 mm

Brand	Pepperl Fuchs
Lifecycle status	active
