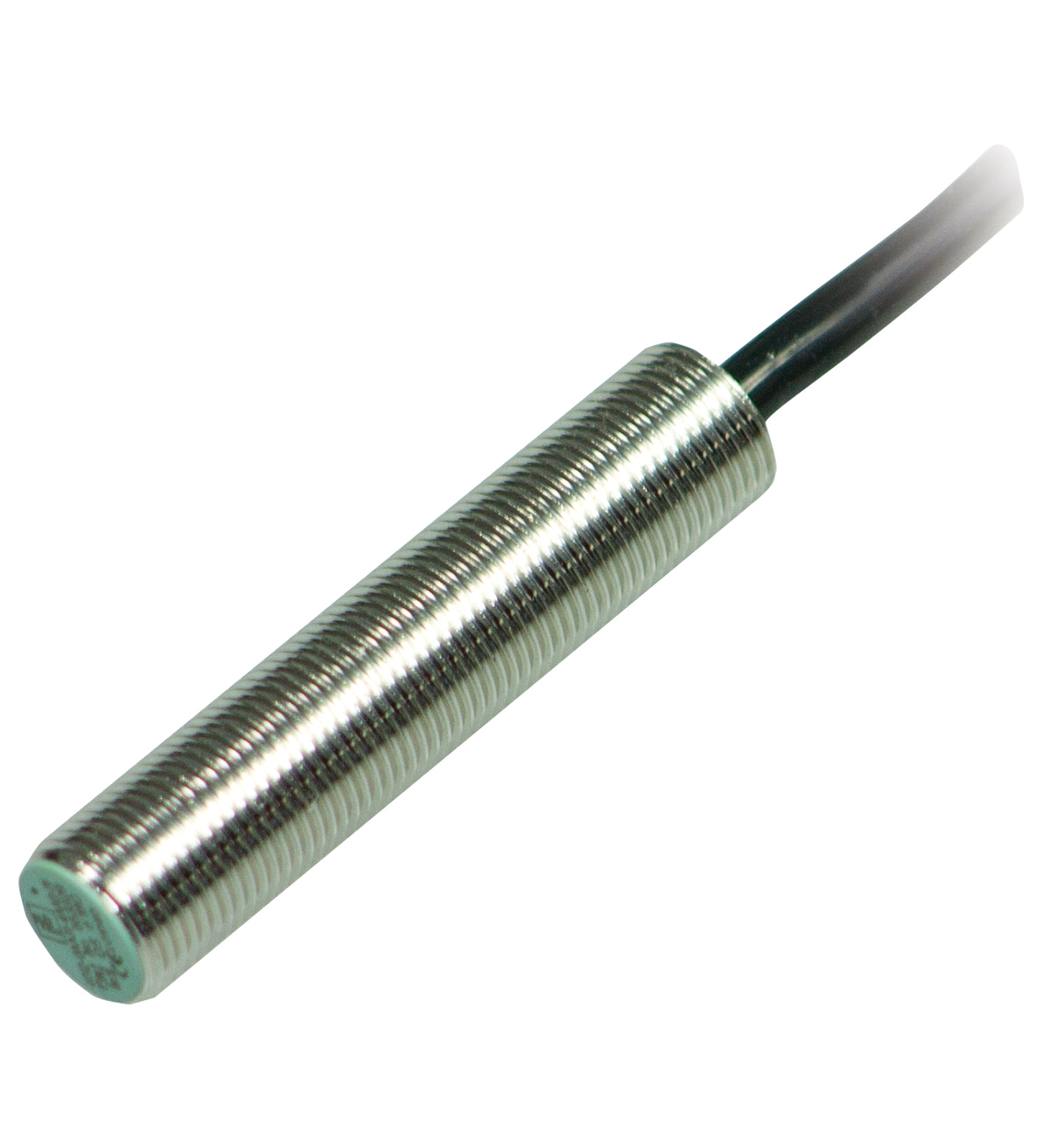

NBB2-12GM60-E2-T

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction ty...

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 12 mm x 12 mm x 1 mm. Reduction factor rAl: 0.35. Reduction factor rCu: 0.2. Reduction factor r304: 0.7. Reduction factor rBrass: 0.4. Output type: 3-wire. Operating voltage: 10 ... 65 V. Switching frequency: 0 ... 1200 Hz. Hysteresis: 0.02 ... 0.44 mm. Reverse polarity protection: yes. Short-circuit protection: yes. Overload resistance: yes. Wire breakage protection: yes. Inductive overvoltage protection: yes. Surge suppression: yes. Ripple: 10 %. Voltage drop: ≤ 2.5 V. Repeat accuracy: 0.1 mm. Operating current: 0 ... 300 mA. Off-state current: 0.01 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 40 ms. Switching state indicator: Multihole-LED, yellow. MTTFd: 1510 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Circuitry: Class 2 Power Source Supply/Switching Voltage: 60 V DC Output Switching Current: 300 mA. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.5 mm ± 0.15 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.25 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.5 mm ± 0.15 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.25 mm2. Length: 2 m. Mass: 87 g. Dimensions: . Length56 mmDiameter12 mm: . Length: 56 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
