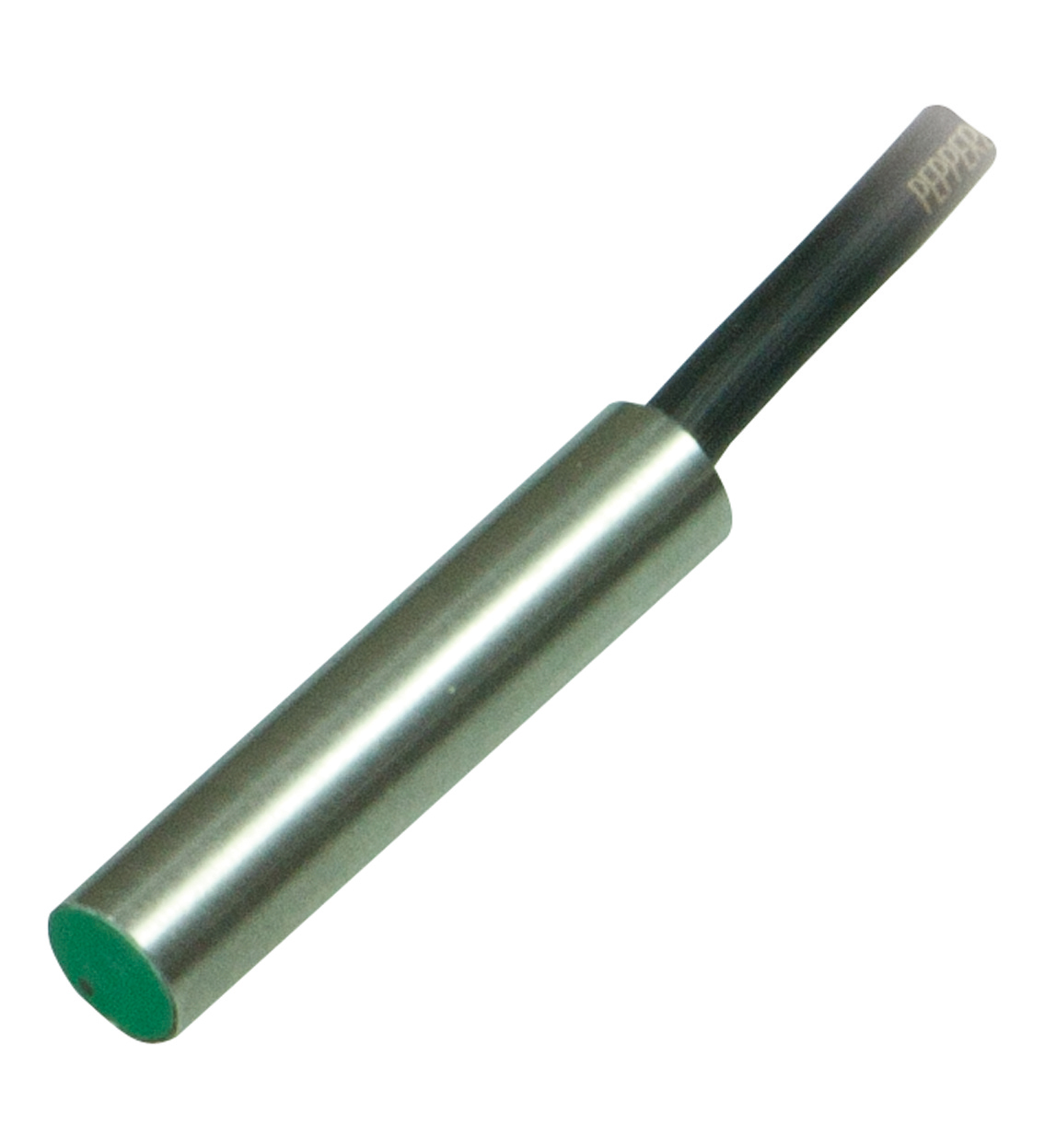

NBB2-6,5S16-E2

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, f...

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP65 / IP66 / IP67, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 6.5 mm x 6.5 mm x 1 mm. Reduction factor rAl: 0.15. Reduction factor rCu: 0.1. Reduction factor r304: 0.5. Reduction factor rBrass: 0.2. Output type: 3-wire. Operating voltage: 5 ... 30 V. Switching frequency: 0 ... 6000 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 0.2 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 100 ms. Switching state indicator: LED, yellow. MTTFd: 960 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: LCP. Degree of protection: IP65 / IP66 / IP67. Cable: . Wire end ferrulesyesCable diameter3.5 mm ± 0.1 mmBending radius> 10 x cable diameterMaterialPVCColorblackNumber of cores3Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 3.5 mm ± 0.1 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: black. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m. Mass: 37 g. Dimensions: . Length16 mmDiameter6.5 mm: . Length: 16 mm. Diameter: 6.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
