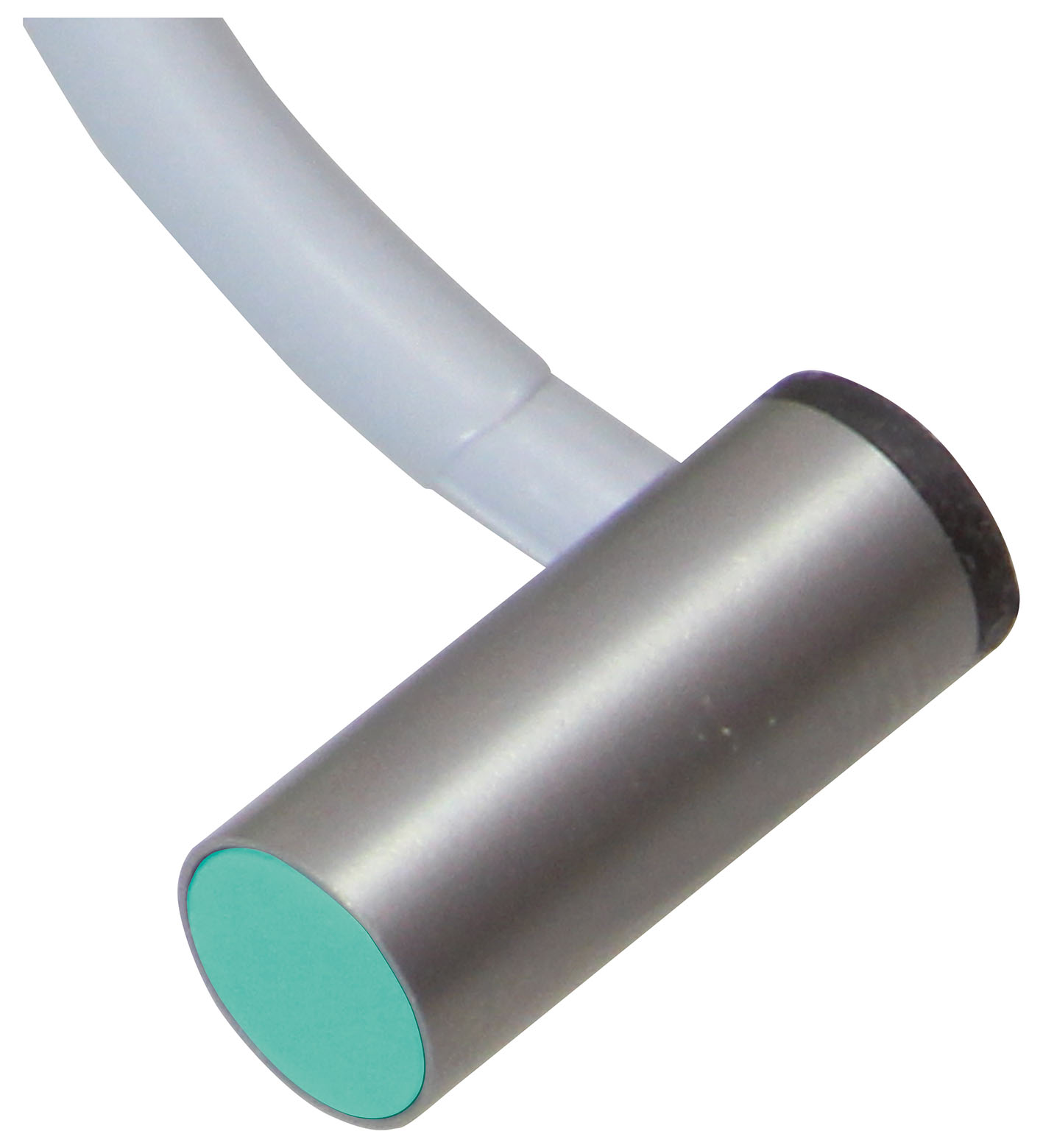

NBB2-6,5S16-E2-Y273690

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical typ...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.25. Reduction factor r304: 0.7. Reduction factor rSt37: 1. Reduction factor rBrass: 0.4. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 5000 Hz. Hysteresis: ≤ 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: ≤ 0.1 mA. No-load supply current: ≤ 10 mA. Switching state indicator: LED. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PA 12. Degree of protection: IP67. Cable: . Wire end ferrulesyesMaterialPVCColorgreyNumber of cores3Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Length16 mmDiameter6.5 mm: . Length: 16 mm. Diameter: 6.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
