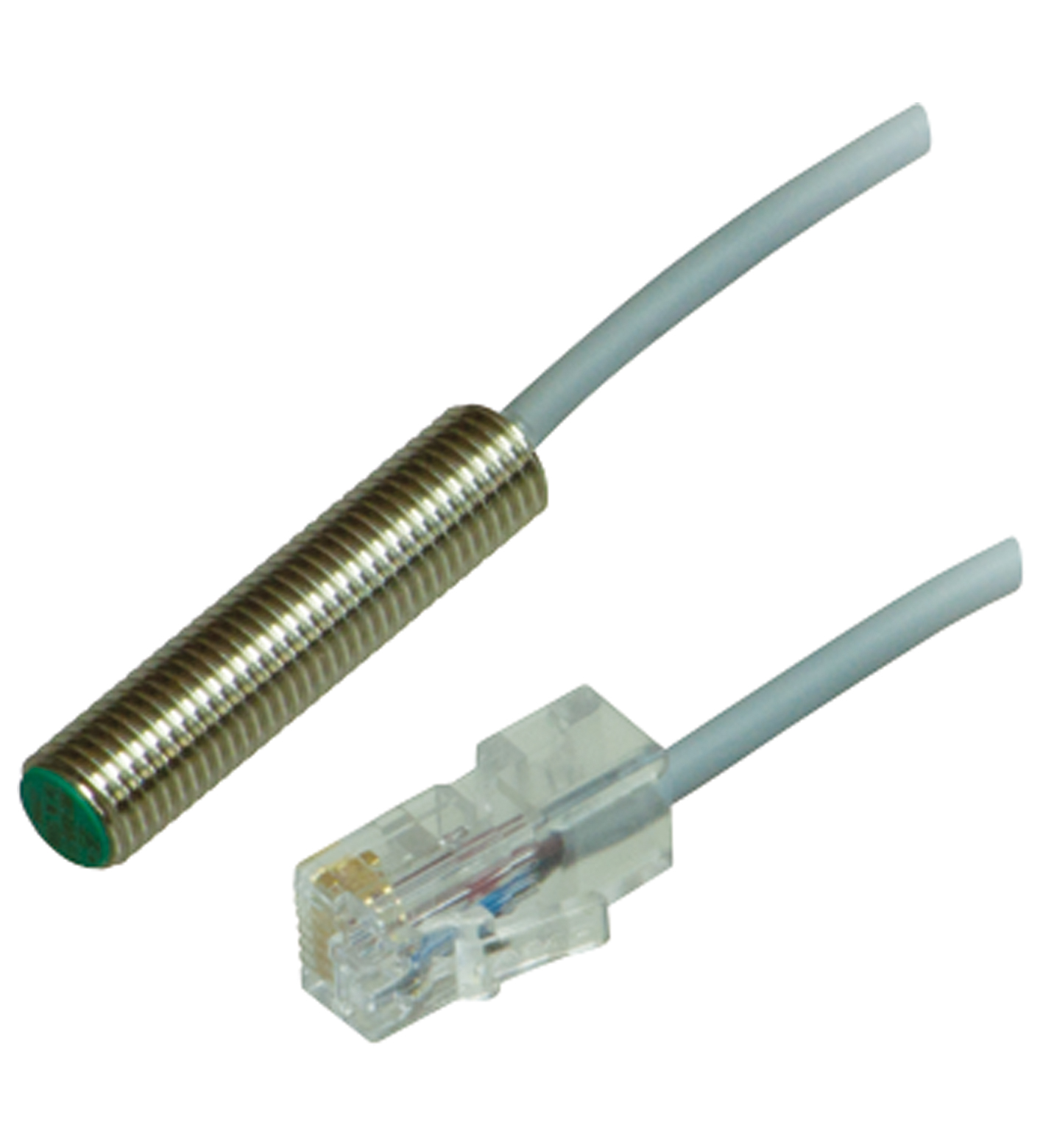

NBB2-8GS35-E1-Y

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction t...

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP65 / IP66 / IP67, Connection assembly: AMP connector RJ11 5-555177-3, Material: PVC. Switching function: Normally closed (NC). Output type: NPN. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 8 mm x 8 mm x 1 mm. Reduction factor rAl: 0.2. Reduction factor rCu: 0.1. Reduction factor r304: 0.55. Reduction factor rBrass: 0.25. Output type: 3-wire. Operating voltage: 5 ... 30 V. Switching frequency: 0 ... 6000 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 0.2 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 100 ms. Switching state indicator: LED, yellow. MTTFd: 960 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cURus Recognized Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA Further UL information see section "Additional Information". CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: LCP. Degree of protection: IP65 / IP66 / IP67. Connector: . Number of pins6Connection assemblyAMP connector RJ11 5-555177-3: . Number of pins: 6. Connection assembly: AMP connector RJ11 5-555177-3. Cable: . MaterialPVCCore cross section0.14 mm2LengthL1.35 m: . Material: PVC. Core cross section: 0.14 mm2. Length: 1.35 m. Dimensions: . Length35 mmDiameter8 mm: . Length: 35 mm. Diameter: 8 mm. Scope of delivery: 2 hex nuts included

Brand	Pepperl Fuchs
Lifecycle status	active
