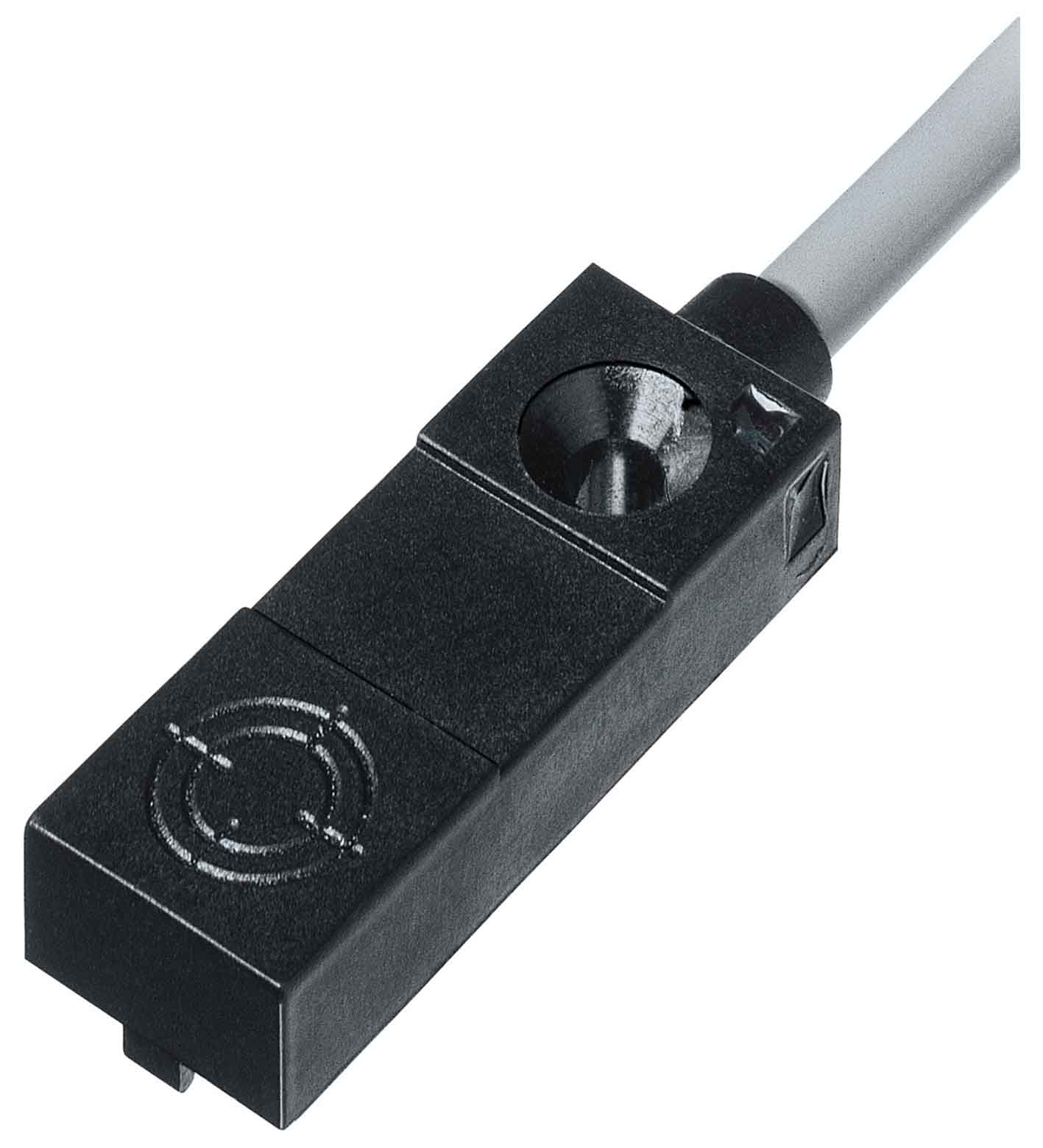

NBB2-F29-E2-5M

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: DC, 3-wire, Construction type: Rectangular, Series: Rectangular type,...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: DC, 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 4.75 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: Ryton R4, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Reduction factor rAl: 0.2. Reduction factor rCu: 0.15. Reduction factor r304: 0.7. Output type: DC, 3-wire. Operating voltage: 4.75 ... 30 V DC. Switching frequency: 0 ... 1000 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 15 mA. Switching state indicator: LED, yellow. MTTFd: 1680 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: Ryton R4. Sensing face: Ryton R4. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3.5 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.14 mm2LengthL5 m: . Wire end ferrules: yes. Cable diameter: 3.5 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.14 mm2. Length: 5 m. Dimensions: . Height6 mmWidth10 mmLength27 mm: . Height: 6 mm. Width: 10 mm. Length: 27 mm

Brand	Pepperl Fuchs
Lifecycle status	active
