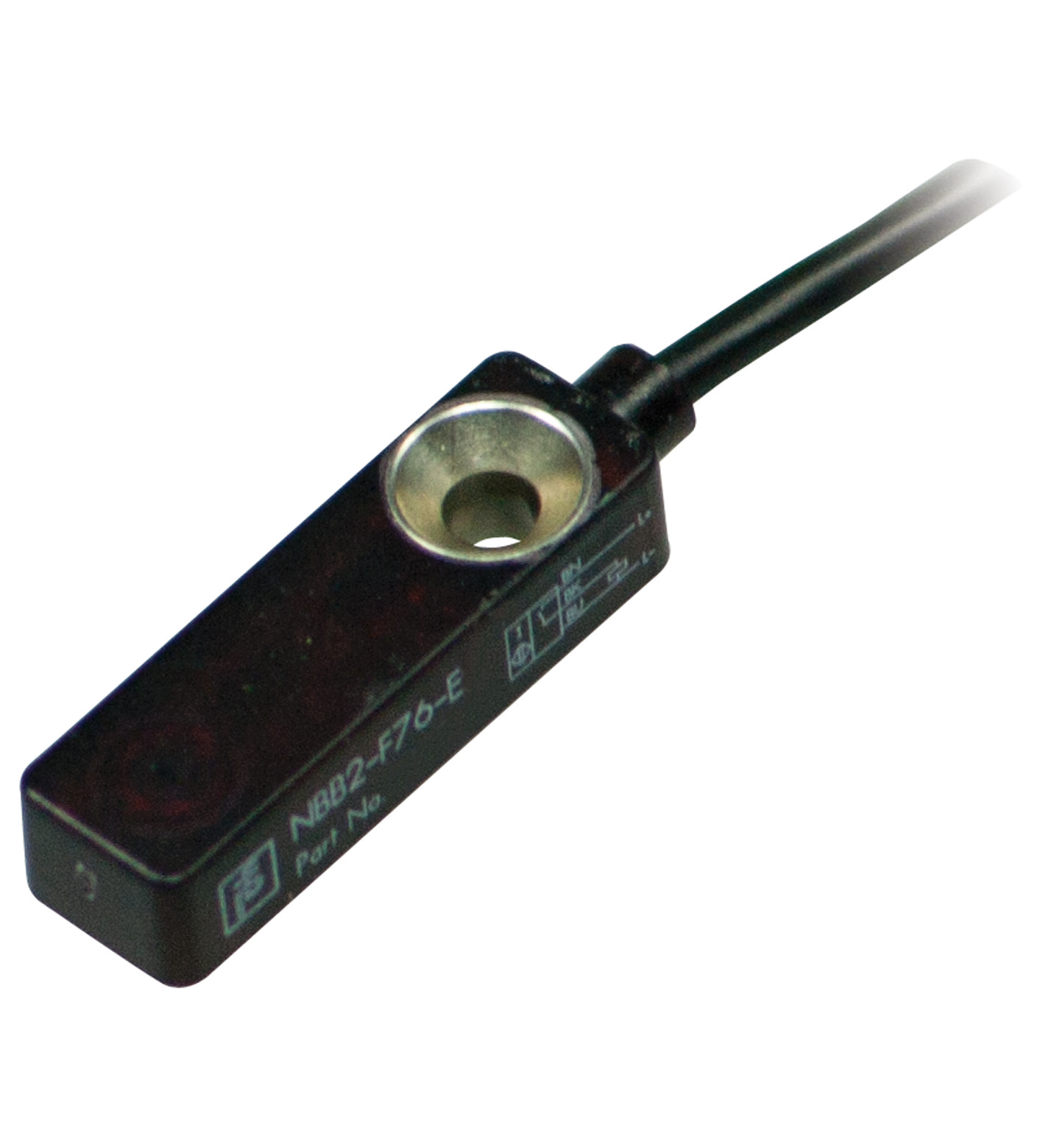

NBB2-F76-E1-0,5M

Inductive sensor. Switching function: Normally closed (NC), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, O...

Inductive sensor. Switching function: Normally closed (NC), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PC, Degree of protection: IP67, Material: PVC. Switching function: Normally closed (NC). Output type: NPN. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Reduction factor rAl: 0.25. Reduction factor rCu: 0.2. Reduction factor r304: 0.63. Reduction factor rBrass: 0.31. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 1500 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 0.5 mA typ. 10 µA at 25 °C. No-load supply current: ≤ 15 mA. Switching state indicator: LED yellow. MTTFd: 828 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: PC. Degree of protection: IP67. Cable: . Cable diameter2.3 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorblackNumber of cores3Core cross section0.09 mm2LengthL0.5 m: . Cable diameter: 2.3 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: black. Number of cores: 3. Core cross section: 0.09 mm2. Length: 0.5 m. Mass: 5 g. Tightening torque, fastening screws: ≤ 0.7 Nm. Dimensions: . Height5.5 mmWidth8 mmLength25 mm: . Height: 5.5 mm. Width: 8 mm. Length: 25 mm

Brand	Pepperl Fuchs
Lifecycle status	active
