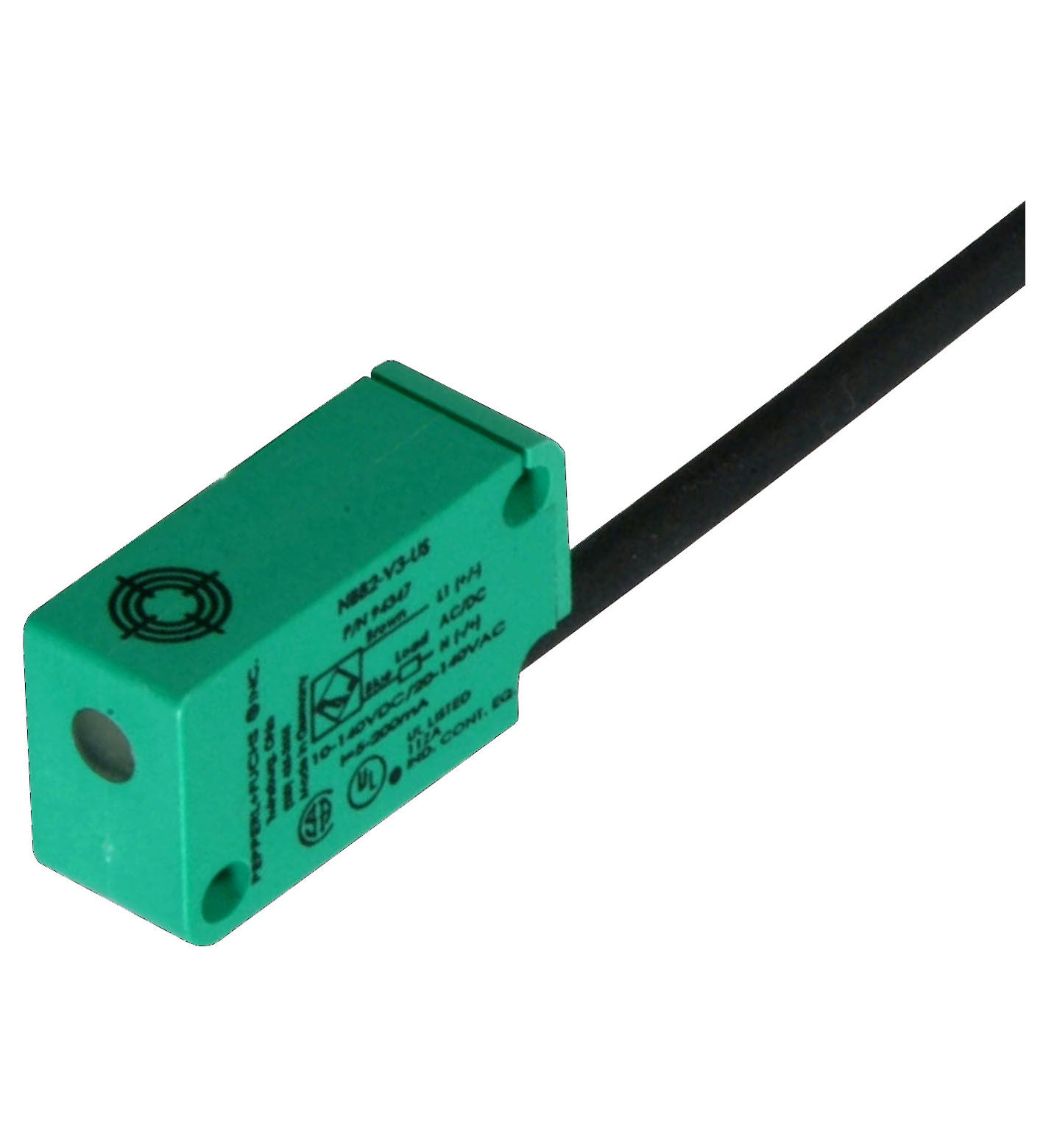

NBB2-V3-US

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: flush mountable, Output polarity: AC/DC, Construction type: Rectangular, Series: Rectangular type, Type o...

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: flush mountable, Output polarity: AC/DC, Construction type: Rectangular, Series: Rectangular type, Type of voltage: UC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 2 mm. Installation: flush mountable. Output polarity: AC/DC. Reduction factor rAl: 0.5. Reduction factor rCu: 0.46. Reduction factor r304: 0.9. Reduction factor rSt37: 1. Reduction factor rBrass: 0.8. Operating voltage DC: 10 ... 140 V. Operating voltage AC: 20 ... 140 V. Switching frequency: 25 Hz. Reverse polarity protection: no. Short-circuit protection: no. Voltage drop: ≤ 7 V. Operating current: 5 ... 200 mA max. Off-state current: ≤ 0.8 mA. Switching state indicator: LED, red. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Cable: . MaterialPURColorblackNumber of cores2Core cross section0.25 mm2LengthL2 m: . Material: PUR. Color: black. Number of cores: 2. Core cross section: 0.25 mm2. Length: 2 m. Dimensions: . Height10 mmWidth16 mmLength28 mm: . Height: 10 mm. Width: 16 mm. Length: 28 mm

Brand	Pepperl Fuchs
Lifecycle status	active
