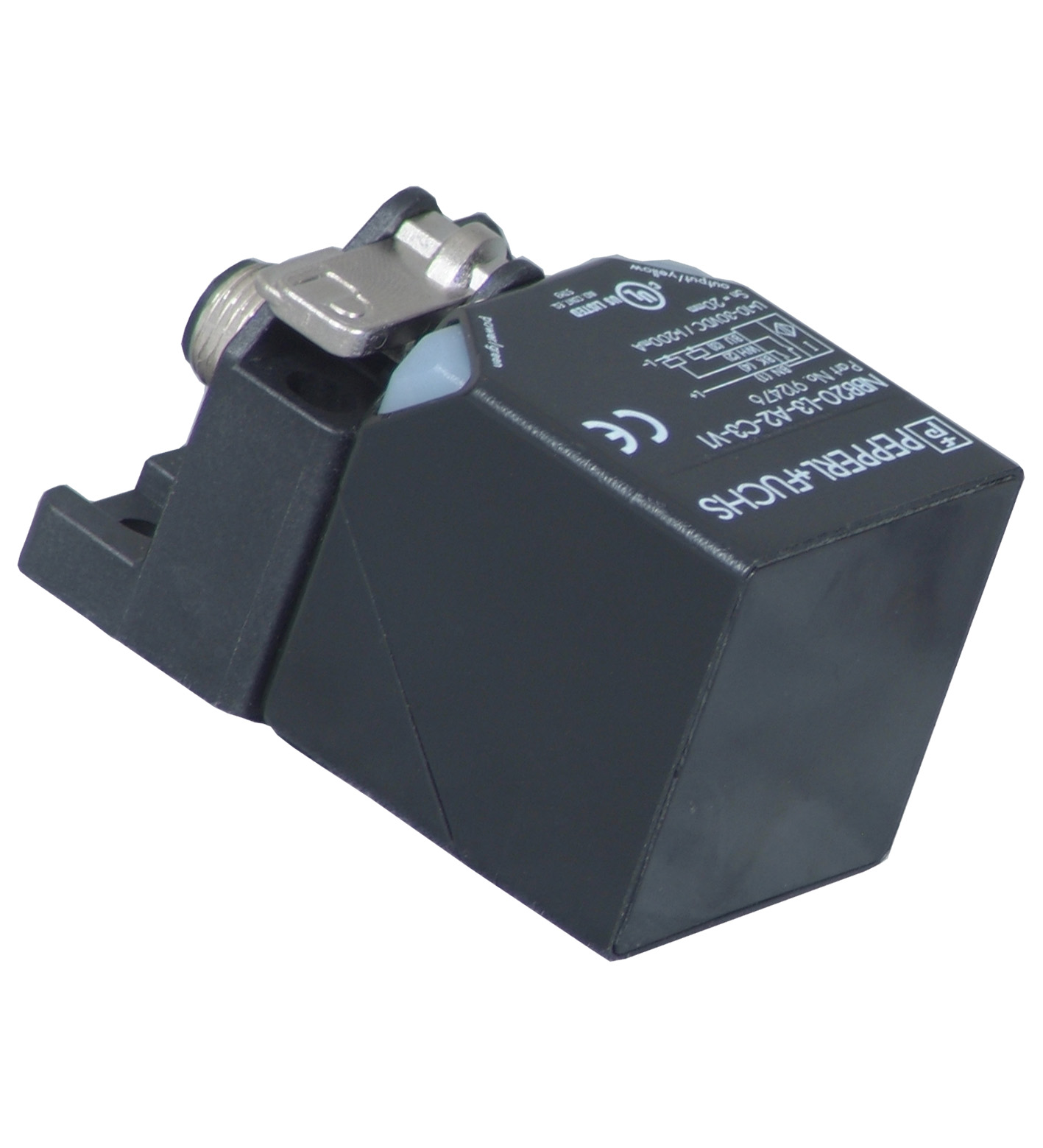

NBB20-L3-A2-C3-V1
Inductive sensor. Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Construction type: <i>VariKont L</i> <sup>®</sup>, Series: <i>Vari...
Inductive sensor. Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Construction type: <i>VariKont L</i> <sup>®</sup>, Series: <i>VariKont L</i> <sup>®</sup>, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: GD-ZnAl4Cu1, coated<br>mounting flange PA6-GF35, Degree of protection: IP67, Threading: M12 x 1. Switching function: complementary. Output type: PNP. Rated operating distance: 20 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 16.2 mm. Actual operating distance: 18 ... 22 mm. Reduction factor rAl: 0.42. Reduction factor rCu: 0.38. Reduction factor r304: 0.75. Reduction factor rBrass: 0.49. Output type: 4-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 5 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.5 mA. No-load supply current: ≤ 20 mA. Time delay before availability: 80 ms. Alternating magnetic field: 200 mT. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 1420 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Housing material: GD-ZnAl4Cu1, coatedmounting flange PA6-GF35. Sensing face: Thermoset Plastic. Housing base: Zinc, PTFE coated. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Height40 mmWidth40 mmLength67 mm: . Height: 40 mm. Width: 40 mm. Length: 67 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
