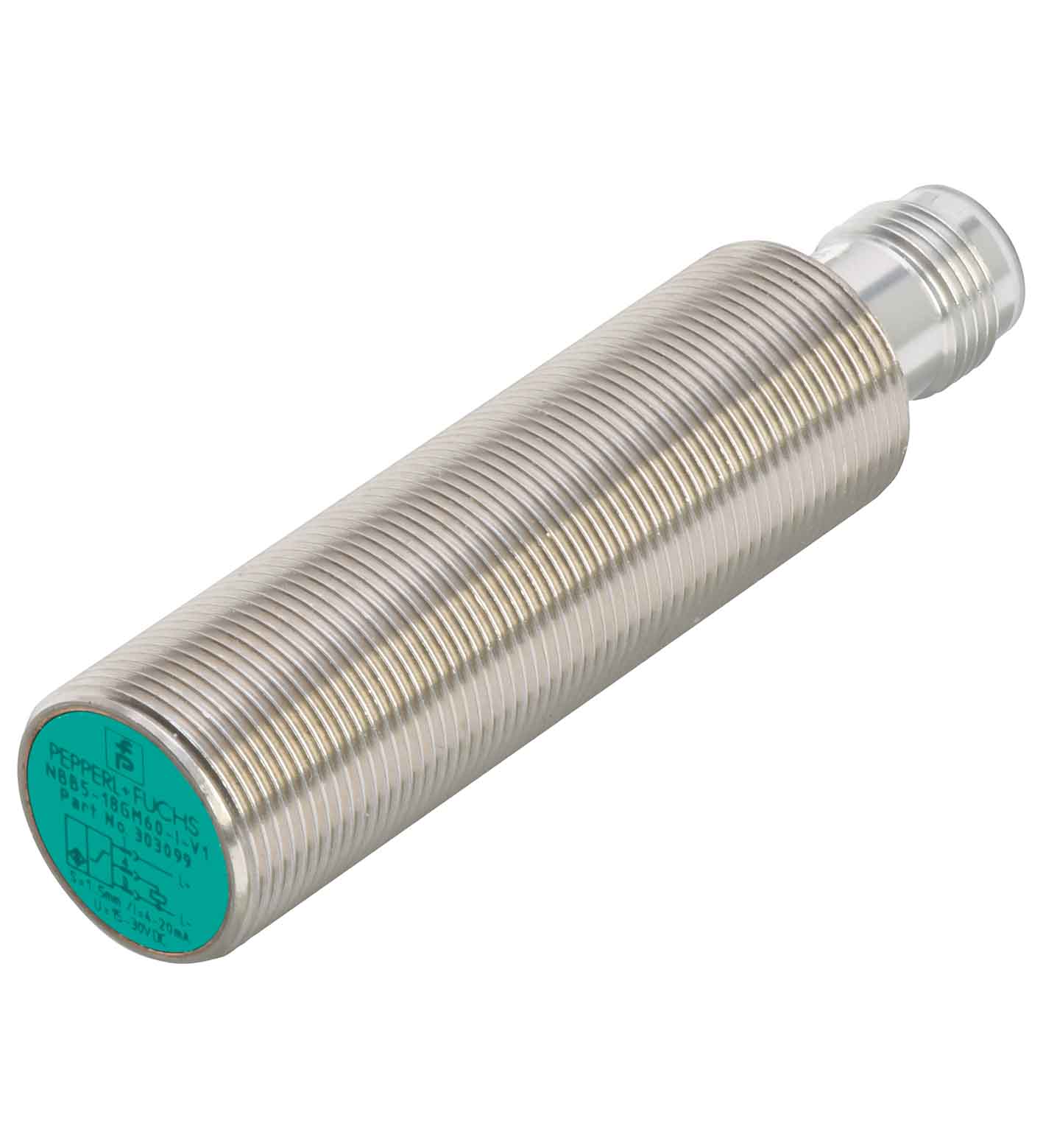

NBB5-18GM60-I-V1

Inductive analog sensor. Output type: Analog current output, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrica...

Inductive analog sensor. Output type: Analog current output, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC typ. 20 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP67, Threading: M12 x 1. Output type: Analog current output. Installation: flush. Output polarity: DC. Measuring range: 1 ... 5 mm. Output type: 3-wire. Operating voltage: 10 ... 30 V DC typ. 20 V DC. Reverse polarity protection: yes. Repeat accuracy: 0 ... 80 µm. No-load supply current: ≤ 12 mA. Output type: 4 ... 20 mA. Slope of output characteristic: 4 mA / mm. Linearity error: ≤ ± 5 % of full-scale value. Load resistor: ≤ 1000 Ω typ. 500 Ω. Rate of current rise: . 4 ... 20 mAmax. 30.9 A/s20 ... 4 mAmax. 11.1 A/s: . 4 ... 20 mA: max. 30.9 A/s. 20 ... 4 mA: max. 11.1 A/s. Recovery time: 1 ... 10 ms , typ. 5 ms. Adjustment tolerance zero point: ≤ ± 5 % of full-scale value. Temperature drift: ≤ ± 0.15 %/K of full-scale value. Residual ripple: ± 125 µA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Dimensions: . Length75 mmDiameter18 mm: . Length: 75 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
