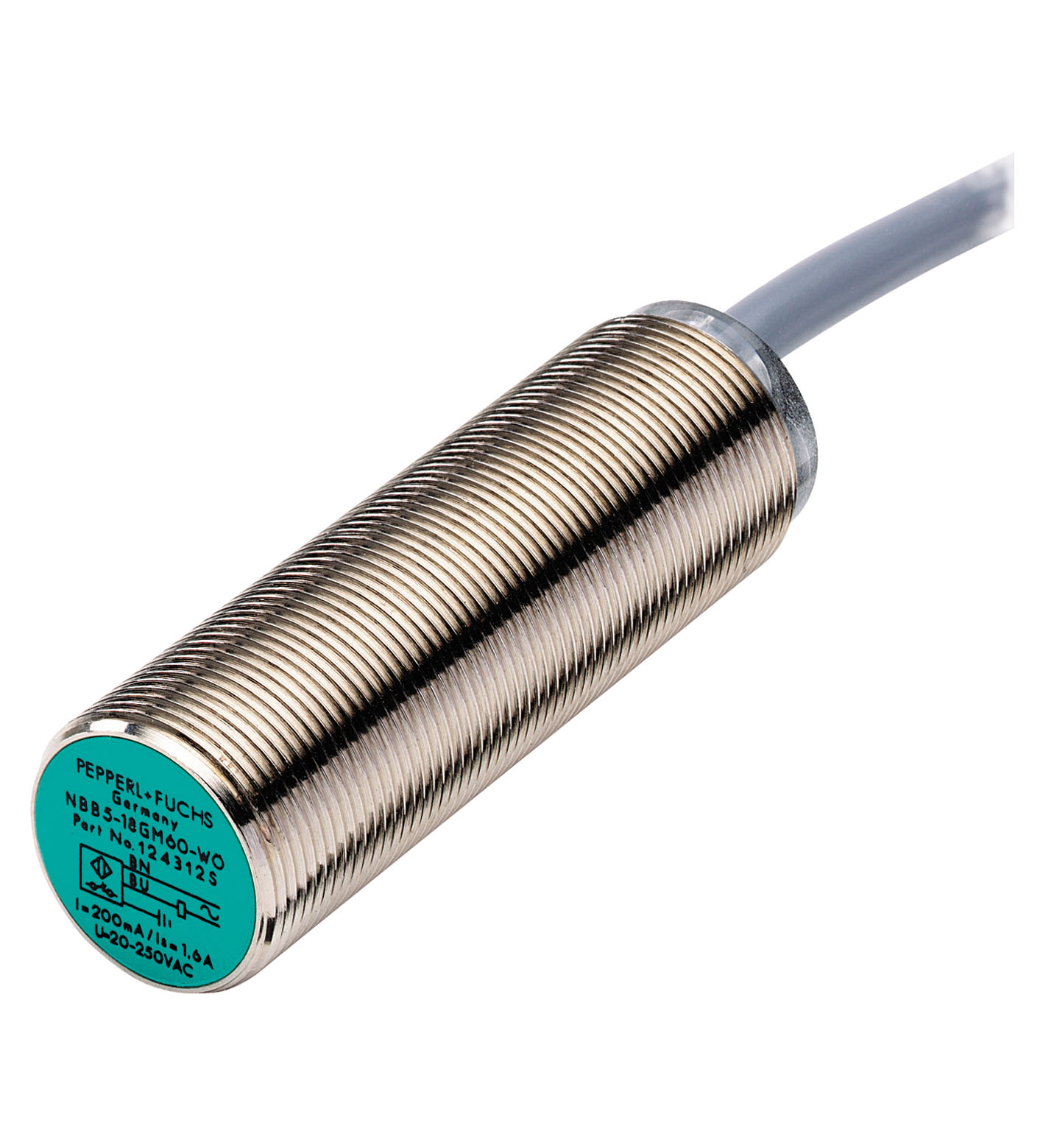

NBB5-18GM60-WO

Inductive sensor. Switching function: Normally closed (NC), Output type: Two-wire, Installation: flush, Output polarity: AC, Output type: 2-wire, Thread mold: M18, Construction type: Cylindrical, thre...

Inductive sensor. Switching function: Normally closed (NC), Output type: Two-wire, Installation: flush, Output polarity: AC, Output type: 2-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: AC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PVC. Switching function: Normally closed (NC). Output type: Two-wire. Rated operating distance: 5 mm. Installation: flush. Output polarity: AC. Assured operating distance: 0 ... 4.05 mm. Actual operating distance: 4.5 ... 5.5 mm typ. 5 mm. Reduction factor rAl: 0.2. Reduction factor rCu: 0.2. Reduction factor r304: 0.6. Output type: 2-wire. Operating voltage: 20 ... 253 V. Switching frequency: 0 ... 20 Hz. Hysteresis: typ. 6 %. Reverse polarity protection: reverse polarity tolerant. Voltage drop: < 5 V (IL > 50 mA); < 8 V (IL < 50 mA). Momentary current(20 ms, 0.1 Hz): 0 ... 1600 mA. Operating current: 5 ... 200 mA. Off-state current: 0 ... 1.7 mA typ.. Time delay before availability: ≤ 30 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 1135 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Enclosure Type Rating: Type 1. CSA approval: cCSAus Listed, General Purpose. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.6 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.6 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Length60 mmDiameter18 mm: . Length: 60 mm. Diameter: 18 mm. Note: 1) In the temperature range below 0 °C, permissible operating voltage Ub 80...253 V Safety fuse ≤ 0.8 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.

Brand	Pepperl Fuchs
Lifecycle status	active
