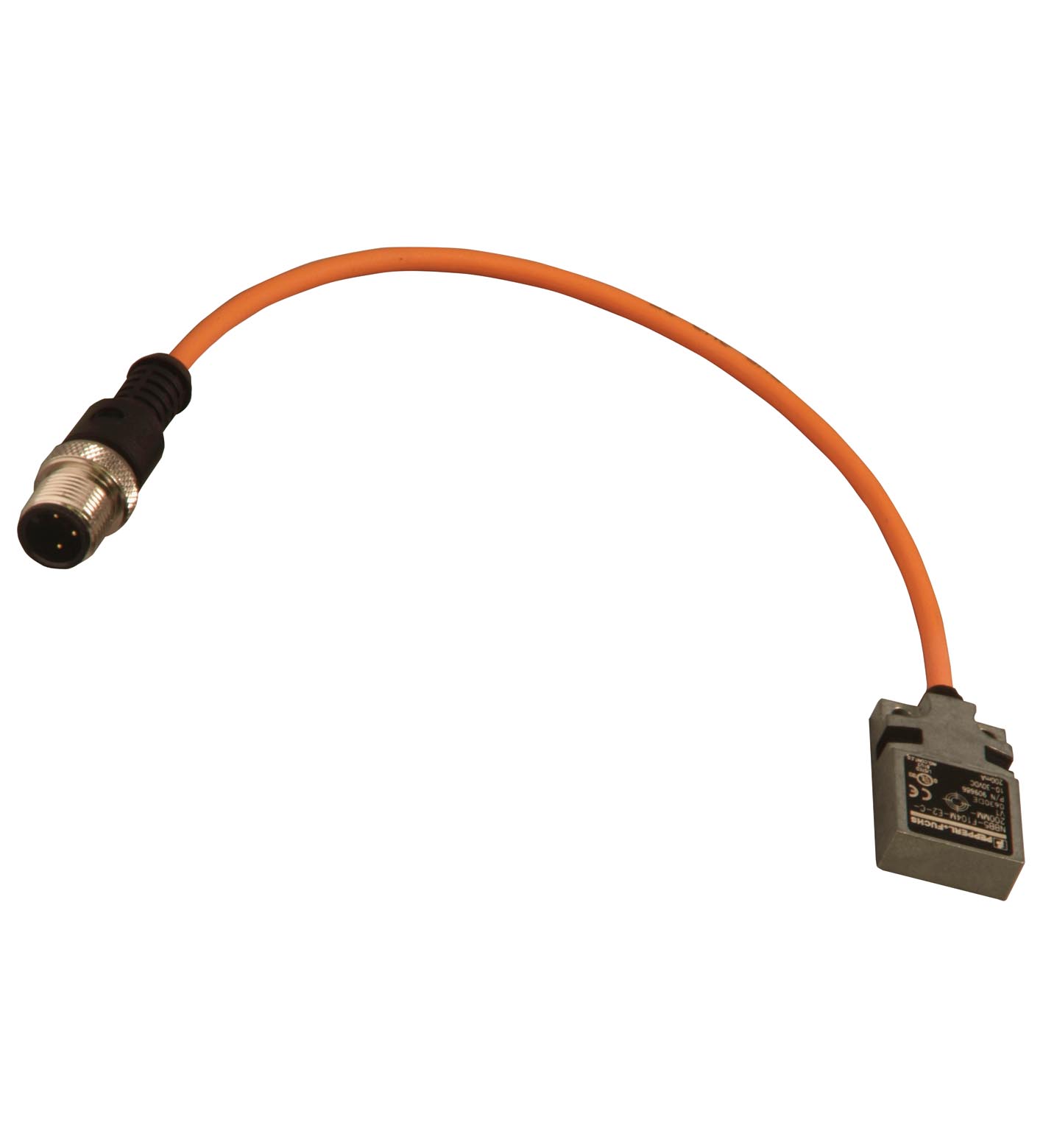

NBB5-F104M-E2-C-200MM-V1

Inductive sensor. Weld immune proximity sensors, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular...

Inductive sensor. Weld immune proximity sensors, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Cable connector M12 x 1 , 4-pin with PUR Cable, 200 mm, Housing material: GD-Zn, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 4 mm. Reduction factor rAl: 0.30 - 0.45. Reduction factor rCu: 0.25 - 0.45. Reduction factor r304: 0.60 - 1.00. Reduction factor rSt37: 1. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 100 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Operating current: 200 mA. Off-state current: ≤ 80 µA. No-load supply current: ≤ 15 mA. Switching state indicator: LED. Standard conformity: . StandardsIEC / EN 60947-5-2:2004: . Standards: IEC / EN 60947-5-2:2004. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Cable connector M12 x 1 , 4-pin with PUR Cable, 200 mm. Core cross section: 0.25 mm2. Housing material: GD-Zn. Sensing face: PA 12. Degree of protection: IP67. Dimensions: . Height8 mmWidth20 mmLength32 mm: . Height: 8 mm. Width: 20 mm. Length: 32 mm

Brand	Pepperl Fuchs
Lifecycle status	active
