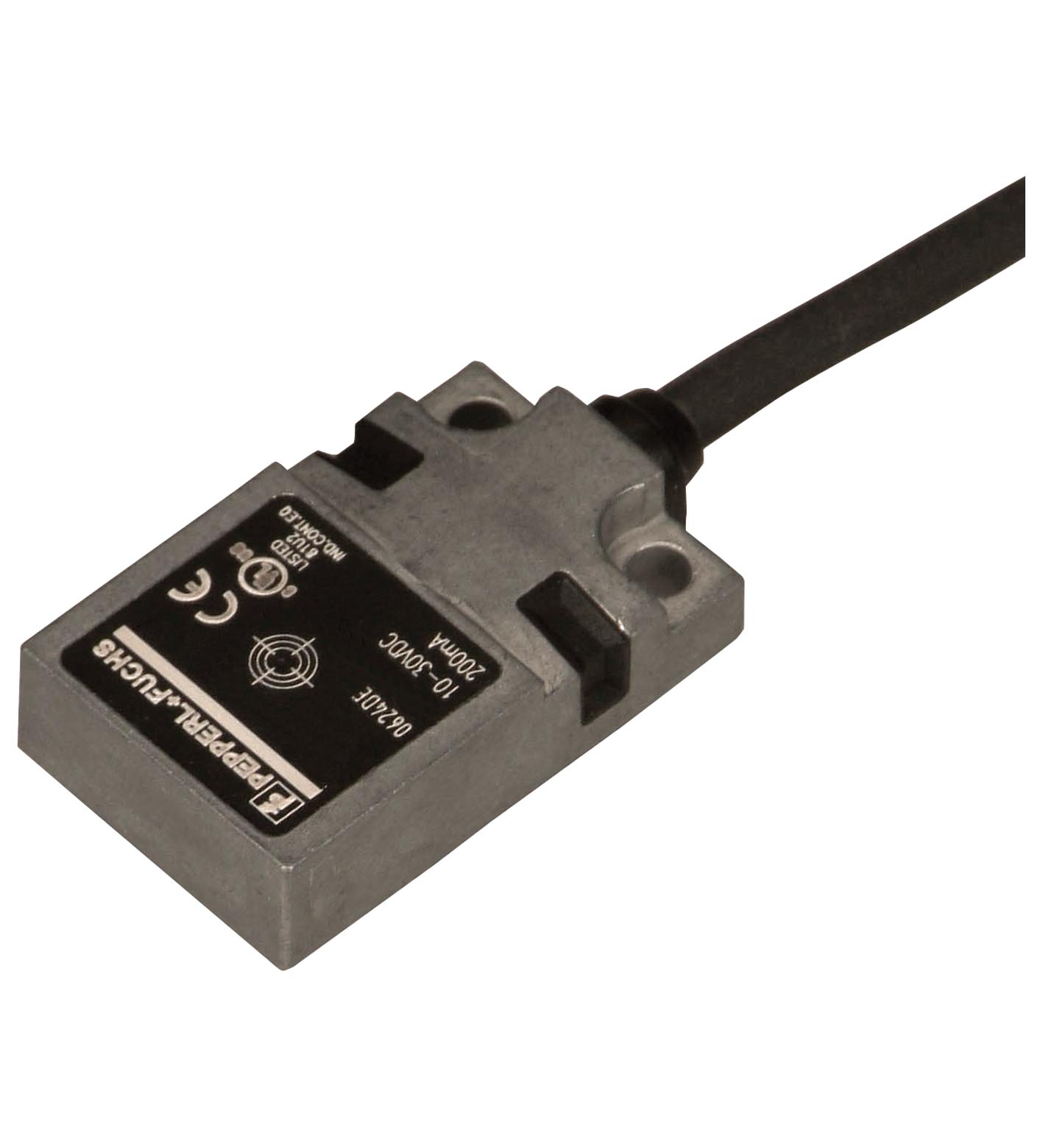

NBB7-F104M-A0

Inductive sensor. Switching function: complementary, Output type: NPN, Installation: flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Operatin...

Inductive sensor. Switching function: complementary, Output type: NPN, Installation: flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: GD-Zn, Degree of protection: IP67, Material: PUR. Switching function: complementary. Output type: NPN. Rated operating distance: 7 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 5.6 mm. Reduction factor rAl: 0.30 - 0.45. Reduction factor rCu: 0.25 - 0.45. Reduction factor r304: 0.60 - 1.00. Reduction factor rSt37: 1. Output type: 4-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 150 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Operating current: 200 mA. Off-state current: ≤ 80 µA. No-load supply current: ≤ 15 mA. Switching state indicator: LED. Standard conformity: . StandardsIEC / EN 60947-5-2:2004: . Standards: IEC / EN 60947-5-2:2004. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: GD-Zn. Sensing face: PA 12. Degree of protection: IP67. Cable: . MaterialPURColorblackNumber of cores4Core cross section0.14 mm2LengthL2 m: . Material: PUR. Color: black. Number of cores: 4. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Height8 mmWidth20 mmLength32 mm: . Height: 8 mm. Width: 20 mm. Length: 32 mm

Brand	Pepperl Fuchs
Lifecycle status	active
