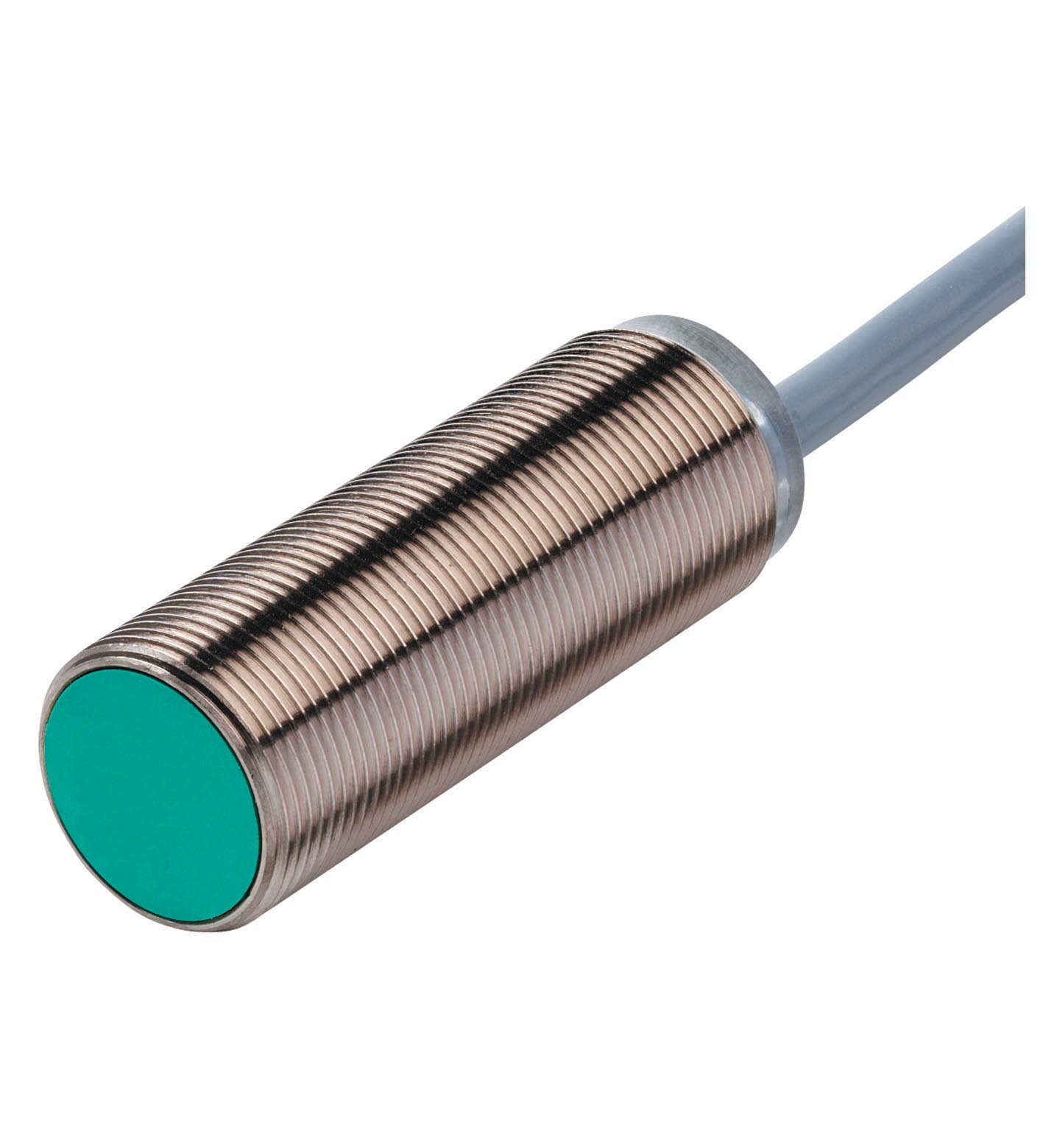

NBB8-18GM50-E2-M-150MM-3DT04-Y

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction ty...

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: brass, nickel-plated, Degree of protection: IP68 / IP69K, Connection assembly: Deutsch connector DT04-3P-C015 <BR>Deutsch contact 1060-16-0622 <BR>Deutsch wedge W3P, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 8 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 6.48 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.4. Reduction factor r304: 0.7. Reduction factor rBrass: 0.45. Output type: 3-wire. Operating voltage: 5 ... 60 V. Switching frequency: 0 ... 1500 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: yes. Short-circuit protection: yes. Inductive overvoltage protection: yes. Surge suppression: yes. Voltage drop: ≤ 2 V. Rated insulation voltage: 60 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 7 mA. Time delay before availability: ≤ 220 ms. Switching state indicator: LED : yellow Output. MTTFd: 1085.5 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cURus Recognized Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA Further UL information see section "Additional Information". Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP68 / IP69K. Connector: . Connection assemblyDeutsch connector DT04-3P-C015 Deutsch contact 1060-16-0622 Deutsch wedge W3P: . Connection assembly: Deutsch connector DT04-3P-C015 Deutsch contact 1060-16-0622 Deutsch wedge W3P. Cable: . Cable diameter6 mm ± 0.2 mmBending radius> 6 x cable diameterMaterialPURColorgreyNumber of cores3Core cross section0.75 mm2LengthLL = 150 mm: . Cable diameter: 6 mm ± 0.2 mm. Bending radius: > 6 x cable diameter. Material: PUR. Color: grey. Number of cores: 3. Core cross section: 0.75 mm2. Length: L = 150 mm. Dimensions: . Length50 mmDiameter18 mm: . Length: 50 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
