Pepperl Fuchs

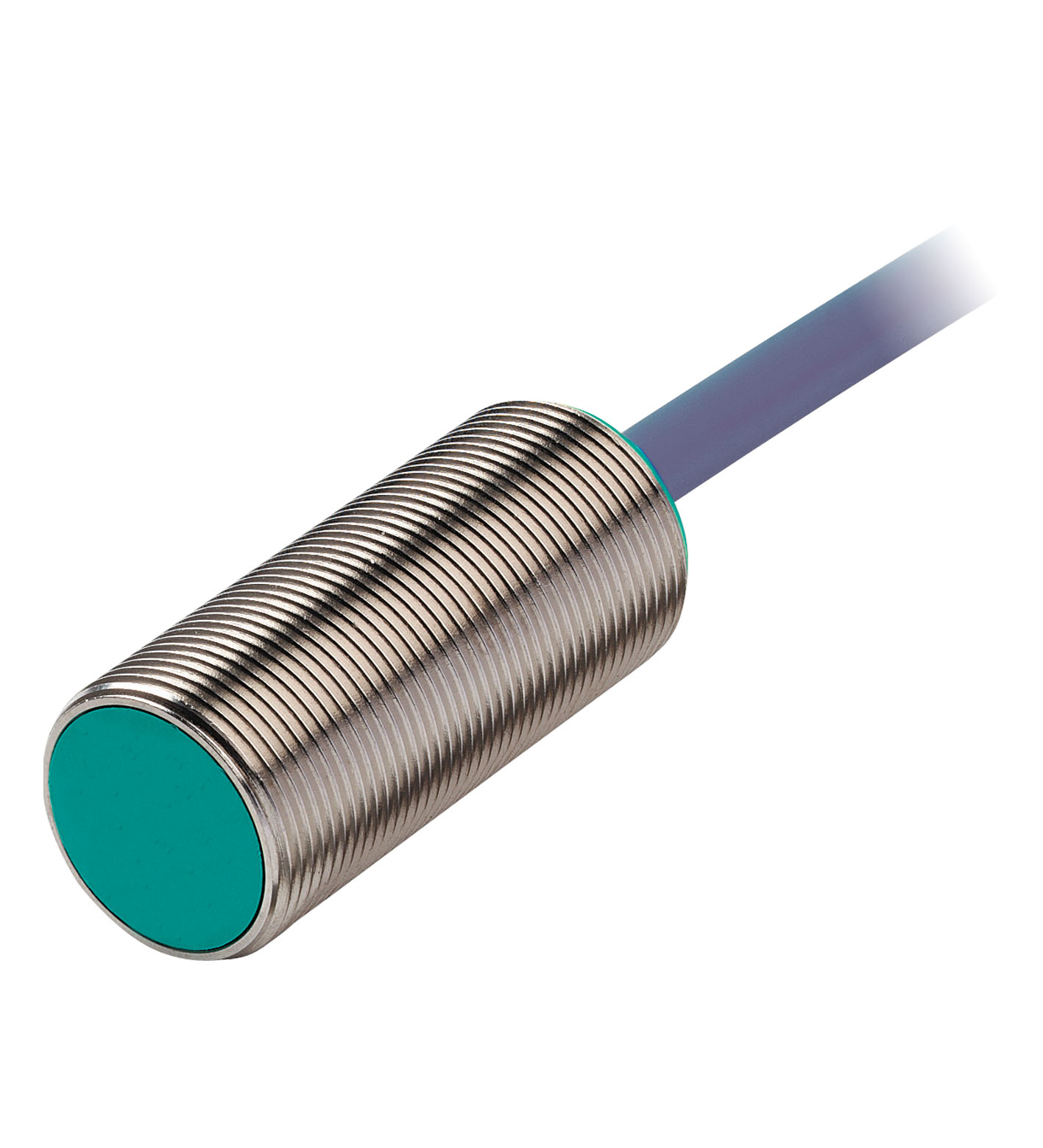

NBB8-30GM60-I3

Inductive analog sensor. Output type: Analog current output, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 15 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PVC. Output type: Analog current output. Installation: flush. Output polarity: DC. Measuring range: 3 ... 8 mm. Output type: 3-wire. Operating voltage: 15 ... 30 V DC. Repeat accuracy: 0 ... 200 µm. Recovery time: 1 ... 10 ms typ. 5 ms. No-load supply current: ≤ 12 mA. Output type: 0 ... 20 mA. Slope of output characteristic: 4 mA / mm. Linearity error: ≤ ± 5 % of full-scale value. Load resistor: ≤ 500 Ω. Rate of current rise: . 0 ... 20 mA≤ 50 A/s20 ... 0 mA≤ 20 A/s: . 0 ... 20 mA: ≤ 50 A/s. 20 ... 0 mA: ≤ 20 A/s. Temperature drift: ≤ ± 0.15 %/K of the measured value. Residual ripple: ± 125 µA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter6.4 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.75 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6.4 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.75 mm2. Length: 2 m. Dimensions: . Length60 mmDiameter30 mm: . Length: 60 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request
