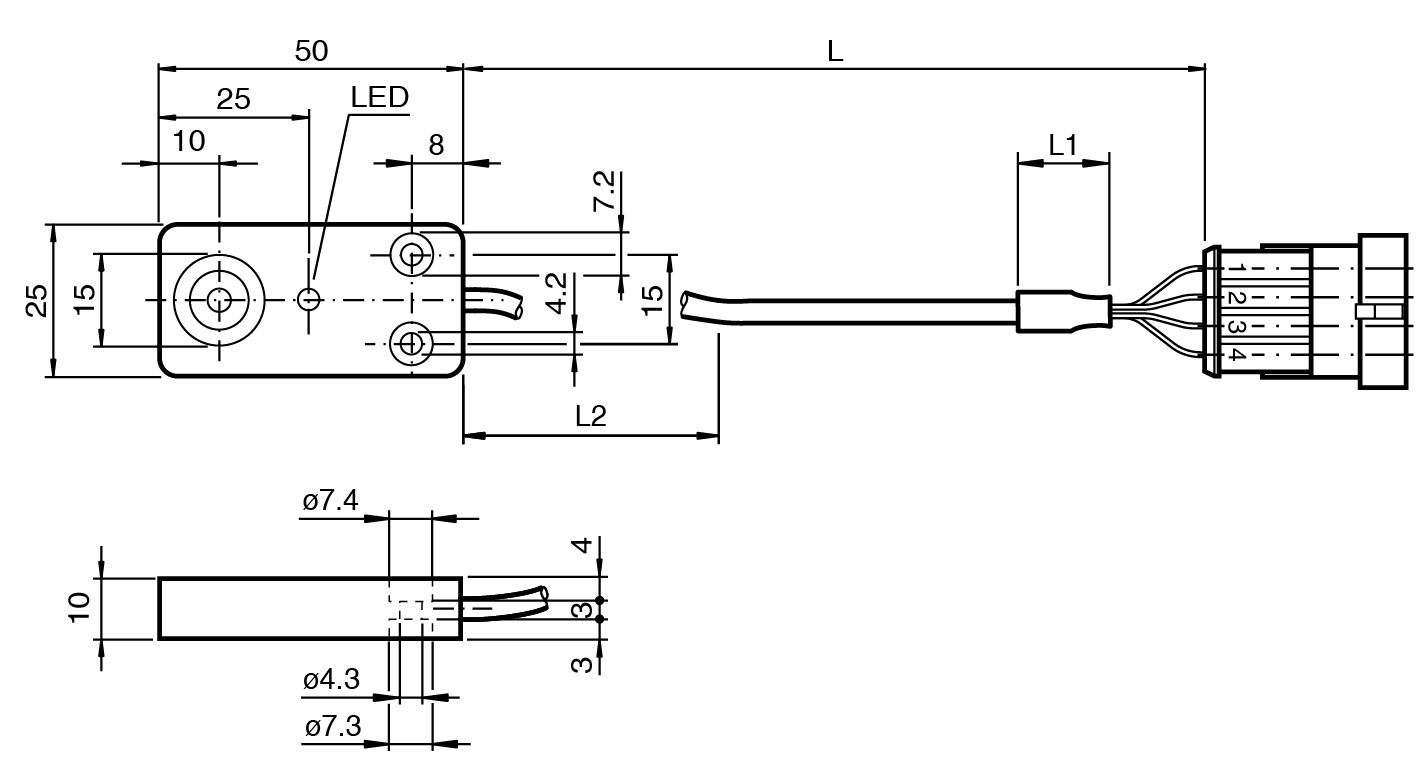

NBB8-F33-A2-Y70198173

Inductive sensor. Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operatin...

Inductive sensor. Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: PBT, black, Degree of protection: IP67 / IP69K, Connection assembly: AMP housing 282106-1 <BR>AMP single wire seal 281934-4 <BR>AMP crimp 282404-1, Connector: AMP connector, Material: PUR, Length: 325 mm ± 5 mm. Switching function: complementary. Output type: PNP. Rated operating distance: 8 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 6.48 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.2. Reduction factor r304: 0.6. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 350 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.5 mA. No-load supply current: ≤ 25 mA. Time delay before availability: ≤ 5 ms. Switching state indicator: LED yellow. MTTFd: 1240 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -35 ... 70 °C (-31 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Housing material: PBT, black. Sensing face: PBT. Degree of protection: IP67 / IP69K. Connector: AMP connector. Number of pins4Connection assemblyAMP housing 282106-1 AMP single wire seal 281934-4 AMP crimp 282404-1: . Number of pins: 4. Connection assembly: AMP housing 282106-1 AMP single wire seal 281934-4 AMP crimp 282404-1. Cable: . Cable diameter4.8 mm ± 0.15 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores4Core cross section0.5 mm2LengthL325 mm ± 5 mmCable protectionL1 = approx. 30 mm: . Cable diameter: 4.8 mm ± 0.15 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 4. Core cross section: 0.5 mm2. Length: 325 mm ± 5 mm. Cable protection: L1 = approx. 30 mm. Dimensions: . Height10 mmWidth25 mmLength50 mm: . Height: 10 mm. Width: 25 mm. Length: 50 mm. Tightening torque: ≤ 5 Nm

Brand	Pepperl Fuchs
Lifecycle status	active
