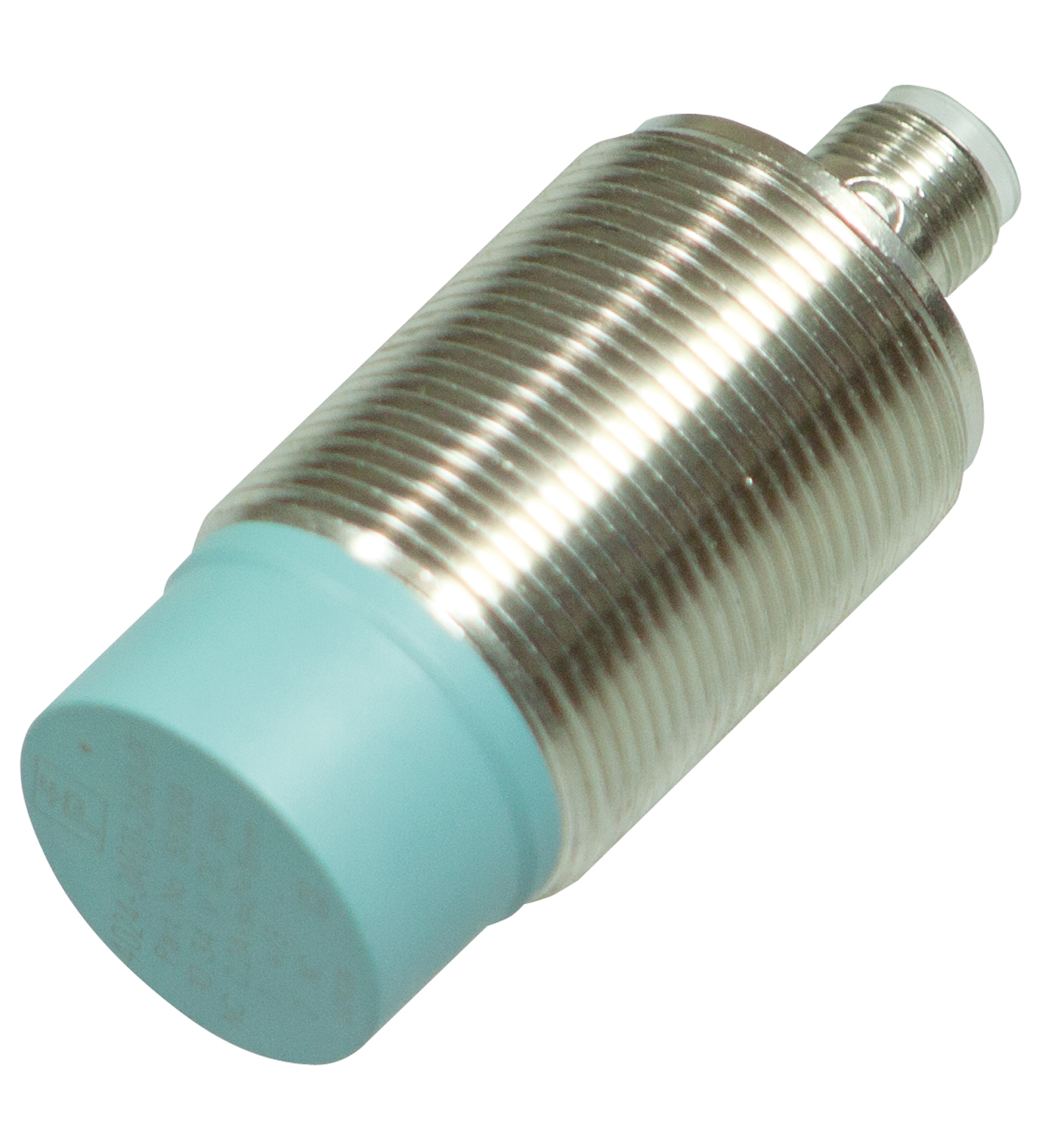

NBN15-30GM50-E3-T-V1

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construct...

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally closed (NC). Output type: PNP. Rated operating distance: 15 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 12.15 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 45 mm x 45 mm x 1 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.7. Reduction factor rBrass: 0.4. Output type: 3-wire. Installation conditions: . A15 mmB30 mmC25 mmF80 mm: . A: 15 mm. B: 30 mm. C: 25 mm. F: 80 mm. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 300 Hz. Hysteresis: 0.04 ... 3.3 mm. Reverse polarity protection: yes. Short-circuit protection: yes. Overload resistance: yes. Wire breakage protection: yes. Inductive overvoltage protection: yes. Ripple: 10 %. Voltage drop: ≤ 2.5 V. Repeat accuracy: 0.4 mm. Operating current: 0 ... 200 mA. Off-state current: ≤ 0.01 mA. No-load supply current: ≤ 7 mA. Time delay before availability: ≤ 40 ms. Switching state indicator: Multihole-LED, yellow. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Circuitry: Class 2 Power Source Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Mass: 107 g. Dimensions: . Length69 mmDiameter30 mm: . Length: 69 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
