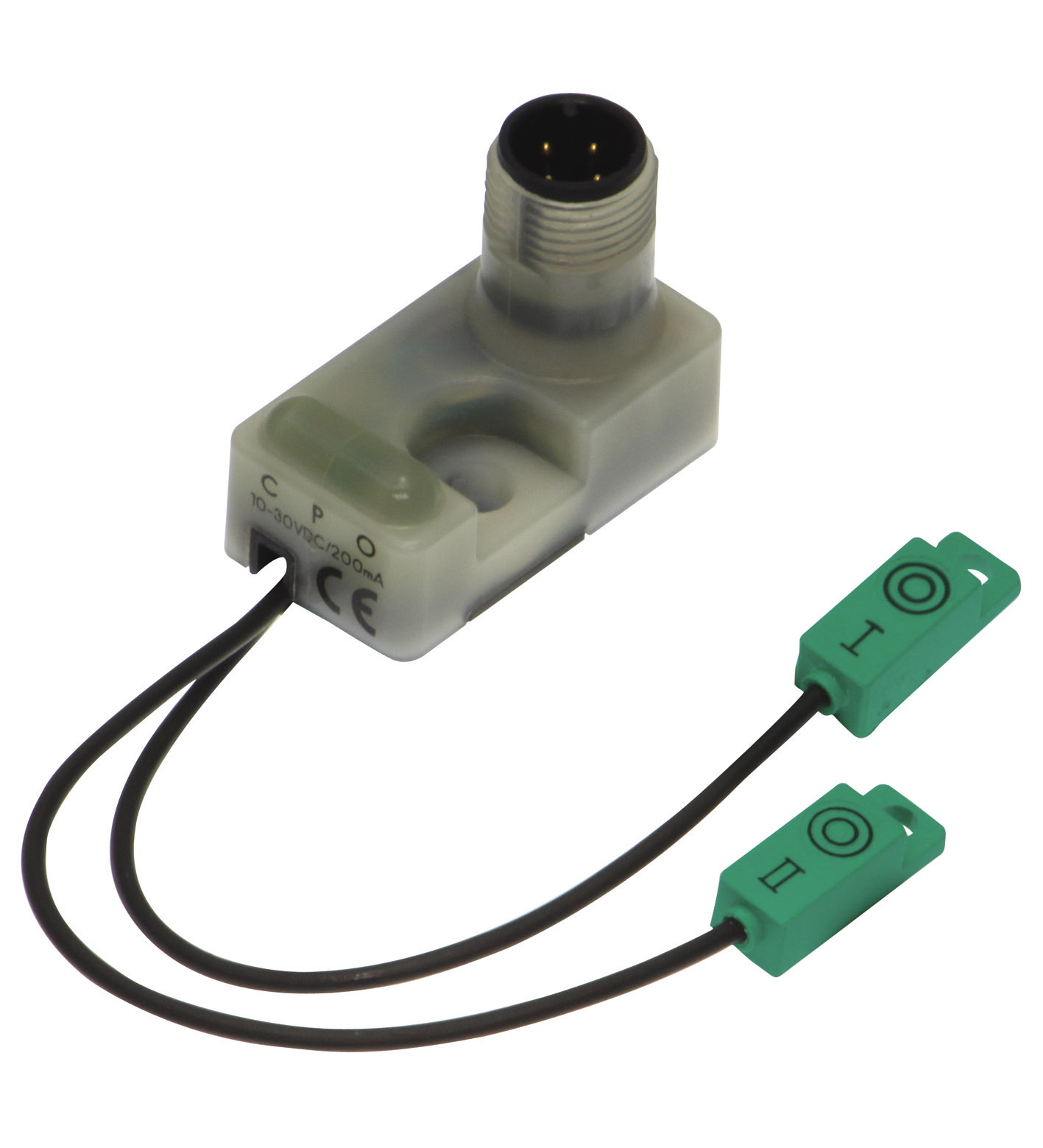

NBN2-F58S-100S3-E8-V1

Inductive power clamp sensor. Switching function: 2 x normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: R...

Inductive power clamp sensor. Switching function: 2 x normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Connection type: Connector plug, Housing material: Amplifier: PA66 Badamid, <br>Oscillators: PBT, Degree of protection: IP65, Threading: M12 x 1. Switching function: 2 x normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Reduction factor rAl: 0.45. Reduction factor rCu: 0.35. Reduction factor r304: 0.75. Output type: 4-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 100 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. No-load supply current: ≤ 15 mA. Constant magnetic field: 100 mT. Alternating magnetic field: 100 mT. Operating voltage indicator: LED green. Switching state indicator: Switching state "closed" = LED red (S2)switching state "open" = LED yellow (S1). MTTFd: 1402 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Flexible lead, housing-sensor: 100 mm , PUR (halogen-free). Housing material: Amplifier: PA66 Badamid, Oscillators: PBT. Degree of protection: IP65. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Height13.8 mmWidth18 mmLength34 mm: . Height: 13.8 mm. Width: 18 mm. Length: 34 mm

Brand	Pepperl Fuchs
Lifecycle status	active
