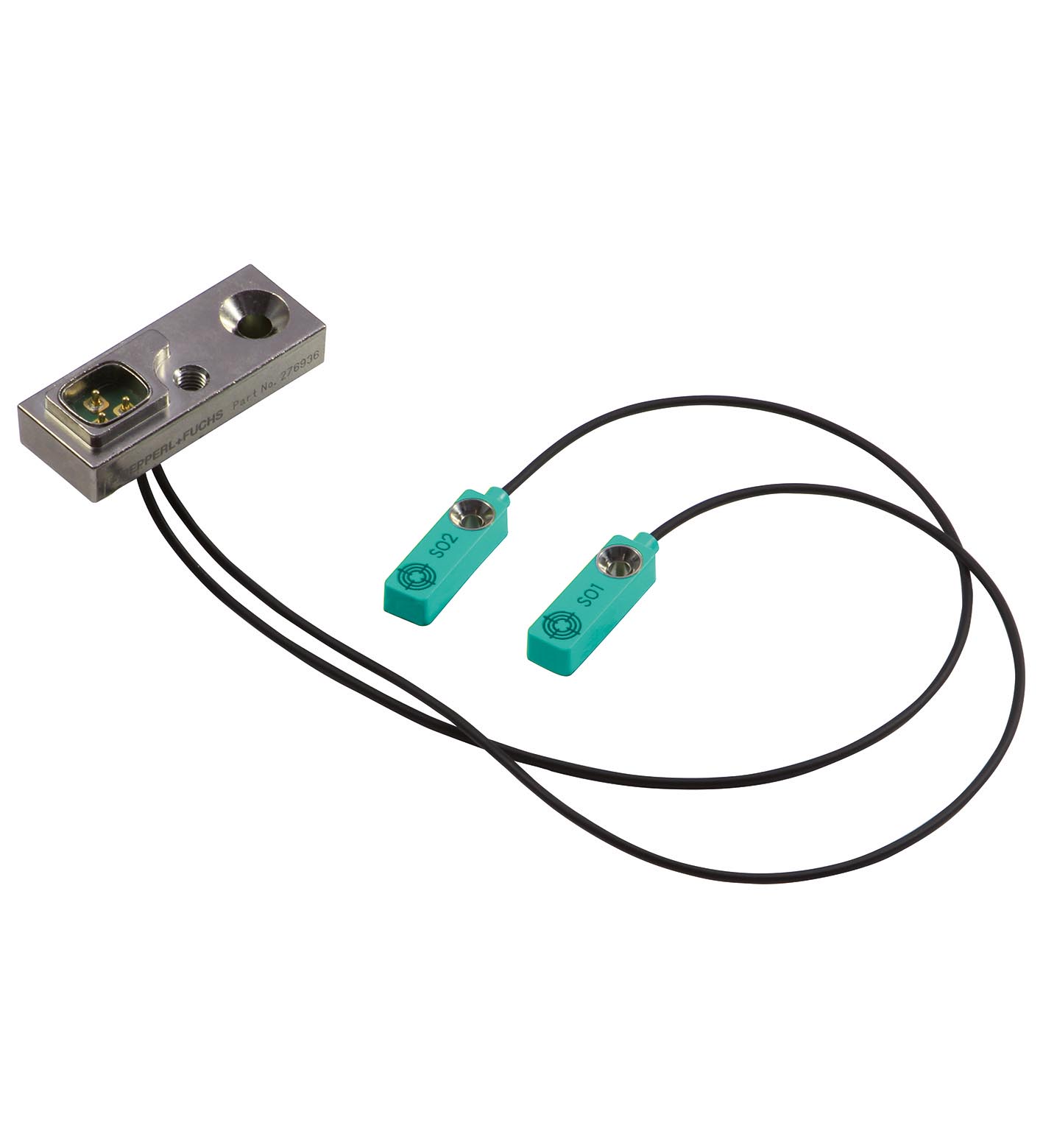

NBN2-F58xxA3-270S15

Inductive power clamp sensor. Installation: non-flush, Construction type: Rectangular, Series: Rectangular type, Connection type: Spring contacts, 3 pins <BR>flexible leads PUR (halogen-free) <BR>L =...

Inductive power clamp sensor. Installation: non-flush, Construction type: Rectangular, Series: Rectangular type, Connection type: Spring contacts, 3 pins <BR>flexible leads PUR (halogen-free) <BR>L = 270 mm ± 5 mm, Housing material: PA 6 / Diecast zinc, Degree of protection: IP65. Rated operating distance: 2 mm. Installation: non-flush. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Various: Listed Accessory. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Spring contacts, 3 pins flexible leads PUR (halogen-free) L = 270 mm ± 5 mm. Housing material: PA 6 / Diecast zinc. Degree of protection: IP65. Dimensions: . Height8 mmWidth18 mmLength47 mm: . Height: 8 mm. Width: 18 mm. Length: 47 mm. Note: only for use with amplifier unit of NBxx-F58A3x3 family

Brand	Pepperl Fuchs
Lifecycle status	active
