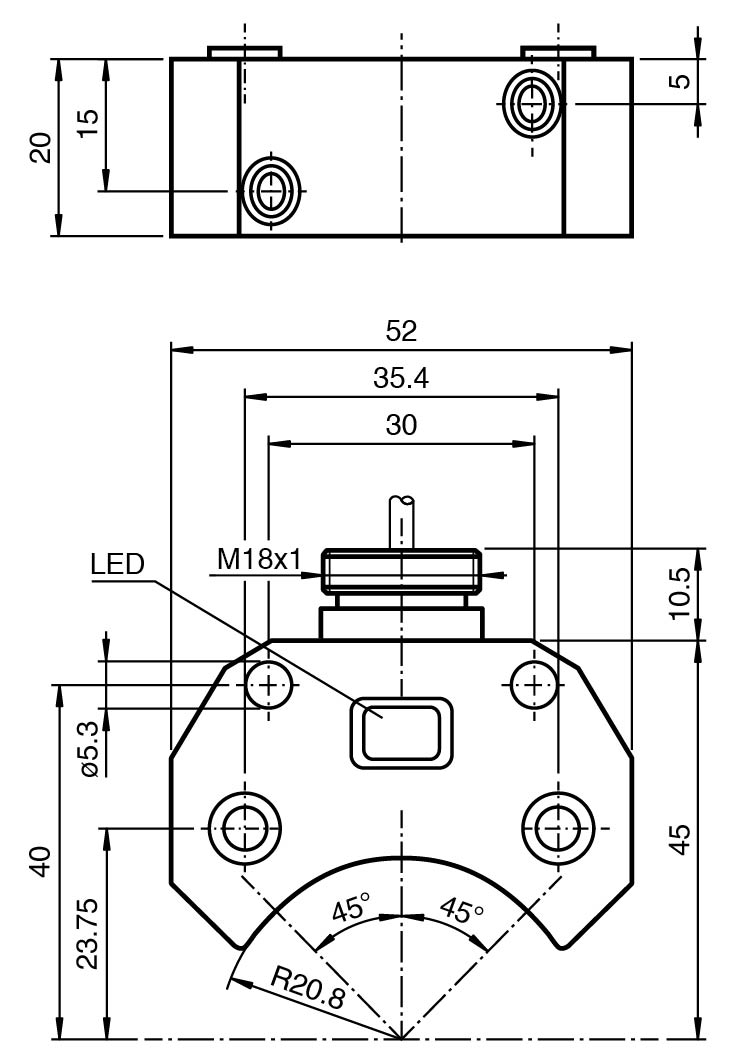

NBN3-F25F-E8-Y47291

Inductive sensor. Valve position detection, Switching function: 2 x normally open (NO), Output type: PNP, Installation: flush mountable, Output polarity: DC, Output type: 3-wire, Construction type: Du...

Inductive sensor. Valve position detection, Switching function: 2 x normally open (NO), Output type: PNP, Installation: flush mountable, Output polarity: DC, Output type: 3-wire, Construction type: Dual sensor, Series: Dual sensor, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PVC. Switching function: 2 x normally open (NO). Output type: PNP. Rated operating distance: 3 mm. Installation: flush mountable. Output polarity: DC. Assured operating distance: 0 ... 2.3 mm. Actual operating distance: 2.6 ... 2.6 mm typ.. Reduction factor rAl: 0.5. Reduction factor r304: 1. Reduction factor rSt37: 1.1. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 500 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: all connections. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 25 mA. Time delay before availability: ≤ 500 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 660 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.8 mm ± 0.1 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores4Core cross section0.34 mm2LengthL5 m: . Wire end ferrules: yes. Cable diameter: 4.8 mm ± 0.1 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 4. Core cross section: 0.34 mm2. Length: 5 m. Tightening torque, fastening screws: M5 x 25 : ≤ 2.7 Nm. Dimensions: . Height20 mmWidth52 mmLength45 mm: . Height: 20 mm. Width: 52 mm. Length: 45 mm. Note: Installation in housing

Brand	Pepperl Fuchs
Lifecycle status	active
