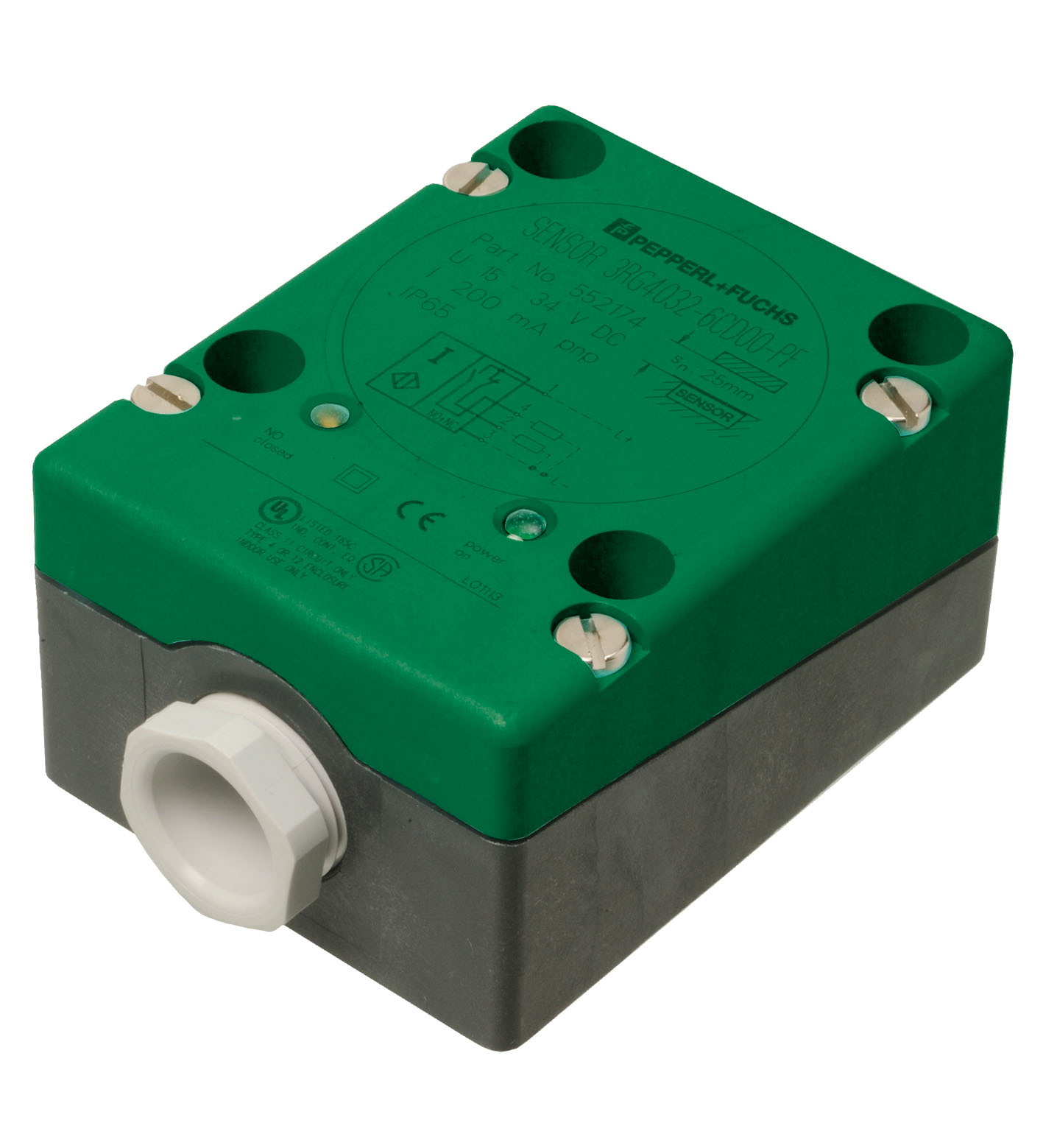

NBN30-FPS-UU

Inductive sensor. Switching function: Normally open/closed (NO/NC), Output type: Two-wire, Installation: non-flush, Output polarity: AC/DC, Output type: 2-wire, Construction type: Rectangular, Series:...

Inductive sensor. Switching function: Normally open/closed (NO/NC), Output type: Two-wire, Installation: non-flush, Output polarity: AC/DC, Output type: 2-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 20 ... 265 V AC/DC, Type of voltage: UC, Connection type: screw terminals, Housing material: PBT, Degree of protection: IP65. Switching function: Normally open/closed (NO/NC). Output type: Two-wire. Rated operating distance: 30 mm. Installation: non-flush. Output polarity: AC/DC. Assured operating distance: 0 ... 24.3 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 90 mm x 90 mm x 1 mm. Reduction factor rAl: 0.2. Reduction factor rCu: 0.1. Reduction factor r304: 0.5. Reduction factor rBrass: 0.2. Output type: 2-wire. Operating voltage: 20 ... 265 V AC/DC. Switching frequency: 0 ... 25 Hz. Hysteresis: 0.05 ... 7.26 mm. Reverse polarity protection: yes. Short-circuit protection: no. Overload resistance: no. Wire breakage protection: yes. Inductive overvoltage protection: yes. Surge suppression: yes. Voltage drop: ≤ 8 V. Repeat accuracy: 0.75 mm. Operating current: 5 ... 300 mA. No-load supply current: ≤ 2 mA. Time delay before availability: ≤ 100 ms. Switching state indicator: LED, yellow. MTTFd: 1730 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: screw terminals. Core cross section: up to 2.5 mm2. Housing material: PBT. Sensing face: PBT. Housing base: PBT. Degree of protection: IP65. Mass: 270 g. Dimensions: . Height41 mmWidth60 mmLength77 mm: . Height: 41 mm. Width: 60 mm. Length: 77 mm. Supplementary information: The default setting of switching function is NO

Brand	Pepperl Fuchs
Lifecycle status	active
