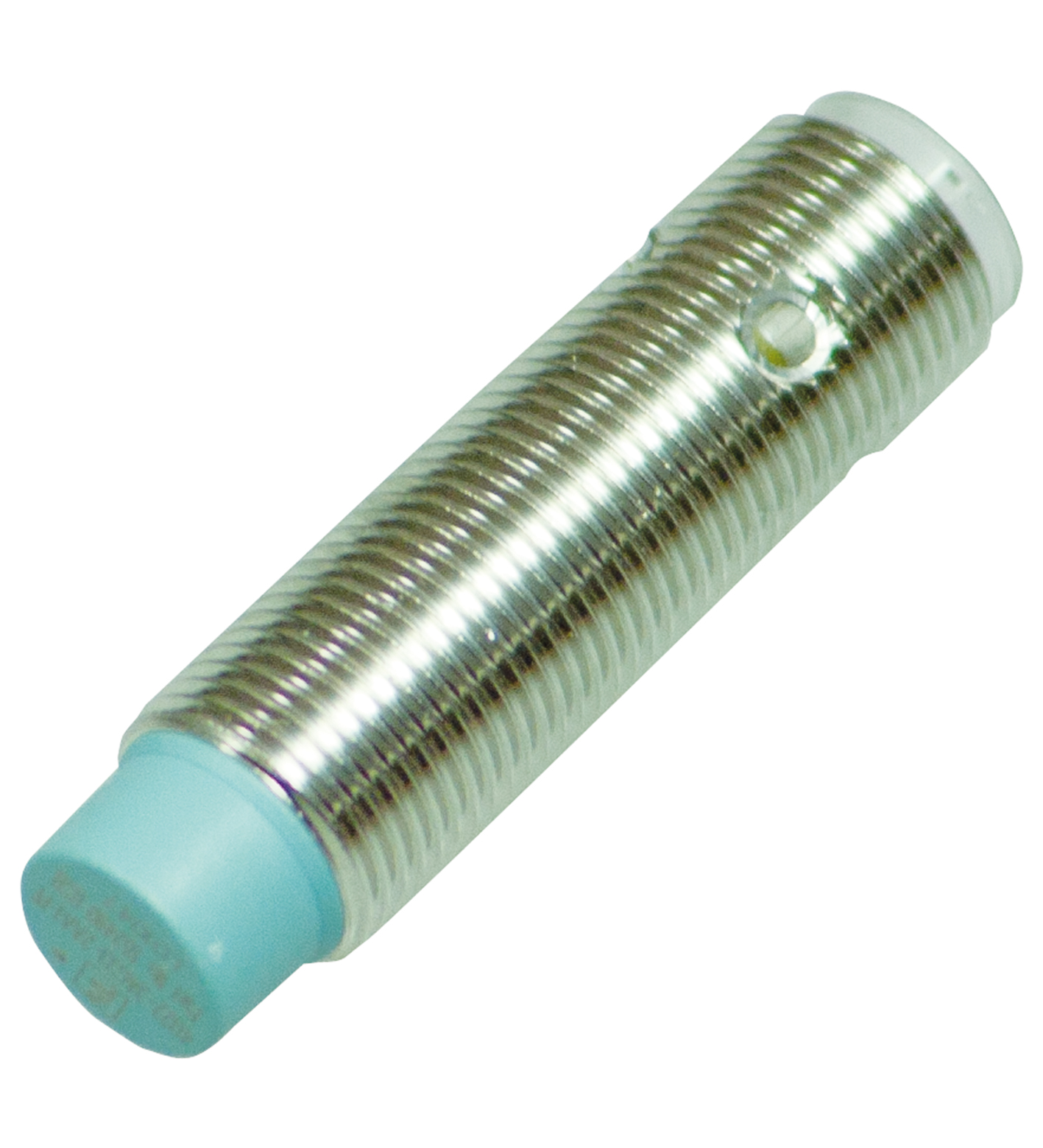

NBN4-12GM60-E2-T-V1

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Constructio...

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 4 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 3.24 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 12 mm x 12 mm x 1 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.4. Reduction factor r304: 0.8. Reduction factor rBrass: 0.5. Output type: 3-wire. Installation conditions: . A8 mmB9 mmC8 mmF27 mm: . A: 8 mm. B: 9 mm. C: 8 mm. F: 27 mm. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 800 Hz. Hysteresis: 0.03 ... 0.88 mm. Reverse polarity protection: yes. Short-circuit protection: yes. Overload resistance: yes. Wire breakage protection: yes. Inductive overvoltage protection: yes. Surge suppression: yes. Ripple: 10 %. Voltage drop: ≤ 2.5 V. Repeat accuracy: 0.2 mm. Operating current: 0 ... 200 mA. Off-state current: ≤ 0.01 mA. No-load supply current: ≤ 7 mA. Time delay before availability: ≤ 40 ms. Switching state indicator: all direction LED, yellow. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Circuitry: Class 2 Power Source Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Mass: 20 g. Dimensions: . Length56 mmDiameter12 mm: . Length: 56 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
