Pepperl Fuchs

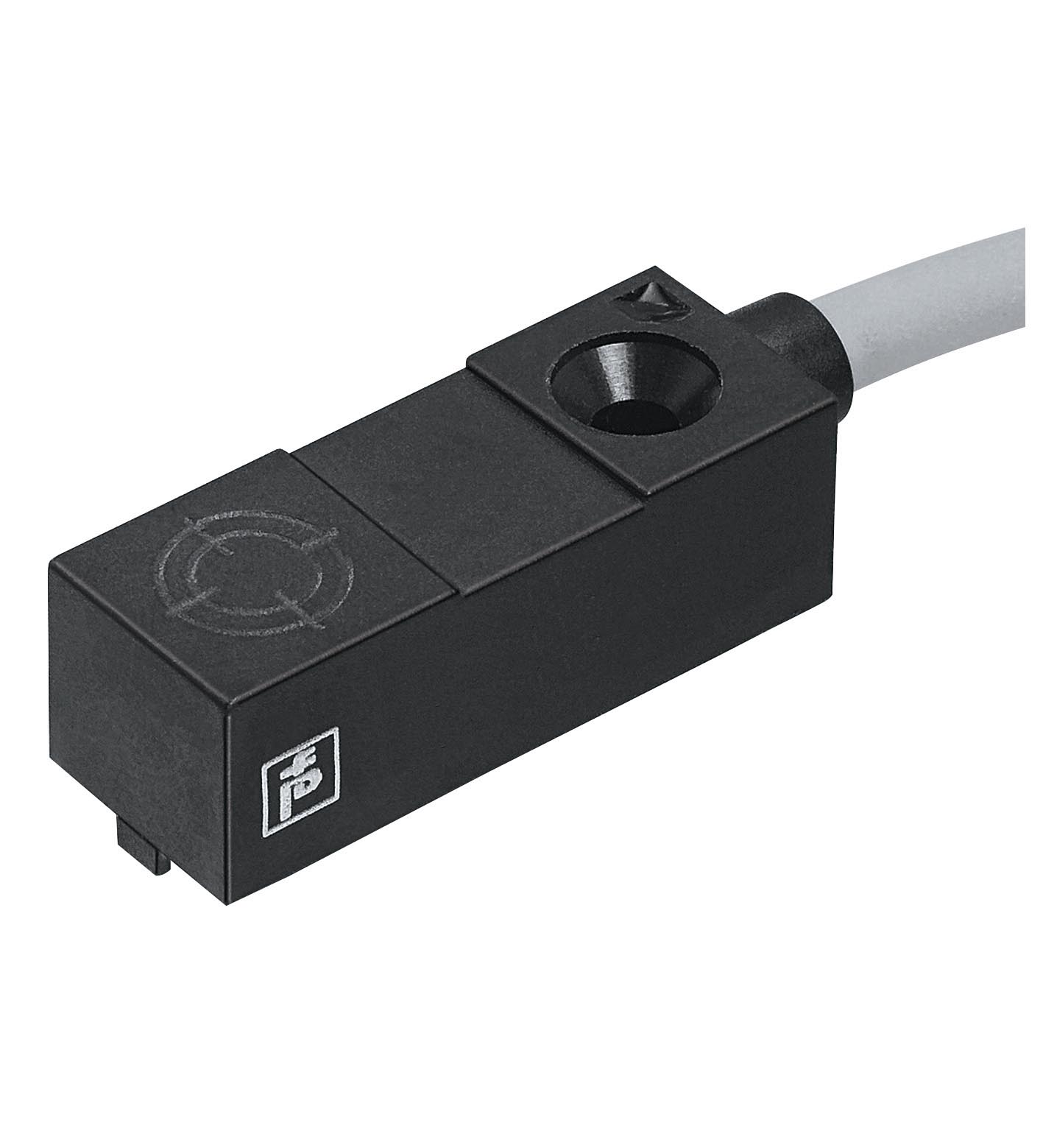

NBN4-F29A-E2-C

Inductive sensor. magnetic field resistant, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable PUR, irradiated , 2 m, Housing material: PPS, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 4 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 3.24 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.7. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 1000 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 5 ms. Constant magnetic field: 200 mT. Alternating magnetic field: 200 mT. Switching state indicator: LED, yellow. MTTFd: 1680 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable PUR, irradiated , 2 m. Core cross section: 0.14 mm2. Housing material: PPS. Sensing face: PPS. Degree of protection: IP67. Dimensions: . Height10 mmWidth27 mmLength9 mm: . Height: 10 mm. Width: 27 mm. Length: 9 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
