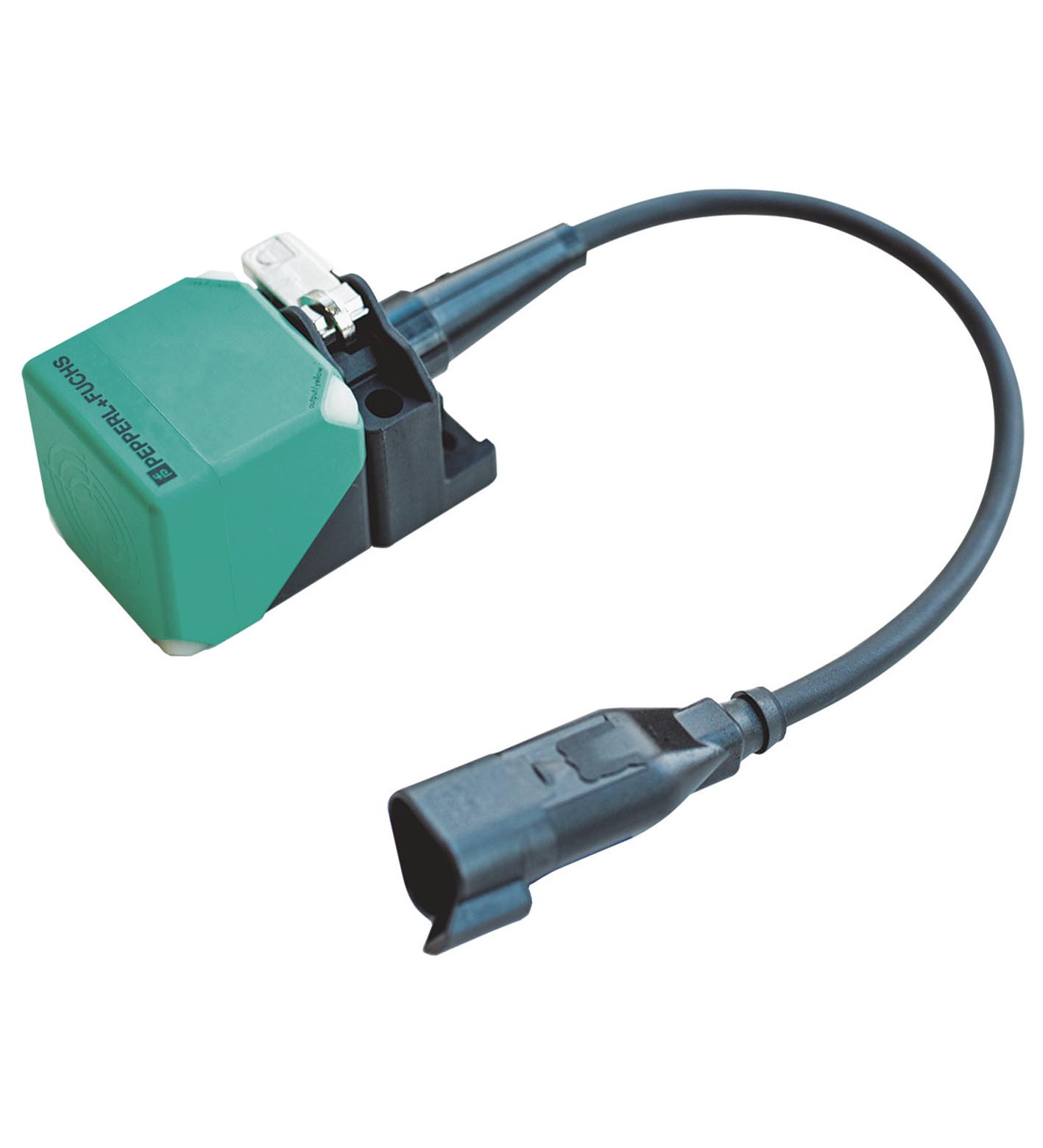

NBN40-L2-E2-220MM-3DT04

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: <i>VariKont L</i> ^®, Series...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: <i>VariKont L</i> ^®, Series: <i>VariKont L</i> ^®, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: PA, Degree of protection: IP68, Connection assembly: Deutsch connector DT04-3P-CE02 <BR>Deutsch wedge W3P <BR>Deutsch contact 1060-16-0622, Connector: Deutsch connector. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 40 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 32.4 mm. Actual operating distance: 36 ... 44 mm. Reduction factor rAl: 0.33. Reduction factor rCu: 0.31. Reduction factor r304: 0.74. Reduction factor rBrass: 0.38. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 180 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.5 mA. No-load supply current: ≤ 20 mA. Time delay before availability: 80 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 1510 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Core cross section: 3 x 0.75 mm2. Housing material: PA. Sensing face: PA. Degree of protection: IP68. Connector: Deutsch connector. Number of pins3Connection assemblyDeutsch connector DT04-3P-CE02 Deutsch wedge W3P Deutsch contact 1060-16-0622: . Number of pins: 3. Connection assembly: Deutsch connector DT04-3P-CE02 Deutsch wedge W3P Deutsch contact 1060-16-0622. Cable: . LengthLL = 220 mm: L. Length: L = 220 mm. Dimensions: . Height40 mmWidth40 mmLength67 mm: . Height: 40 mm. Width: 40 mm. Length: 67 mm

Brand	Pepperl Fuchs
Lifecycle status	active
