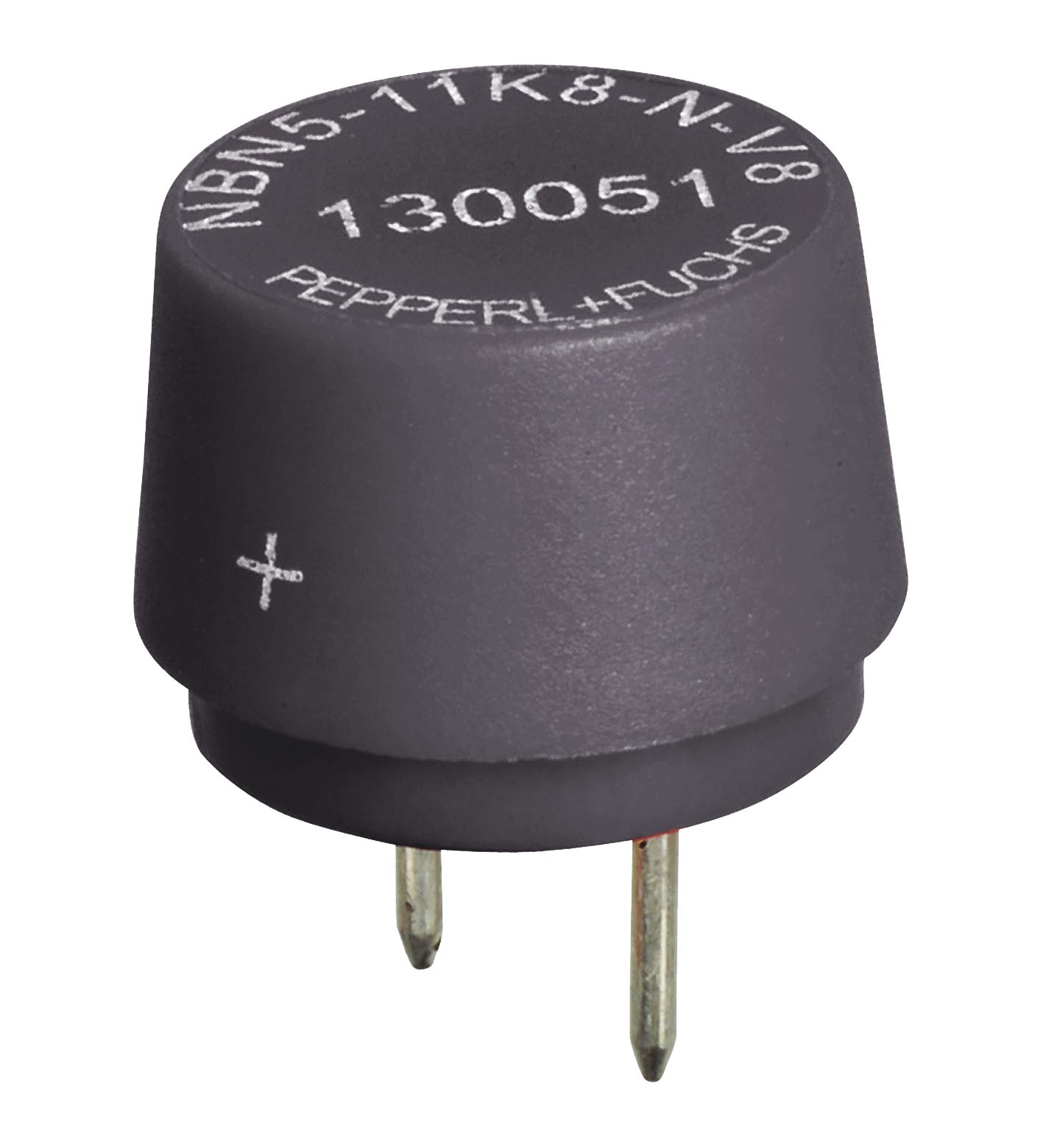

NBN5-11K8-N-V8

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR, Installation: non-flush, Output type: 2-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of vo...

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR, Installation: non-flush, Output type: 2-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: Solder connection, Housing material: PA, Degree of protection: IP67. Switching function: Normally closed (NC). Output type: NAMUR. Rated operating distance: 5 mm. Installation: non-flush. Assured operating distance: 0 ... 4.05 mm. Output type: 2-wire. Operating voltage: 5 ... 15 V. Switching frequency: 0 ... 2000 Hz. Hysteresis: 0.05 ... 0.75 mm. Current consumption: . Measuring plate not detectedmin. 2.7 mAMeasuring plate detected≤ 1.8 mA: . Measuring plate not detected: min. 2.7 mA. Measuring plate detected: ≤ 1.8 mA. MTTFd: 8162 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 8.2 V DC. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Solder connection. Housing material: PA. Degree of protection: IP67. Dimensions: . Length6.5 mmDiameter10 mm: . Length: 6.5 mm. Diameter: 10 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
