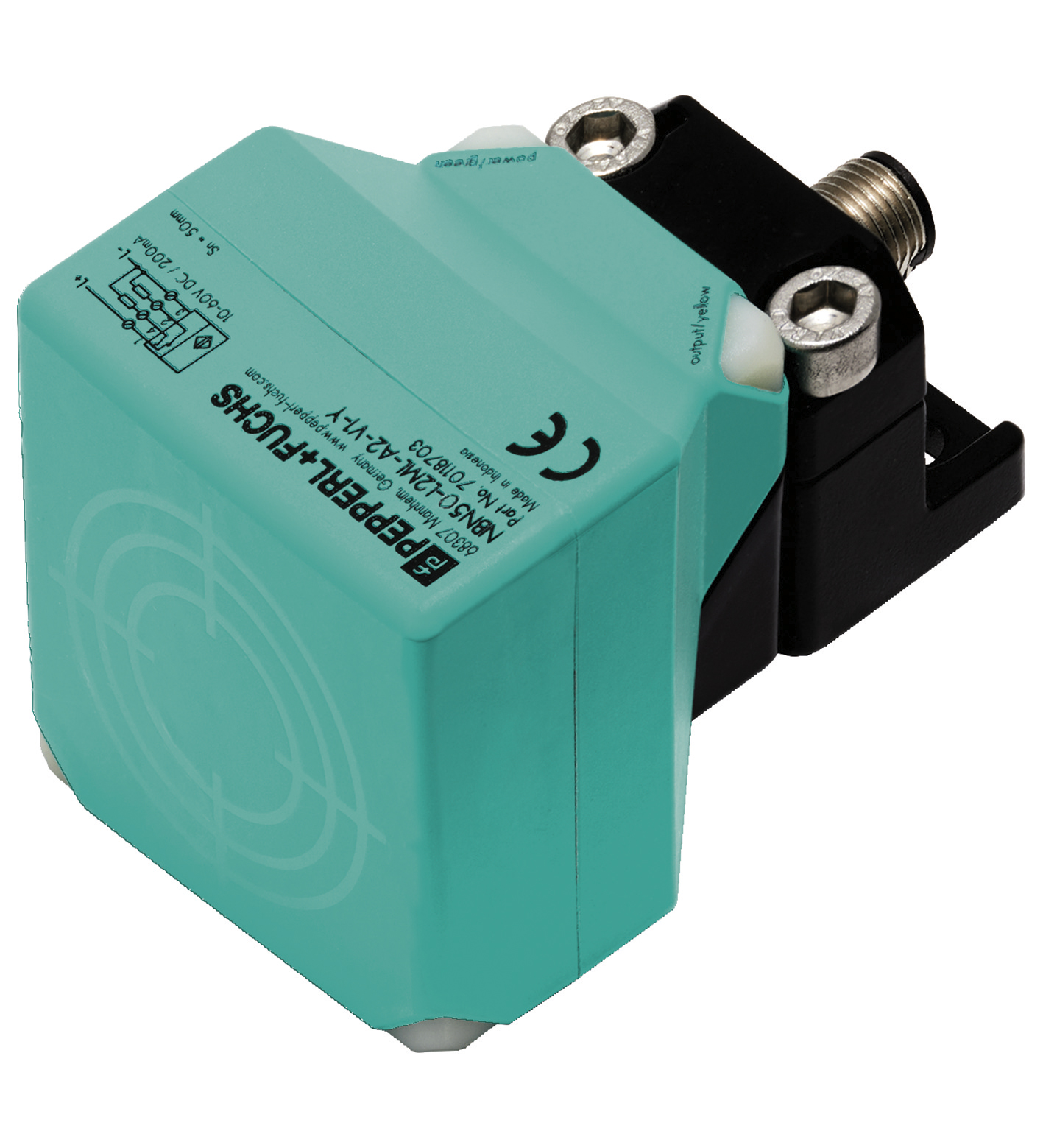

NBN50-L2ML-A2-V1-Y70118703

Inductive sensor. Switching function: complementary, Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: <i>VariKont L</i> ^®, Series: <i>...

Inductive sensor. Switching function: complementary, Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: <i>VariKont L</i> ^®, Series: <i>VariKont L</i> ^®, Operating voltage: 10 ... 60 V DC, Type of voltage: DC, Ambient temperature: -40 ... 85 °C (-40 ... 185 °F) <br>, Connection type: Connector plug, Housing material: PA, Degree of protection: IP68, Threading: M12 x 1. Switching function: complementary. Output type: PNP. Rated operating distance: 50 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 40.5 mm. Actual operating distance: 45 ... 55 mm typ.. Reduction factor rAl: 0.39. Reduction factor rCu: 0.37. Reduction factor r304: 0.75. Reduction factor rBrass: 0.45. Output type: 4-wire. Operating voltage: 10 ... 60 V DC. Switching frequency: 0 ... 100 Hz. Hysteresis: typ. 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.5 mA typ. 0.01 mA. No-load supply current: ≤ 20 mA. Time delay before availability: 120 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Housing material: PA. Sensing face: PA. Degree of protection: IP68. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Height40 mmWidth40 mmLength67 mm: . Height: 40 mm. Width: 40 mm. Length: 67 mm

Brand	Pepperl Fuchs
Lifecycle status	active
